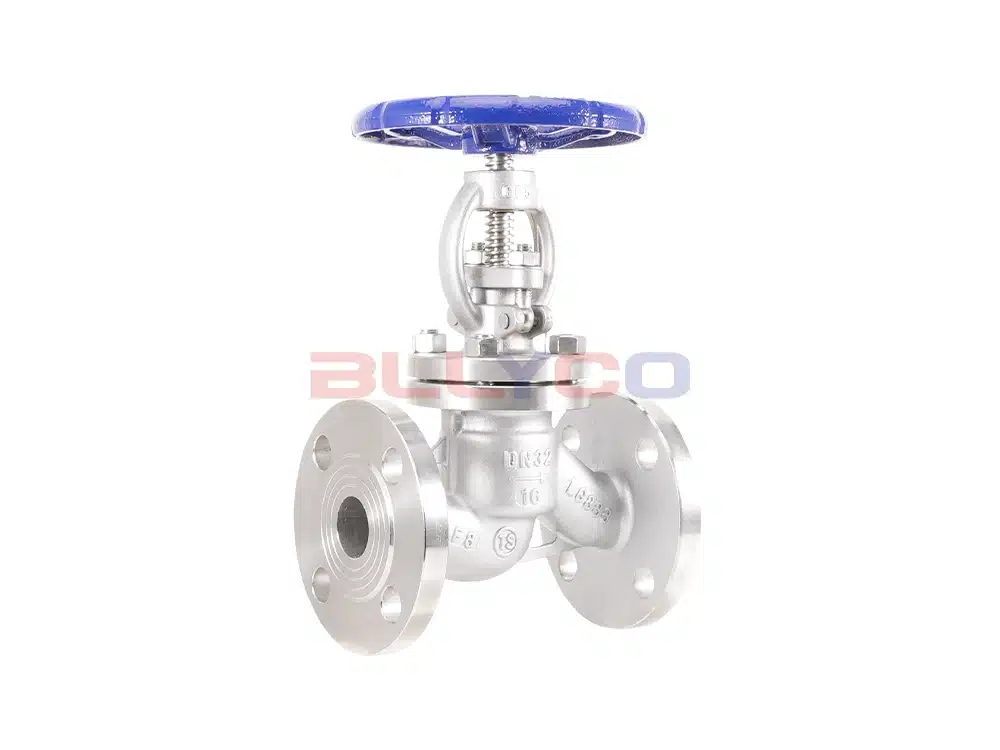

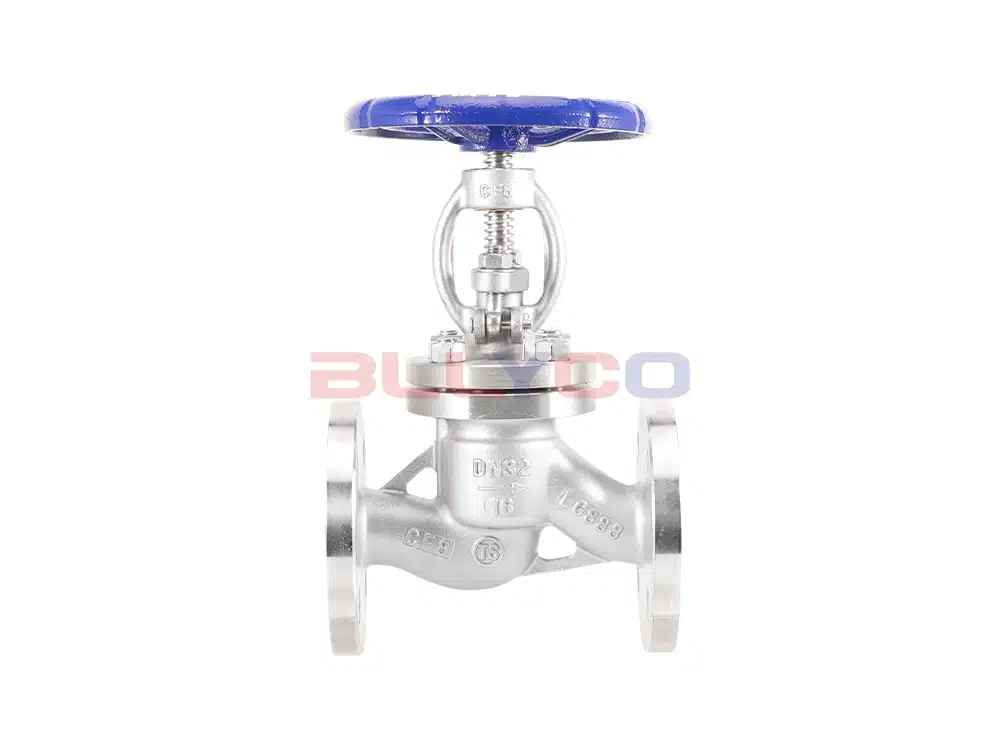

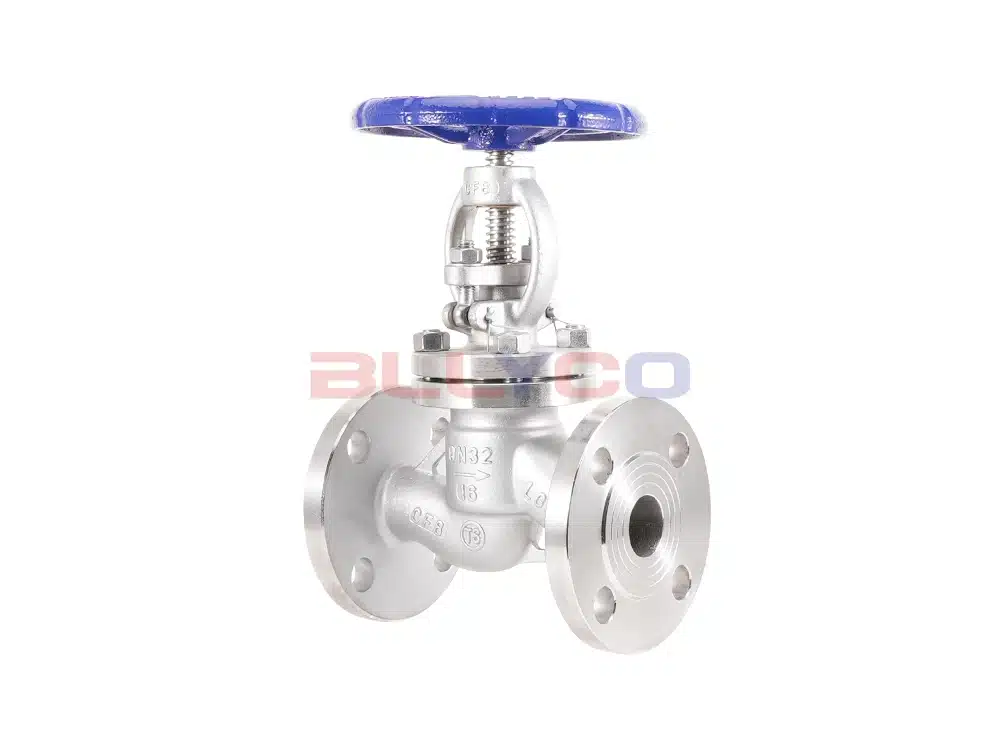

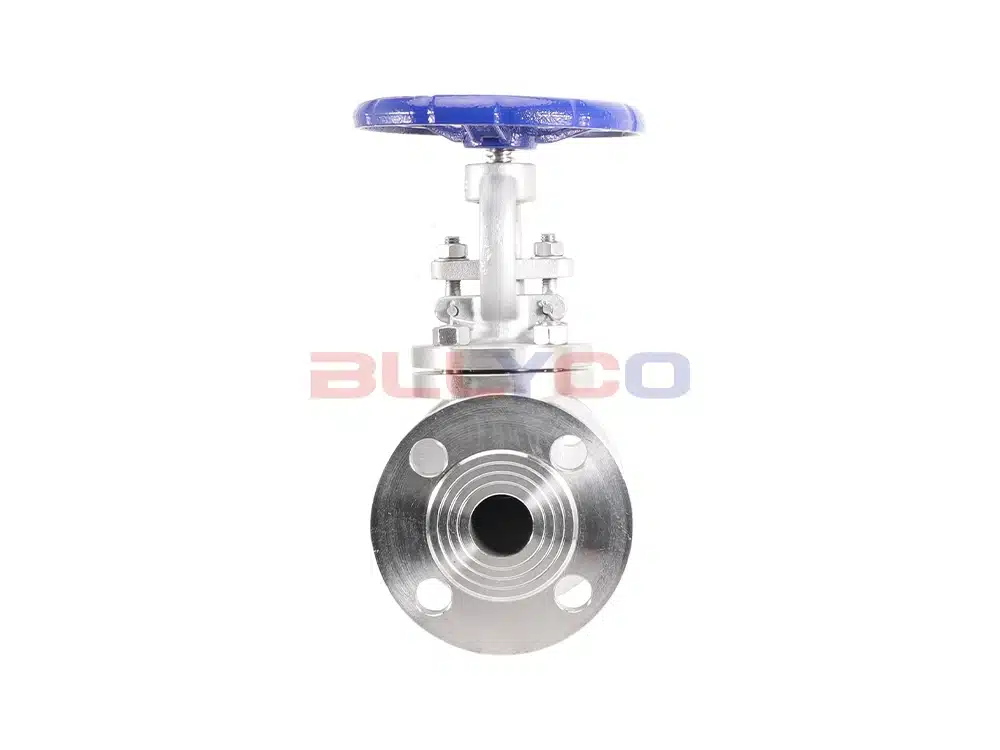

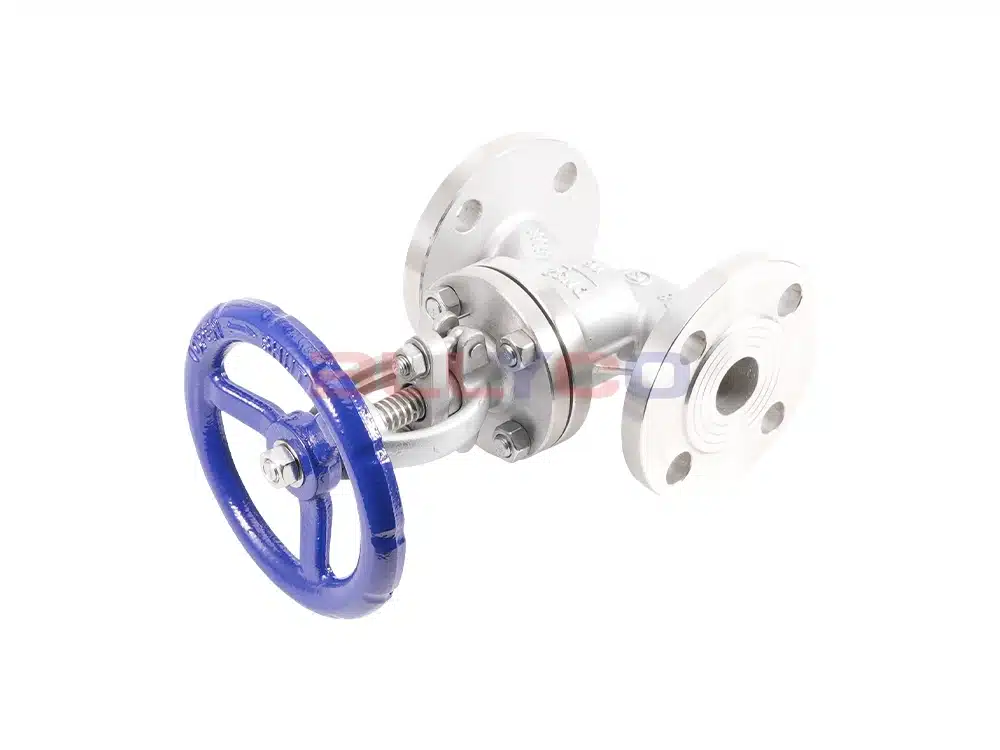

J41W-16P stainless steelFlange shut-off valvesThe opening and closing parts of the valve is a cylindrical valve flap, the sealing surface is flat or conical, the valve flap along the centerline of the fluid for linear movement.J41W-16Pstop valveOnly for full open and full closed, generally not used to adjust the flow, customized to allow for regulation and throttling.

Product Features

  • Simple structure, relatively easy to manufacture and maintain.
  • Small working stroke, short opening and closing time.
  • Good sealing, low friction between sealing surfaces, long life.

Product Parameters

产品型号

J41W-16P

阀体材质

304不锈钢

公称压力

≤1.6Mpa

适用介质

水、蒸汽、油品等

适用温度

≤150°C

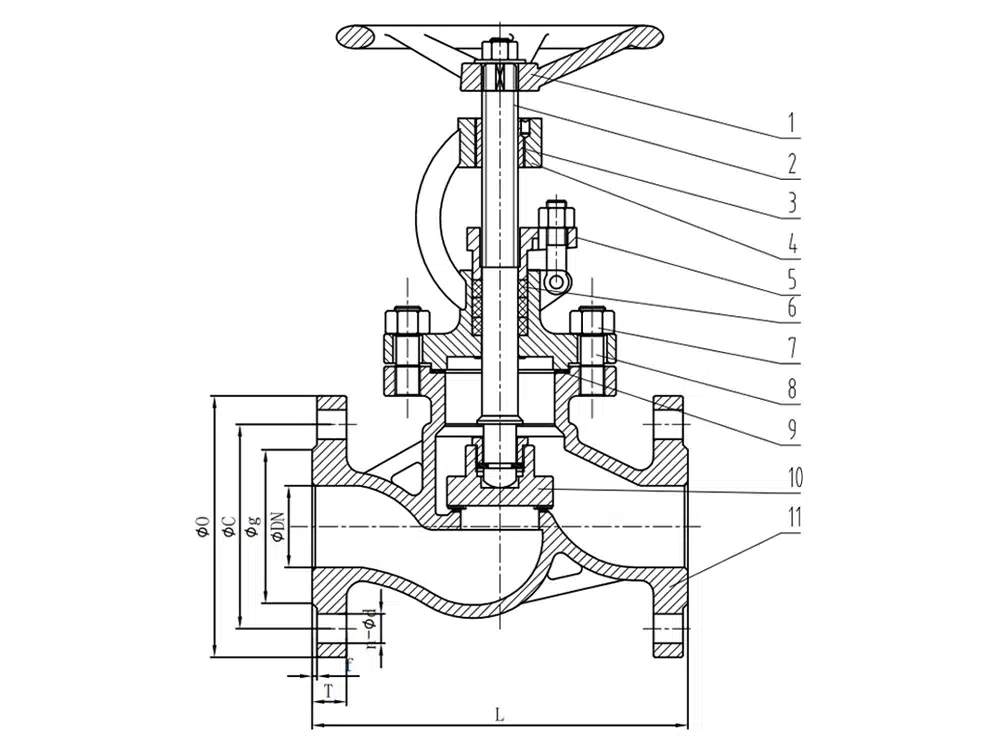

Product Size Reference

通径

L

O

C

g

T

f

n-φd

DN15

130

95

65

45

14

2

4-14

DN20

150

105

75

55

14

2

4-14

DN25

160

115

85

65

14

2

4-14

DN32

180

135

100

78

16

2

4-18

DN40

200

145

110

85

16

3

4-18

DN50

230

160

125

100

16

3

4-18

DN65

290

180

145

120

18

3

4-18

DN80

310

195

160

135

20

3

8-18

DN100

350

215

180

155

20

3

8-18

DN125

400

245

210

185

22

3

8-18

DN150

480

280

240

210

24

3

8-23

DN200

600

335

295

265

26

3

12-23

DN250

650

405

355

320

26

3

12-26

DN300

750

460

410

355

28

3

12-26
