J41X-16Q is a kind of ductile iron flanged globe valve, belongs to forced sealing type valve. When the valve is closed, pressure must be applied to the valve flap to force the sealing surface does not leak.J41X-16Q valve of the media flow is usually used in a top-down manner, so that under the medium pressure, the force to close the valve is small, while the force to open the valve is large, the diameter of the valve stem can be reduced accordingly, while this form of valve is also more tightly. Widely used in tap water, sewage, construction, petroleum, chemical, food, medicine, textile, electric power, shipping, metallurgy, energy systems and other fluid pipelines as a connection and cut-off device to use.
Product Parameters
- Simple structure, relatively easy to manufacture and maintain.
- Small working stroke, short opening and closing time.
- Good sealing, low friction between sealing surfaces, long life.
Product Parameters
Product Model | J41X-16Q |
Valve body material | Ductile Iron |
Nominal pressure | ≤1.6Mpa |
Applicable medium | Water and so on |
Applicable temperature | ≤80°C |

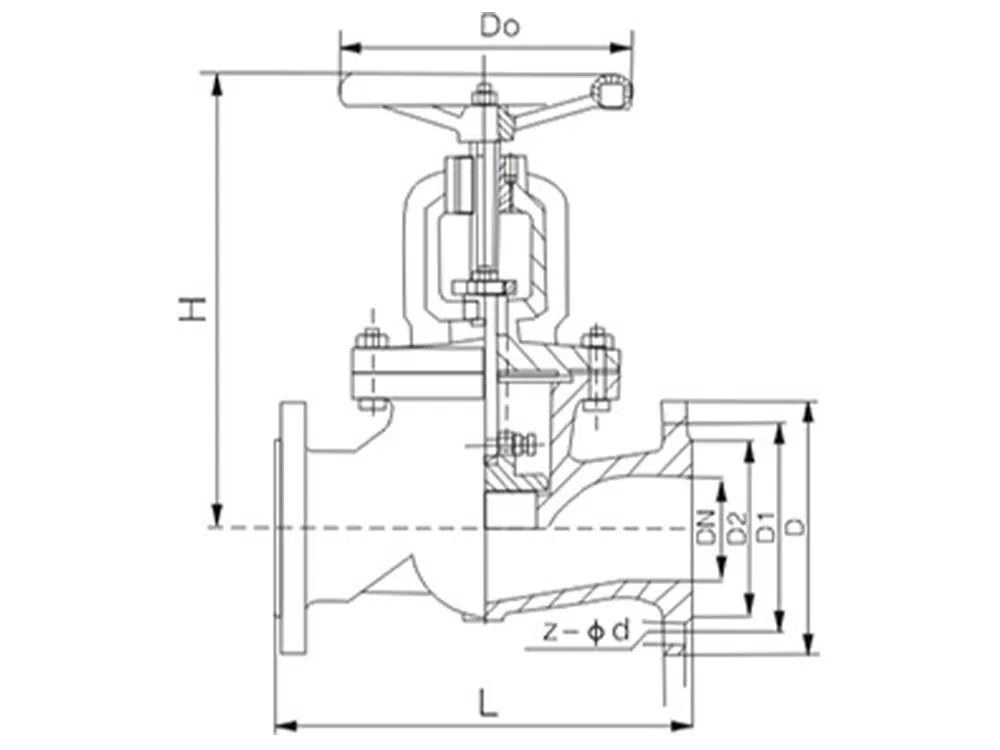

Product Size Reference
Nominal Diameter | L | D | D1 | D2 | z-Фd |
DN50 | 230 | 160 | 125 | 100 | 4-16 |
DN65 | 250 | 180 | 145 | 118 | 4-16 |
DN80 | 290 | 195 | 160 | 132 | 8-16 |
DN100 | 320 | 215 | 180 | 156 | 8-16 |
DN125 | 350 | 245 | 210 | 184 | 8-16 |
DN150 | 390 | 280 | 240 | 211 | 8-20 |
DN200 | 440 | 335 | 295 | 265 | 12-20 |
DN250 | 500 | 405 | 355 | 320 | 12-24 |
DN300 | 550 | 460 | 410 | 375 | 12-24 |
