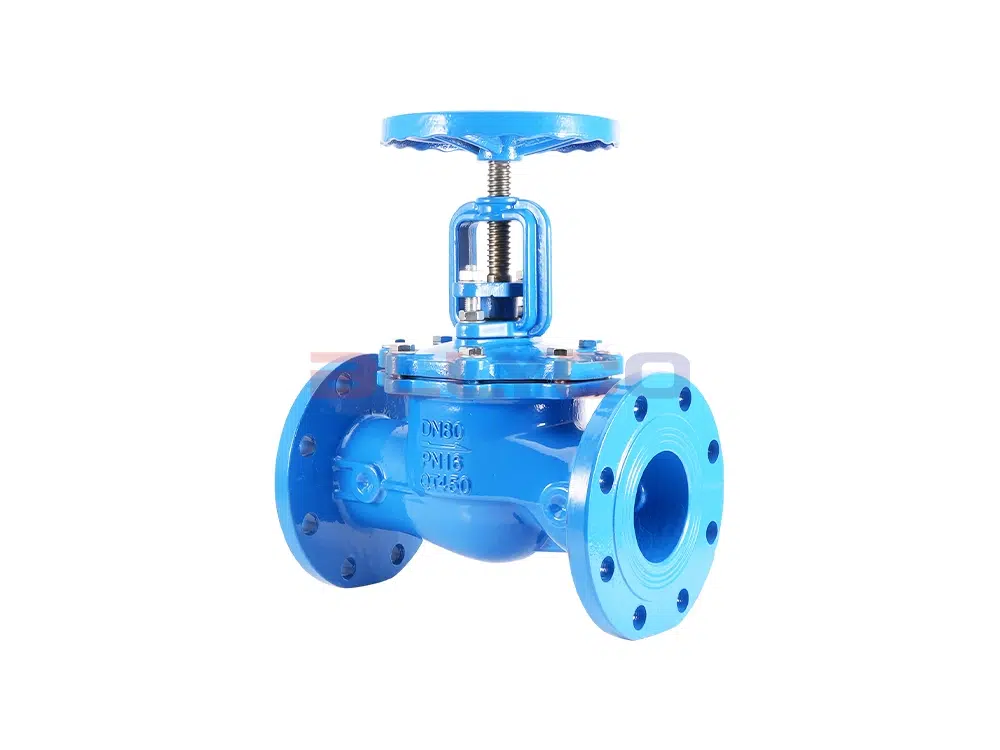

J41W-16T brass flanged globe valve is mainly used to connect or cut off the medium in the pipeline. The globe valve has the advantages of simple structure, reliable sealing and long service life. It is widely used in central air-conditioning system, HVAC system, water supply and drainage, municipal, high-rise building, chemical, metallurgy, petroleum, pharmaceutical, food, beverage, environmental protection and other fields.
Product Features
- Simple structure, relatively easy to manufacture and maintain.
- Small working stroke, short opening and closing time.
- Good sealing, low friction between sealing surfaces, long life.
Product Parameters
Product Model | J41W-16T |
Valve body material | Brass |
Nominal pressure | ≤1.6Mpa |
Applicable medium | Water, Gas, Oil, etc. |
Applicable temperature | ≤120°C |
Product Size Reference
Nominal Diameter | L | H | D | D1 | n-φd |
DN15 | 77 | 79.5 | 55 | 65 | 4-14 |
DN20 | 89 | 86.6 | 60 | 75 | 4-14 |
DN25 | 91 | 94 | 72 | 85 | 4-14 |
DN32 | 109 | 114 | 80 | 100 | 4-18 |
DN40 | 131 | 132 | 100 | 110 | 4-18 |
DN50 | 171 | 183 | 140 | 125 | 4-18 |
DN65 | 197 | 197 | 179 | 145 | 4-18 |
DN80 | 245 | 275 | 199.5 | 160 | 8-18 |
DN100 | 276 | 325 | 218 | 180 | 8-18 |
DN125 | 335 | 336 | 248 | 210 | 8-18 |
DN150 | 360 | 379 | 317 | 240 | 8-22 |
DN200 | 416 | 442 | 320 | 295 | 12-22 |
