Bronze Y-type filter is a kind of shell and screen cover and other main parts made of aluminum bronze or tin bronze material, used to remove solid impurities in the fluid pipeline accessories, its work process is when the fluid passes through the filter, the solid impurities in the liquid are subject to the resistance of the screen and the role of their own gravity and deposited on the bottom of the screen, and the clean filtrate can be passed through the screen from the outlet outflow smoothly, when the need to clean, just need to When it is necessary to clean, it is only necessary to open the flange cover to take out the screen to clean up the impurities on the screen, and then re-install it to let it continue to work, so as to ensure the normal operation of the pipeline. This product is especially suitable for the filtration of corrosive media such as seawater, sulfate and various chloride solutions.
Product Parameters
Product Model | GL11H-150LBT |
Valve body material | Bronze |
Nominal pressure | ≤150LB |
Applicable medium | Water, Gas, Oil, etc. |
Applicable temperature | ≤150°C |

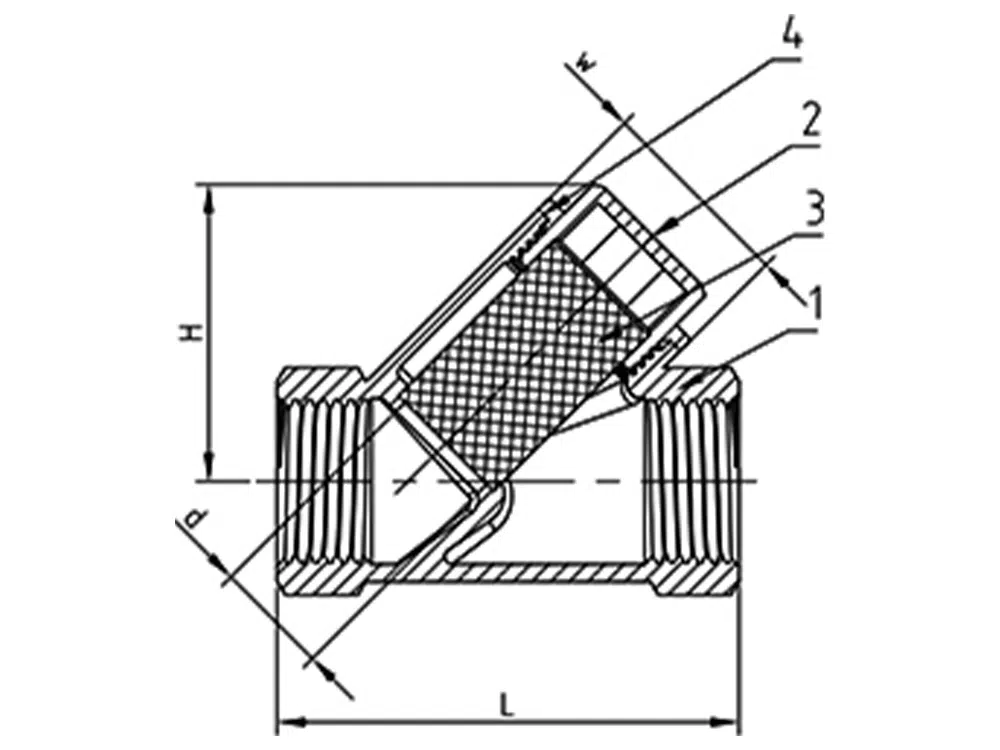

Product Size Reference
NPS | d | H | L | W |
1/2 | 15 | 38 | 60 | 26 |
3/4 | 20 | 46 | 70 | 32 |
1 | 22 | 54 | 82 | 38 |
1-1/4 | 28 | 62 | 94 | 47 |
1-1/2 | 38 | 72 | 105 | 54 |
2 | 46 | 89 | 130 | 66 |
