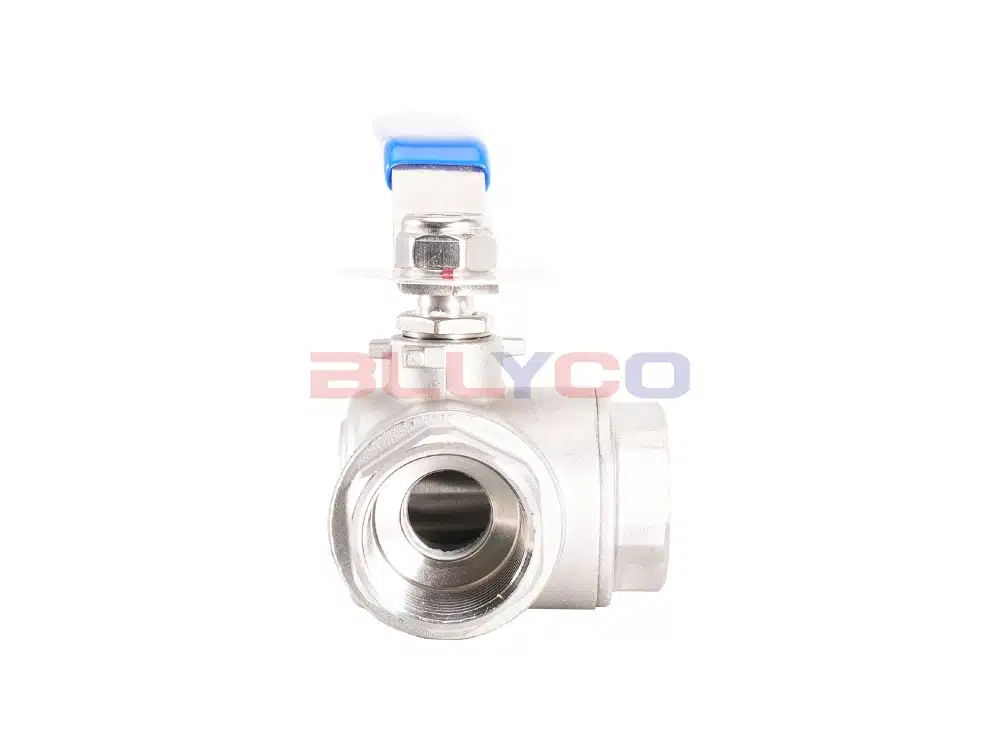

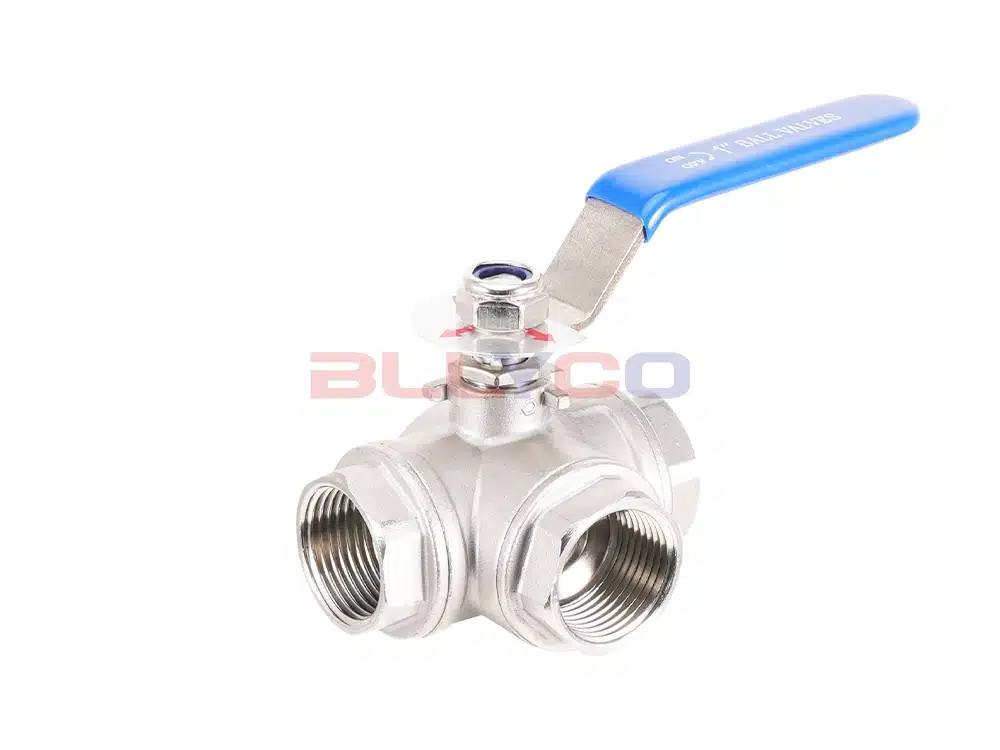

Q14F-16P stainless steel two-piece three-way ball valve adopts L-type three-way structure, which mainly plays the role of direction change and distribution in pipeline. The valve body, ball and other major parts of this product are made of high quality stainless steel, sealing PTFE PTFE soft seal structure, with corrosion and rust resistance, good sealing performance, lightweight opening and closing and other advantages. Widely used in petroleum, chemical industry, metallurgy, electric power, urban construction and other fields, such as transportation of petroleum, natural gas, chemicals, steam and other high temperature, high pressure fluids, as well as control of various fluids and urban water supply, drainage and so on.
Product Features
- Fluid resistance is small, and its resistance coefficient is equal to that of a pipe section of the same length.
- Simple structure, small size and light weight.
- Tight and reliable, the current ball valve sealing surface materials are widely used in plastic, good sealing, in the vacuum system has also been widely used.
- Easy to operate, open and close quickly, from full open to full close just rotate, easy to control from a distance.
- Convenient maintenance, the ball valve structure is simple, the seal ring is generally movable, disassembly and replacement are more convenient.
Product Parameters
Product Model | Q14F-16P |
Valve Body Material | 304 Stainless Steel |
Forms of Circulation | L-Type |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Operating Temperature | ≤120°C |

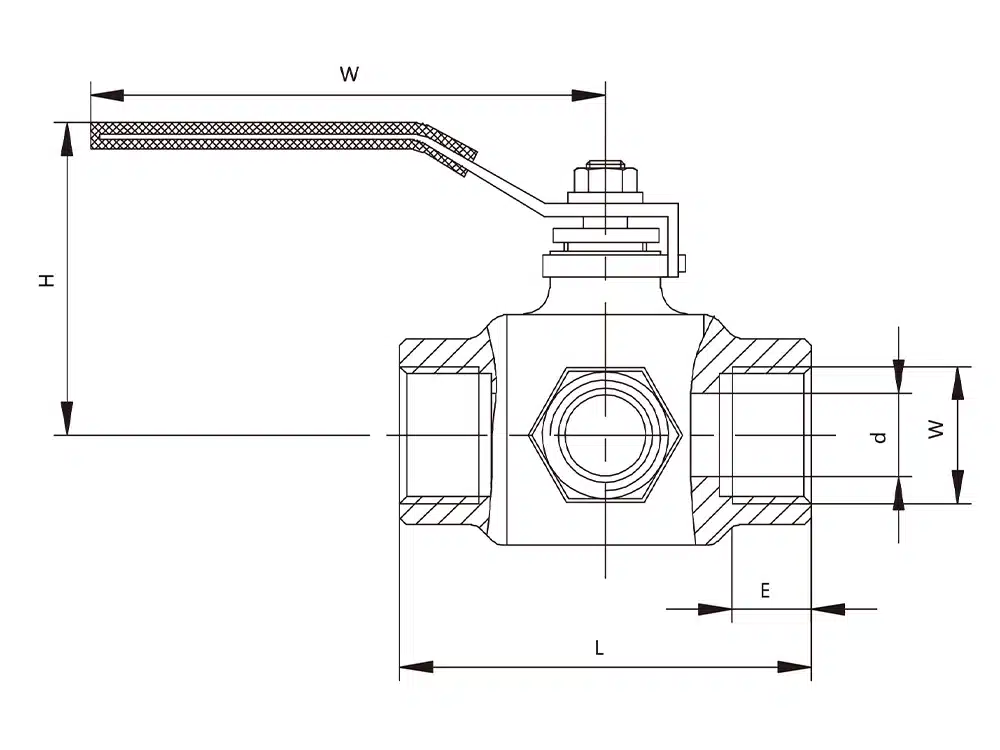

Product Size Reference
Nominal Diameter | G | L | d | H | W |
DN8 | 1/4 | 68 | 10.5 | 58 | 110 |
DN10 | 3/8 | 68 | 12 | 58 | 110 |
DN15 | 1/2 | 68 | 12 | 58 | 110 |
DN20 | 3/4 | 79 | 15 | 60 | 130 |
DN25 | 1 | 86 | 20 | 70 | 140 |
DN32 | 1-1/4 | 112 | 25 | 82 | 155 |
DN40 | 1-1/2 | 130 | 32 | 95 | 175 |
DN50 | 2 | 140 | 38 | 100 | 175 |
