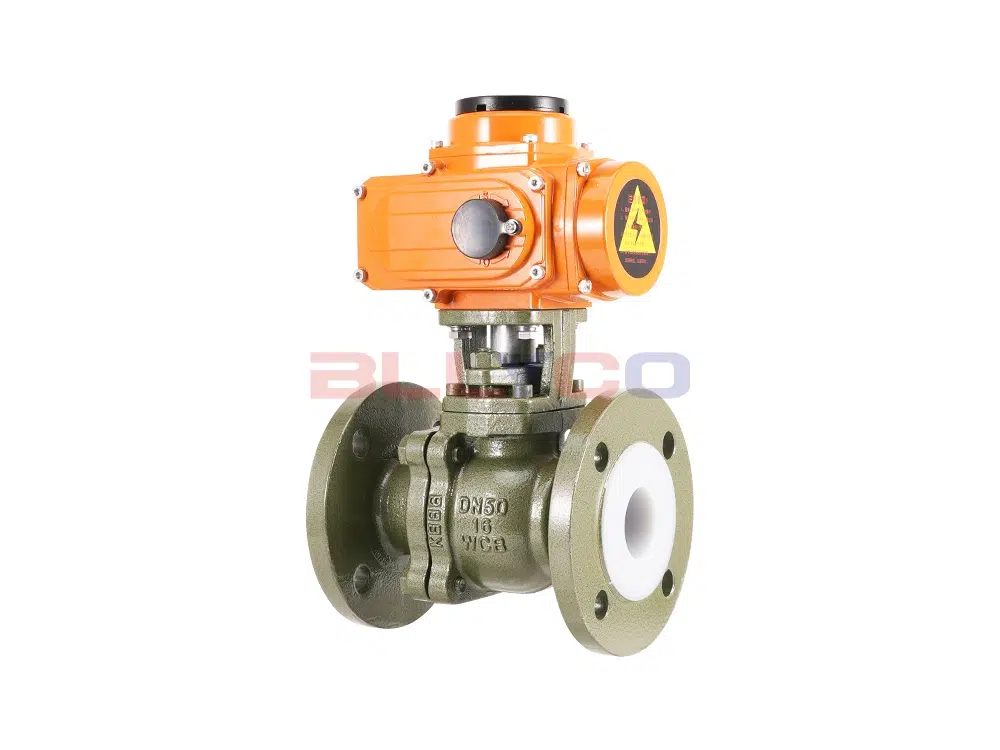

Cast Steel Electric Actuated Fluorinated Lined Flanged Ball Valve Q941F46-16C

Q941F46-16C Electric Fluorine Lined Flanged Ball ValveIt is a kind of 90°rotating ball valve with excellent sealing performance, large flow capacity, small flow resistance coefficient, simple structure, convenient maintenance and long service life. The inner cavity of the ball valve and the ball are lined with corrosion-resistant, ageing-resistant polyperfluoroethylene propylene (F46) by high-pressure injection molding process, so it has reliable corrosion resistance and sealing. Widely used in chemical industry, petroleum, metallurgy, medicine and other industrial sectors, to achieve the production process of acid, alkali and other strong corrosive media regulation or cut off, the use of water treatment process control in the effect is obvious.

Product Characteristics

• Ball valves with FEP lining exhibit exceptional chemical stability, making them suitable for any highly corrosive substance except molten alkali metals and elemental fluorine.
• Featuring a full-bore, floating ball design, the valve achieves leak-free closure across the entire pressure range, facilitating ball-passing line cleaning and pipeline maintenance.
• The ball component and valve stem are cast (or forged) as a single unit, eliminating the possibility of the valve stem being forced out of the pressure-bearing component due to pressure changes. This fundamentally ensures operational safety in engineering applications.
• The compact and rational structure minimizes internal cavity space within the valve body, reducing media retention. Additionally, the specialized molding process ensures excellent sealing surface density. Combined with the V-shaped PTFE packing configuration, this achieves zero leakage in the valve.

Product Parameters

Product Size Reference
