US series steam solenoid valve is a device to regulate the flow of steam through electromagnetic control, widely used in industrial automation control system. Its main function is to automatically open or close the valve after receiving the electric control signal, to realize the control of the fluid medium in the pipeline on and off or flow regulation, so as to automatically adjust the temperature, flow, pressure and other parameters of the system or remote control. Steam solenoid valve with rapid opening and closing, stable performance, easy to use and other advantages. Widely used in dyeing and chemical, textile, printing and dyeing, food, medicine, cigarettes, cement products, petrochemical, metallurgy and other sectors of the automatic control system.
Product Parameters
Product Model | US Series |
Valve body material | Brass |
Forms of control | Normally Open/Normally Closed |
Selectable Voltage | AC220V/DC24V/DC12V |
connection method | Female Thread |
Nominal pressure | ≤1.6Mpa |
Applicable medium | Water, Steam, Oil, etc. |
Applicable temperature | ≤180°C |

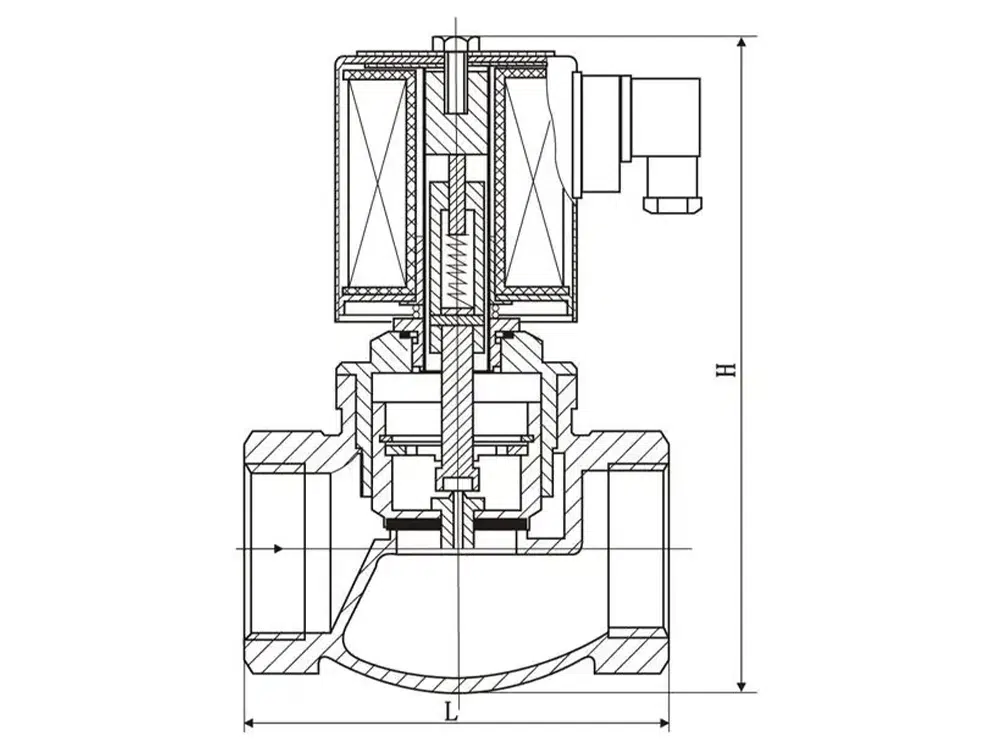

Product Size Reference
model number | Nominal Diameter | L | H |
US-15 | DN15 | 82 | 147 |
US-20 | DN20 | 84.2 | 147 |
US-25 | DN25 | 93 | 155 |
US-32 | DN32 | 109 | 170 |
US-40 | DN40 | 112 | 172 |
US-50 | DN50 | 118.5 | 189 |
