ZQDF series steam solenoid valve is a device to regulate the flow of steam through electromagnetic control, widely used in industrial automation control system. Its main function is to automatically open or close the valve after receiving the electric control signal, to realize the pipeline fluid medium on and off or flow regulation and control, so that the temperature, flow, pressure and other parameters of the system for automatic adjustment or remote control. Steam solenoid valve with rapid opening and closing, stable performance, easy to use and other advantages. Widely used in dyeing and chemical, textile, printing and dyeing, food, medicine, cigarettes, cement products, petrochemical, metallurgy and other sectors of the automatic control system.
Product Parameters
Product Model | ZQDF Series |
Valve body material | 304 Stainless Steel |
Forms of control | Normally Open/Normally Closed |
Selectable Voltage | AC220V/DC24V/DC12V |
connection method | Female Thread |
Nominal pressure | ≤1.6Mpa |
Applicable medium | Water, Steam, Oil, etc. |
Applicable temperature | ≤180°C |

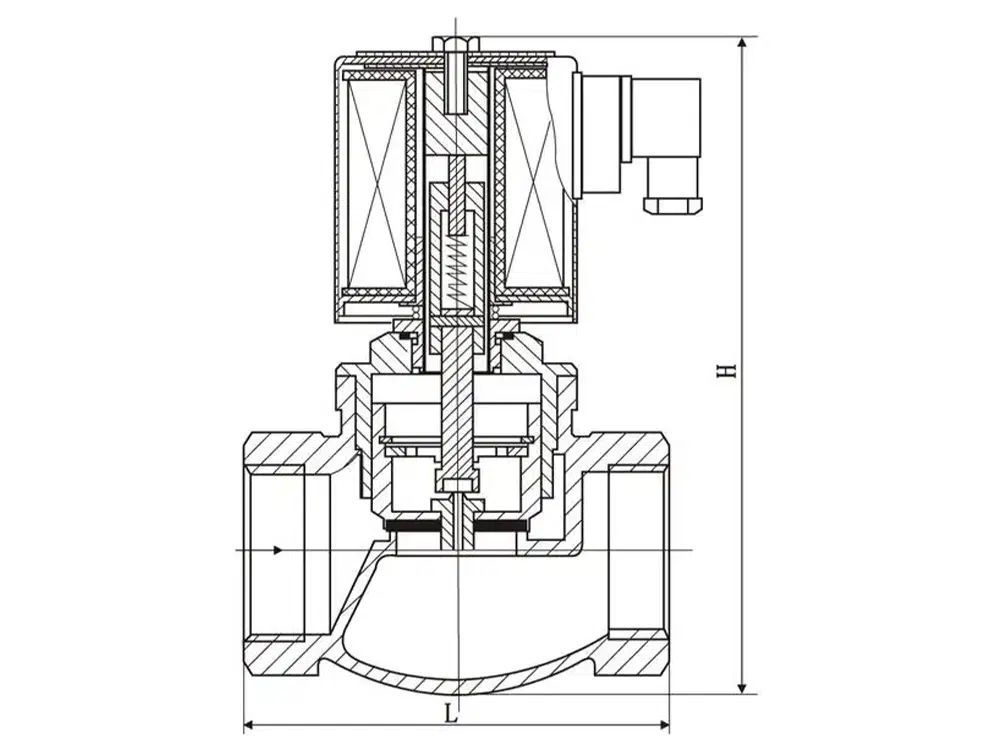

Product Size Reference
model number | Nominal Diameter | inch (unit of length equal 2.54 cm.) | L | H |
ZQDF-15 | DN15 | 1/2 | 77 | 138 |
ZQDF-20 | DN20 | 3/4 | 80 | 139 |
ZQDF-25 | DN25 | 1 | 86 | 146 |
ZQDF-32 | DN32 | 1-1/4 | 96 | 158 |
ZQDF-40 | DN40 | 1-1/2 | 101 | 161 |
ZQDF-50 | DN50 | 2 | 113 | 178 |
