Z15X-16P flexible seat soft seal gate valve is widely used in water, sewage, construction, petroleum, chemical, food, medicine, textile, electric power, ship, metallurgy, energy system and other fluid pipeline as a regulating and intercepting device.
Product Features
- Flat-bottomed seat for no dirt buildup.
- Nitrile rubber covered valve flap as a whole.
- The valve body stem is made of 304 stainless steel, which can be used in sewage system to adapt to the more severe working environment.
- Small size and light weight for easy installation and maintenance.
- The valve stem is sealed with three O-rings, which greatly reduces the friction resistance during switching.
Product Parameters
Product Model | Z15X-16P |
Valve body material | 304 Stainless Steel |
Valve material | 304 Stainless Steel + NBR |
Nominal pressure | ≤1.6Mpa |
Applicable medium | Water and so on |
Applicable temperature | ≤80°C |

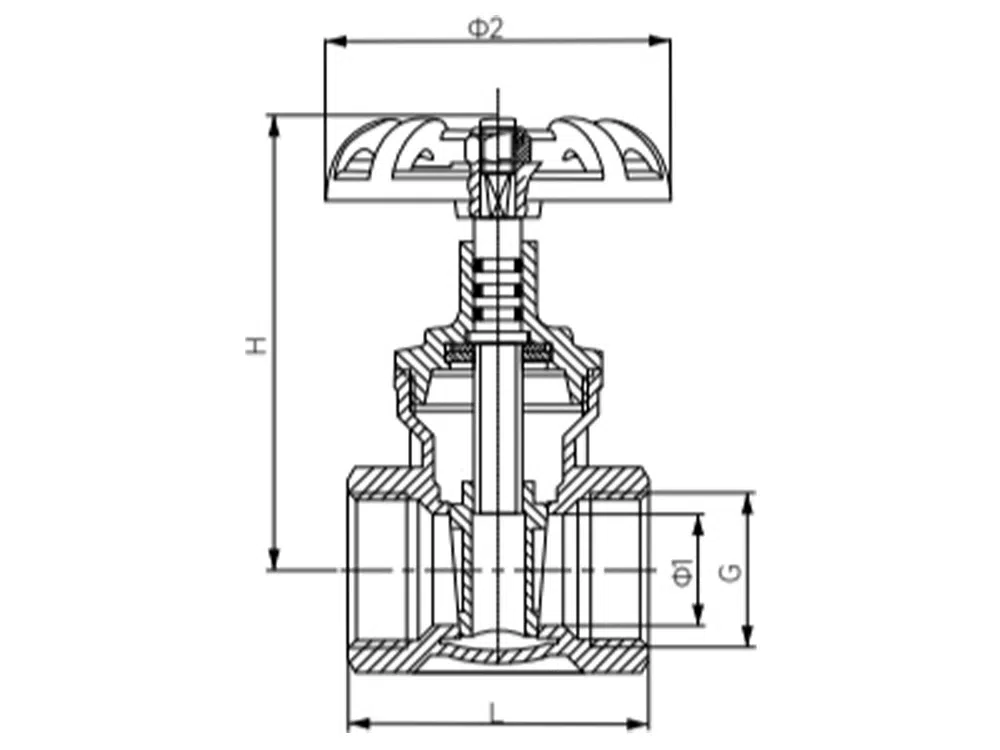

Product Size Reference
Nominal Diameter | G | L | Ф1 | Ф2 | H |
DN15 | 1/2 | 44 | 73 | 14 | 53 |
DN20 | 3/4 | 48 | 77 | 19 | 58 |
DN25 | 1 | 54 | 86 | 24 | 65 |
DN32 | 1-1/4 | 57 | 105 | 30 | 74 |
DN40 | 1-1/2 | 62 | 115 | 35 | 79 |
DN50 | 2 | 69 | 140 | 45 | 90 |
