Z45X-16P stainless steel soft seal concealed rod gate valve is widely used in water, sewage, construction, petroleum, chemical, food, medicine, textile, electric power, shipping, metallurgy, energy systems and other fluid pipelines as a regulating and intercepting device.
Product Features
- Flat-bottomed seat for no dirt buildup.
- Nitrile rubber covered valve flap as a whole.
- The inner parts of the valve are made of stainless steel, which can be used in wastewater systems to adapt to the harsher working environment.
- Small size and light weight for easy installation and maintenance.
- The valve stem is sealed with three O-rings, which greatly reduces the friction resistance during switching.
Product Parameters
Product Model | Z45X-16P |
Valve body material | 304 Stainless Steel |
Valve material | 304 Stainless Steel + NBR |
Nominal pressure | ≤1.6Mpa |
Applicable medium | Water and so on |
Applicable temperature | ≤80°C |

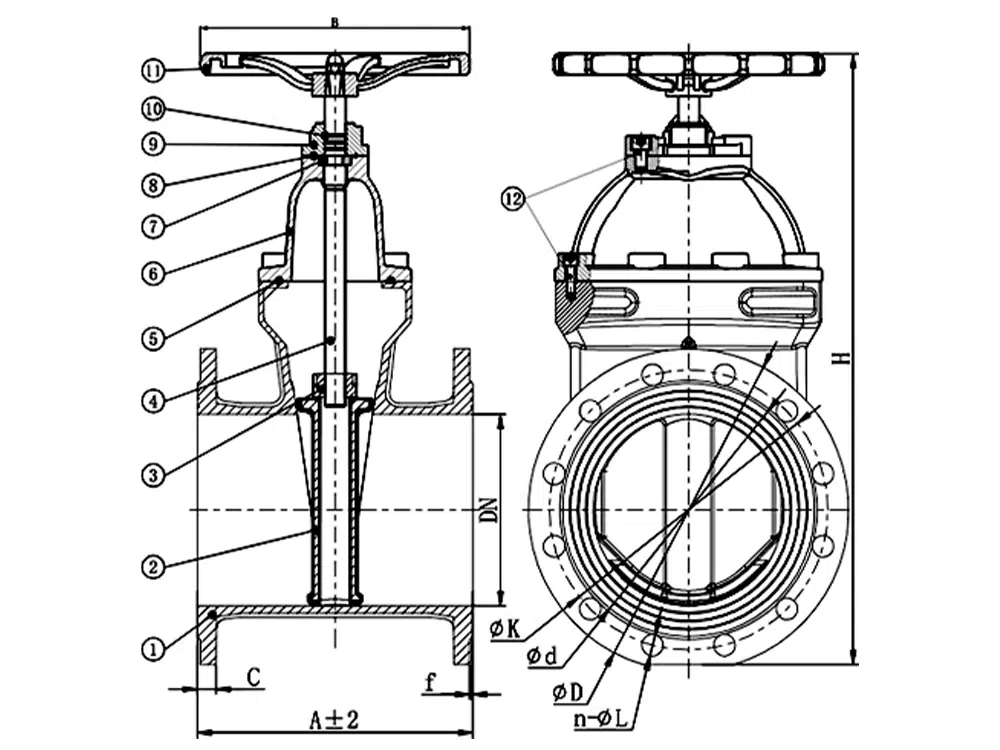

Product Size Reference
Nominal Diameter | A | C | f | Φd | ΦD | ΦK | n-ΦL | H | B |
DN50 | 178 | 15 | 2 | 99 | 153 | 125 | 4-19 | 300 | 180 |
DN65 | 190 | 15 | 2 | 118 | 172 | 145 | 4-19 | 330 | 180 |
DN80 | 203 | 17 | 2 | 132 | 188 | 160 | 8-19 | 365 | 215 |
DN100 | 229 | 19 | 2 | 156 | 211 | 180 | 8-19 | 420 | 215 |
DN125 | 254 | 19 | 2 | 184 | 238 | 210 | 8-19 | 475 | 285 |
DN150 | 267 | 20 | 2 | 211 | 276 | 240 | 8-23 | 550 | 285 |
DN200 | 292 | 21 | 2 | 266 | 330 | 295 | 12-23 | 660 | 330 |
DN250 | 330 | 22 | 2 | 319 | 395 | 355 | 12-28 | 770 | 380 |
DN300 | 356 | 24 | 2 | 370 | 452 | 410 | 12-28 | 910 | 380 |
DN400 | 406 | 24 | 2 | 480 | 565 | 525 | 16-31 | 940 | 420 |
