Q85F-10P sanitary three-way ball valve adopts T-type three-way structure, which mainly plays the role of merging and diverting in pipeline. The sealing ring is fully closed, no space and dead space, and the sealing member is made of PTFE material with good sealing property. The three ends are connected by clamps for easy disassembly, cleaning and maintenance. Widely used in coal chemical industry, petrochemical industry, rubber, papermaking, pharmaceutical and other fields.
Product Features
- Use of fluid resistance is small, its resistance coefficient is equal to the same length of the pipe section.
- Simple structure, small size and light weight.
- The sealing material uses PTFE, which has good sealing performance.
- Three ends are clamped for easy disassembly, cleaning and maintenance.
Product Parameters
Product Model | Q85F-10P |
Valve body material | 304 Stainless Steel |
Forms of circulation | T-Type |
Nominal pressure | ≤1.0Mpa |
Applicable medium | Water, Gas, Oil, etc. |
Applicable temperature | ≤120°C |

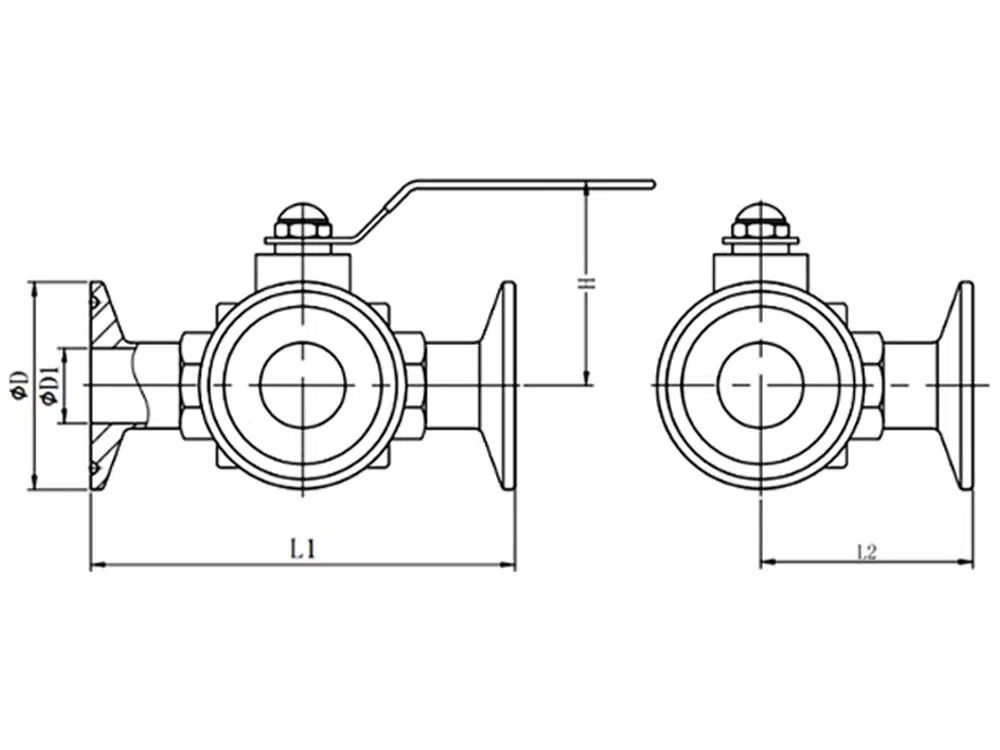

Product Size Reference
outer diameter | D | D1 | L1 | L2 | H |
Ф19 | 50.5 | 16 | 106 | 60 | 58 |
Ф25 | 50.5 | 22.4 | 126 | 61 | 62 |
Ф32 | 50.5 | 28.8 | 137 | 68 | 71 |
Ф38 | 50.5 | 35.1 | 154.5 | 76.2 | 81 |
Ф45 | 64 | 41.7 | 165.5 | 81 | 90 |
Ф51 | 64 | 47.8 | 168 | 83.4 | 90 |
Ф57 | 77.5 | 53 | 171 | 86 | 103 |
Ф63 | 77.5 | 59.5 | 185 | 94.5 | 103 |
Ф76 | 91 | 72.2 | 220 | 122 | 110 |
Ф89 | 106 | 85 | 240 | 134.5 | 118 |
Ф102 | 119 | 97.6 | 266 | 151 | 130 |

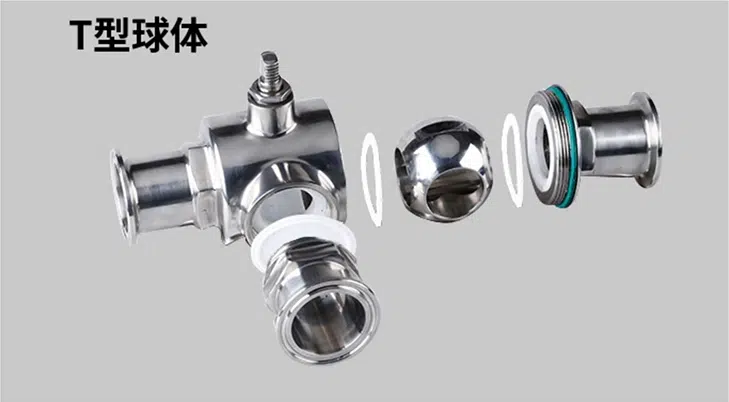

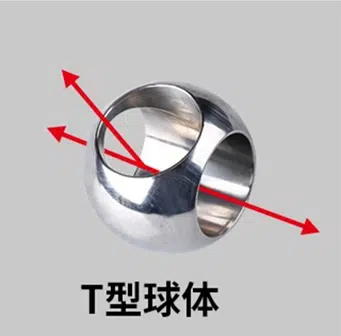

T-Type and L-Type Spheres
Installation Diagram
