Q84F-10PSanitary three-way ball valveAdopting L-type tee structure, it mainly plays the role of direction change and distribution on the pipeline. The sealing ring is fully closed, no space and dead space, the sealing member adopts PTFE material, good sealing. The three ends are connected by clamps for easy disassembly, cleaning and maintenance. Widely used in coal chemical industry, petrochemical industry, rubber, papermaking, pharmaceutical and other fields.
Product Features
- Use of fluid resistance is small, its resistance coefficient is equal to the same length of the pipe section.
- Simple structure, small size and light weight.
- The sealing material uses PTFE, which has good sealing performance.
- Three ends are clamped for easy disassembly, cleaning and maintenance.
Product Parameters
Product Model | Q84F-10P |
Valve body material | 304 stainless steel |
Forms of Circulation | L-shaped |
Nominal Pressure | ≤1.0Mpa |
Applicable Media | Water, gas, oil products, etc. |
Operating Temperature | ≤120°C |

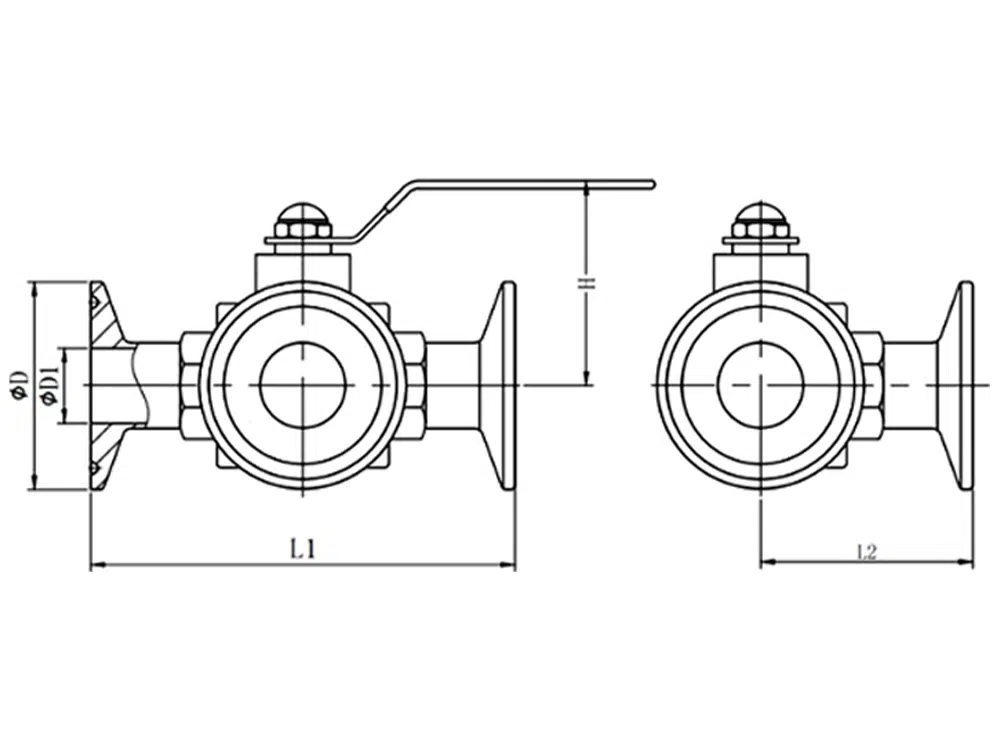

Product Size Reference
Tube Outer Diameter | D | D1 | L1 | L2 | H |
Ф19 | 50.5 | 16 | 106 | 60 | 58 |
Ф25 | 50.5 | 22.4 | 126 | 61 | 62 |
Ф32 | 50.5 | 28.8 | 137 | 68 | 71 |
Ф38 | 50.5 | 35.1 | 154.5 | 76.2 | 81 |
Ф45 | 64 | 41.7 | 165.5 | 81 | 90 |
Ф51 | 64 | 47.8 | 168 | 83.4 | 90 |
Ф57 | 77.5 | 53 | 171 | 86 | 103 |
Ф63 | 77.5 | 59.5 | 185 | 94.5 | 103 |
Ф76 | 91 | 72.2 | 220 | 122 | 110 |
Ф89 | 106 | 85 | 240 | 134.5 | 118 |
Ф102 | 119 | 97.6 | 266 | 151 | 130 |

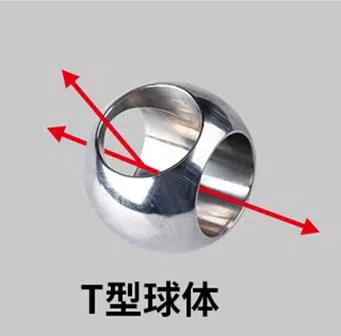

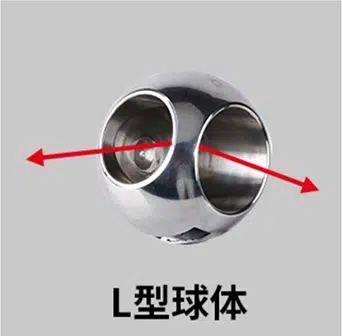

T- and L-shaped spheres
Installation Diagram
