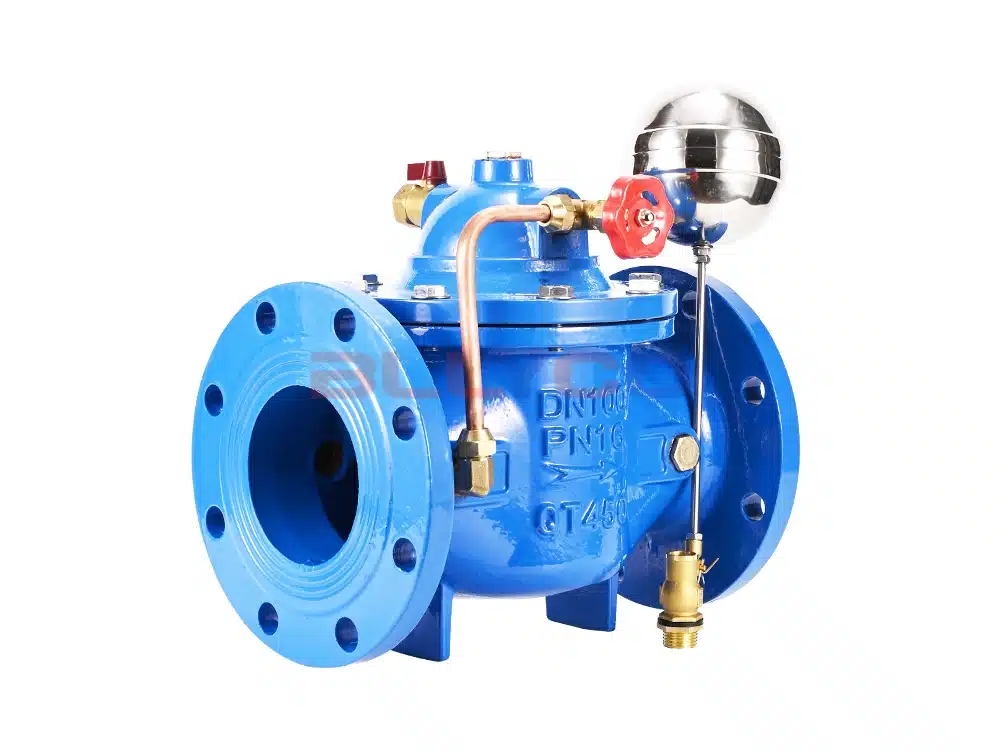

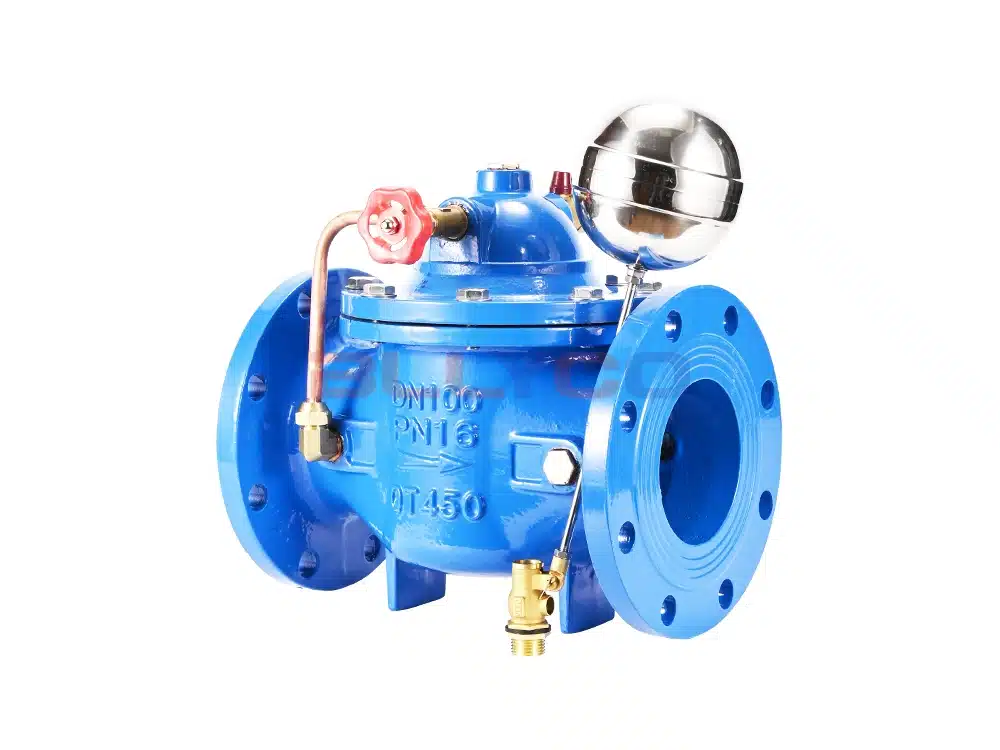

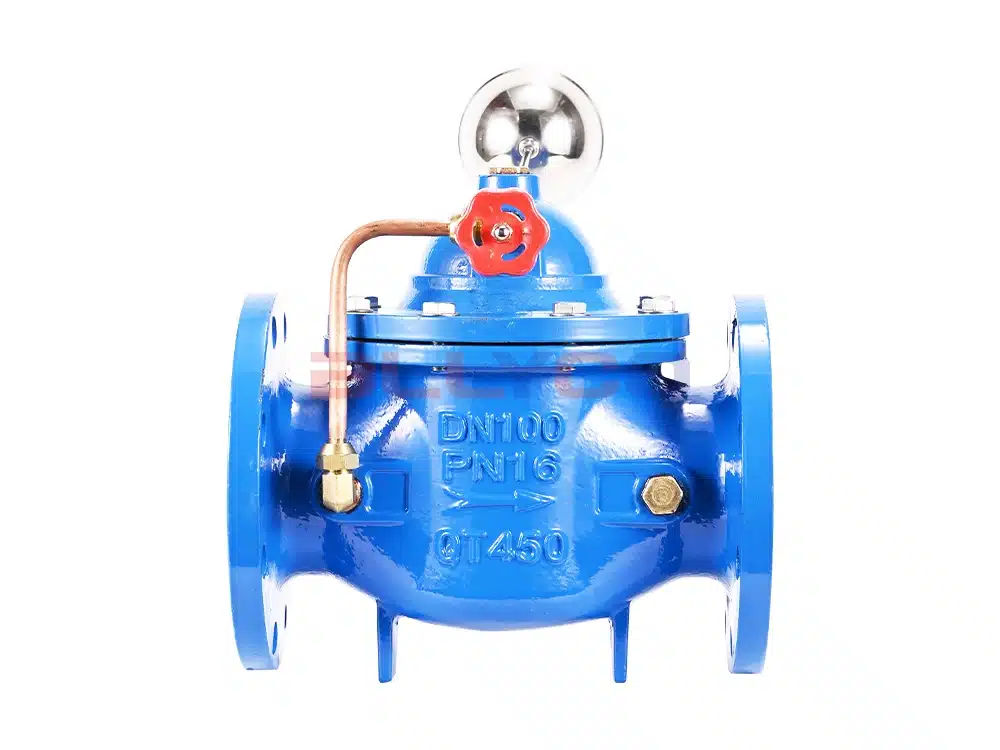

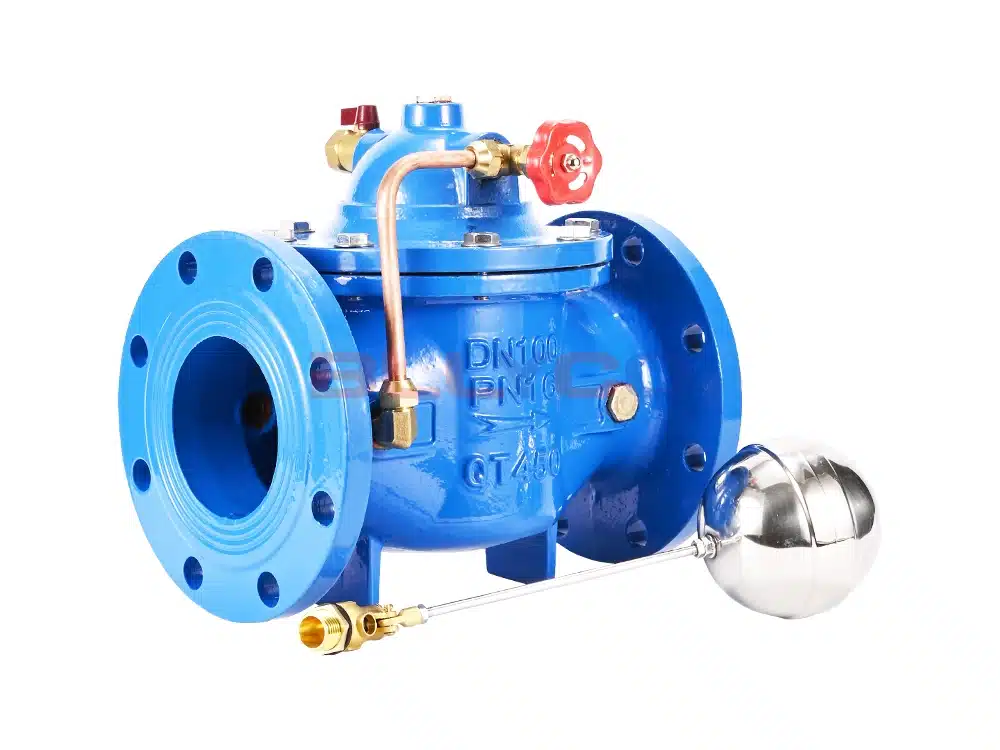

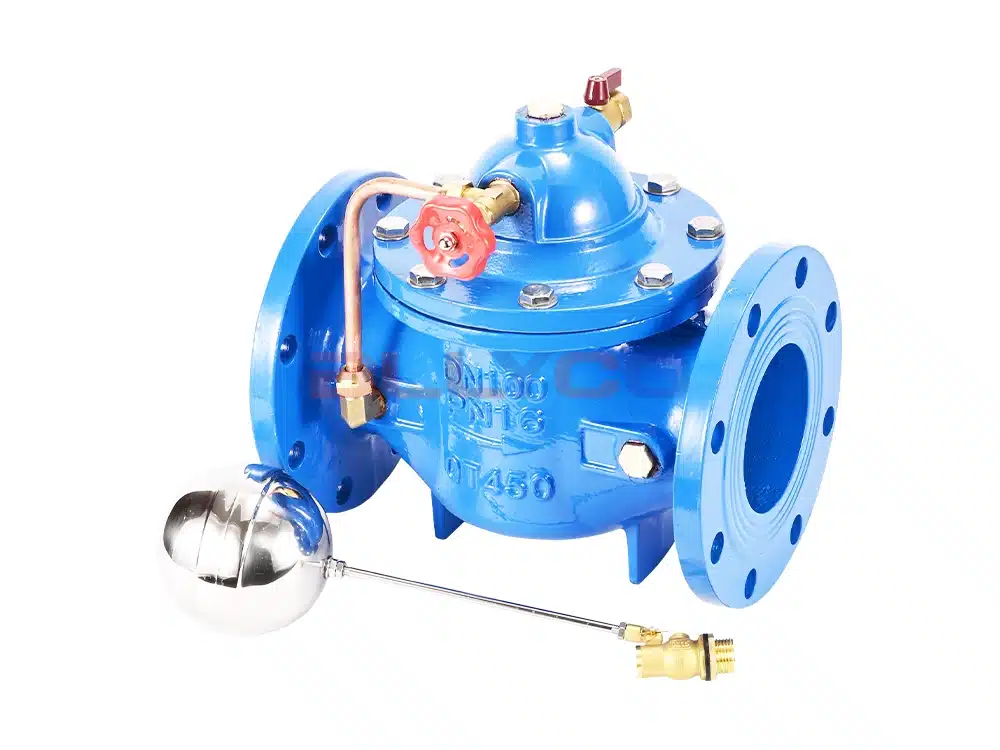

Ductile iron remote control floating ball valve 100X-16Q

100X Remote Control Float Valveby the main valve,needle valve,ball valvesFloat Valve, Miniaturefilteretc. Composed of hydraulic control receiver system, adjusted, automatic control of liquid level height. 100X remote control float valve can be used directly to control the liquid level, without other devices and energy, easy maintenance, high accuracy of liquid level control, not affected by water pressure, reliable sealing. Widely used in high-rise buildings, living quarters and other water supply network system of water towers, pools and other facilities of the liquid level control.

Working Principle

When the pipeline from the inlet end of the water supply, because the needle valve, ball valve, float valve is normally open, the water through the micro-filter, needle valve, control room, ball valve, float valve into the pool, at this time the control room does not form pressure, the main valve opens, the water tower (pool) water supply. When the water surface of the water tower (pool) rises to the set height, the float floats to close the float valve, the water pressure in the control room rises, pushing the main valve to close and the water supply stops. When the water surface falls, the float valve re-opens, the water pressure in the control room falls, and the main valve opens again to continue the water supply, maintaining the set height of the liquid level.

Product Parameters

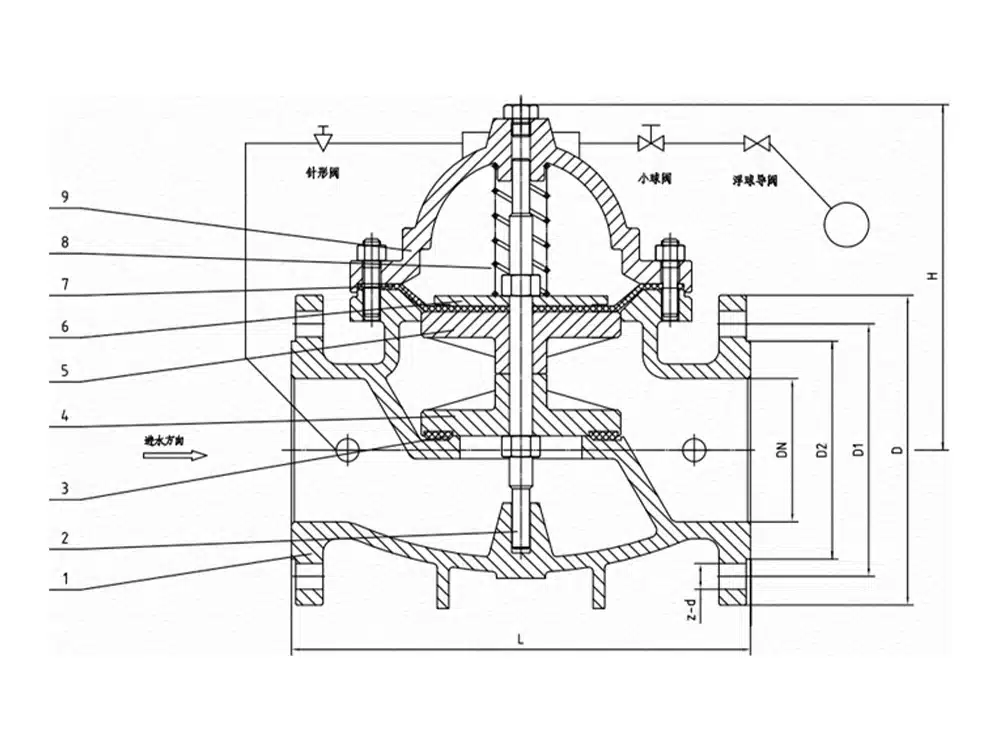

Product Size Reference
