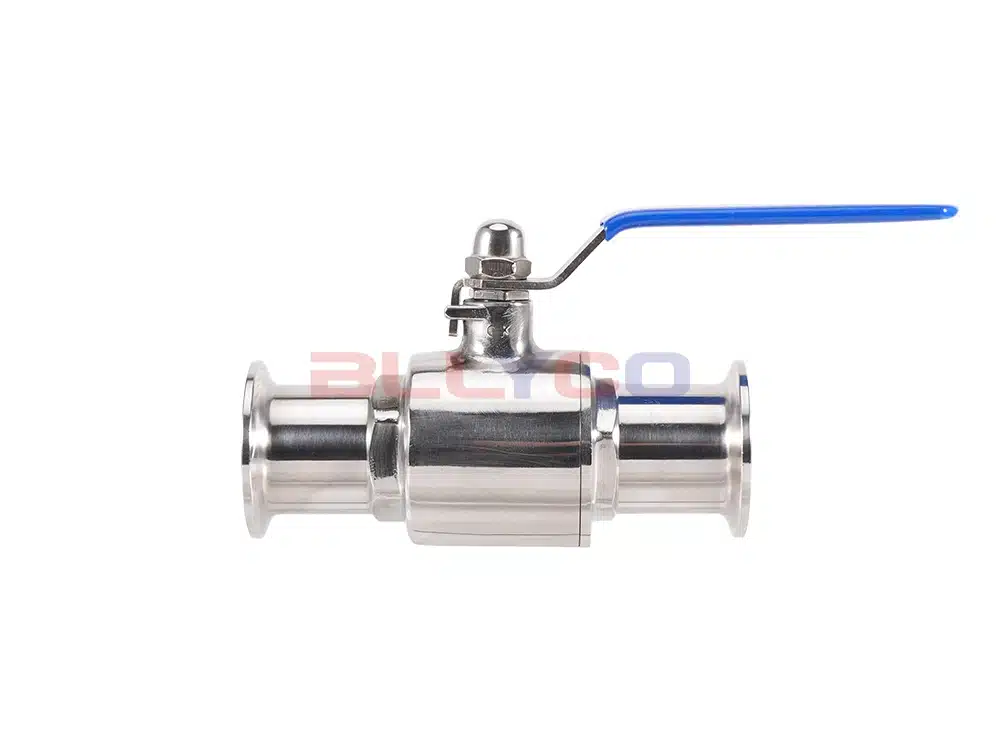

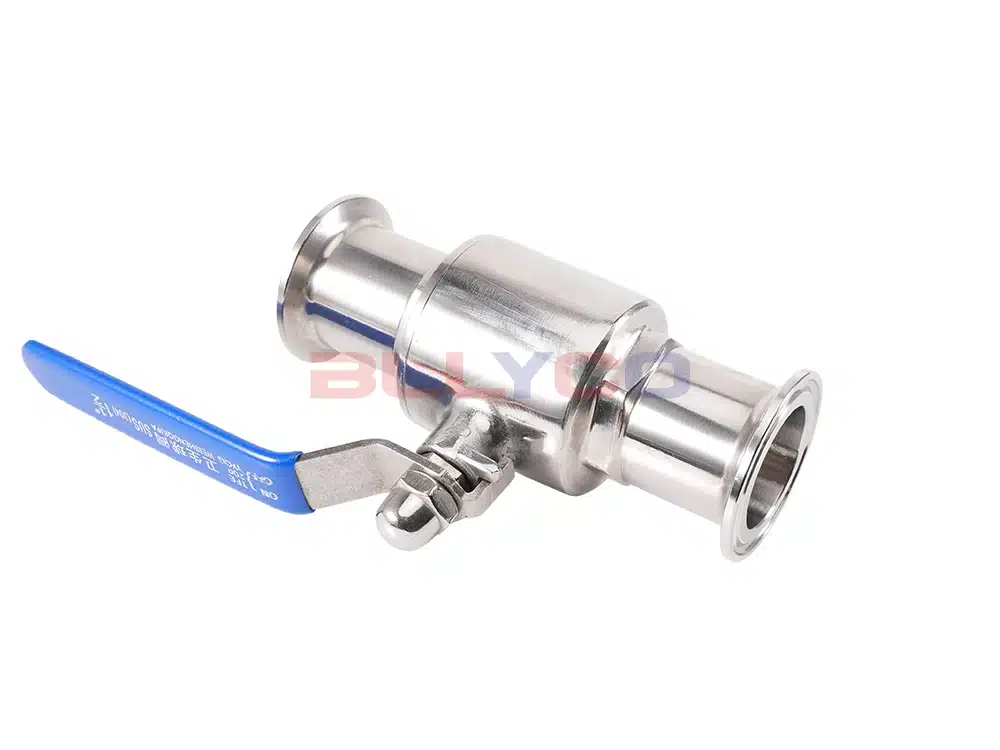

Q81F-10P quick release sanitary ball valve is a kind of ball valve widely used in food, pharmaceutical, chemical and other industries. It is characterized by simple structure, easy operation, good sealing, etc. It is an important equipment to ensure the sanitary requirements of industrial production.
Product Features
- The clamp connection is easy to dismantle and install, and is suitable for working conditions where frequent cleaning is required.
- Easy to install, can be installed in any direction in any part of the pipeline.
- The channels in the valve body are flat and smooth, and can transport viscous fluids, slurries, and solid particles.
- As PTFE and other materials have good self-lubrication, and the ball of the friction loss is small, so the service life of the ball valve is long.
Product Parameters
Product Model | Q81F-10P |
Valve Body Material | 304 Stainless Steel |
Nominal Pressure | ≤1.0Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Operating Temperature | ≤120°C |

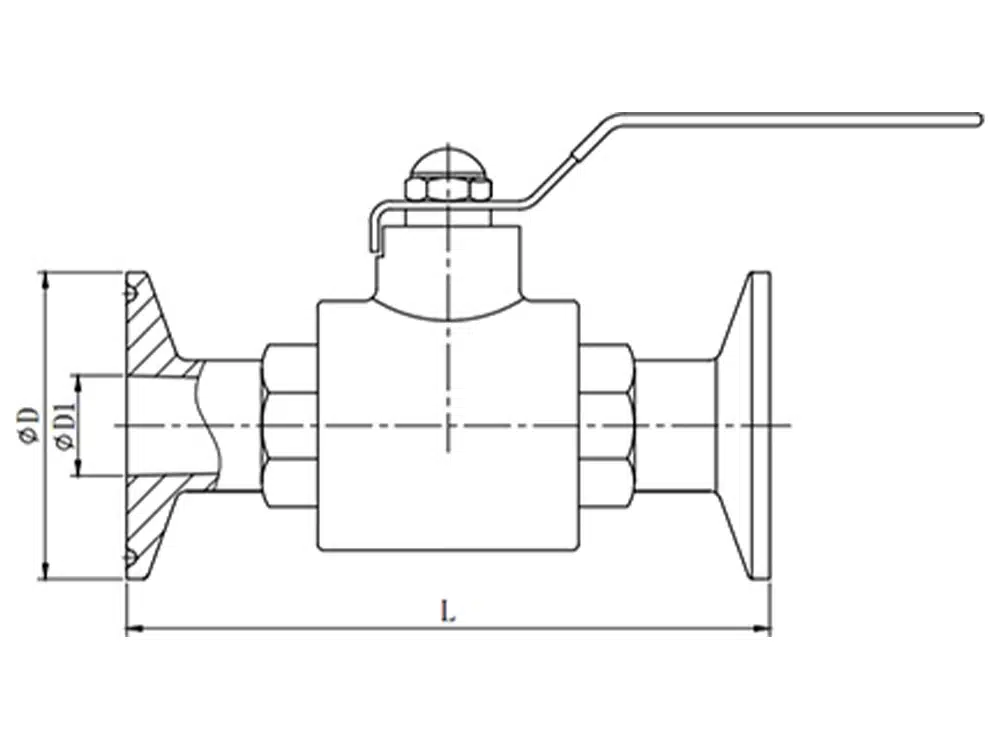

Product Size Reference
Tube Outer Diameter | D | D1 | L |
φ19 | 50.5 | 16.5 | 105 |
φ25 | 50.5 | 22 | 117 |
φ32 | 50.5 | 28.5 | 124 |
φ38 | 50.5 | 35 | 140 |
φ45 | 64 | 41 | 150 |
φ51 | 64 | 47.5 | 158 |
φ57 | 77.5 | 52 | 165 |
φ63 | 77.5 | 58.2 | 176 |
φ76 | 91 | 72 | 200 |
φ89 | 106 | 84.8 | 240 |
φ102 | 119 | 98.3 | 260 |
φ108 | 119 | 129 | 270 |
