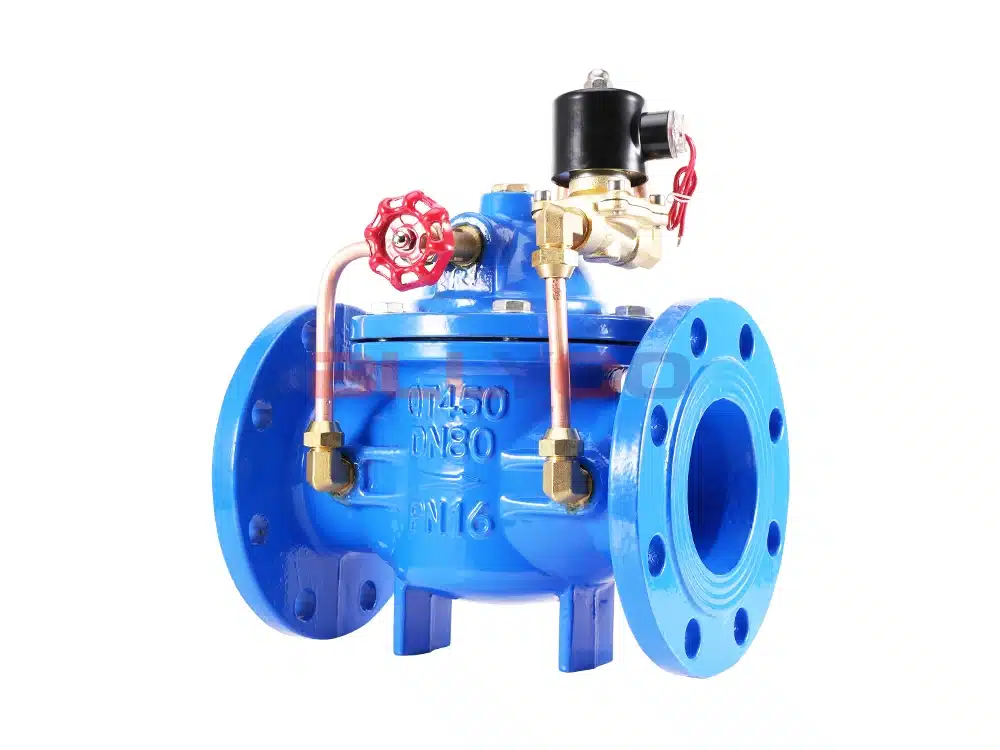

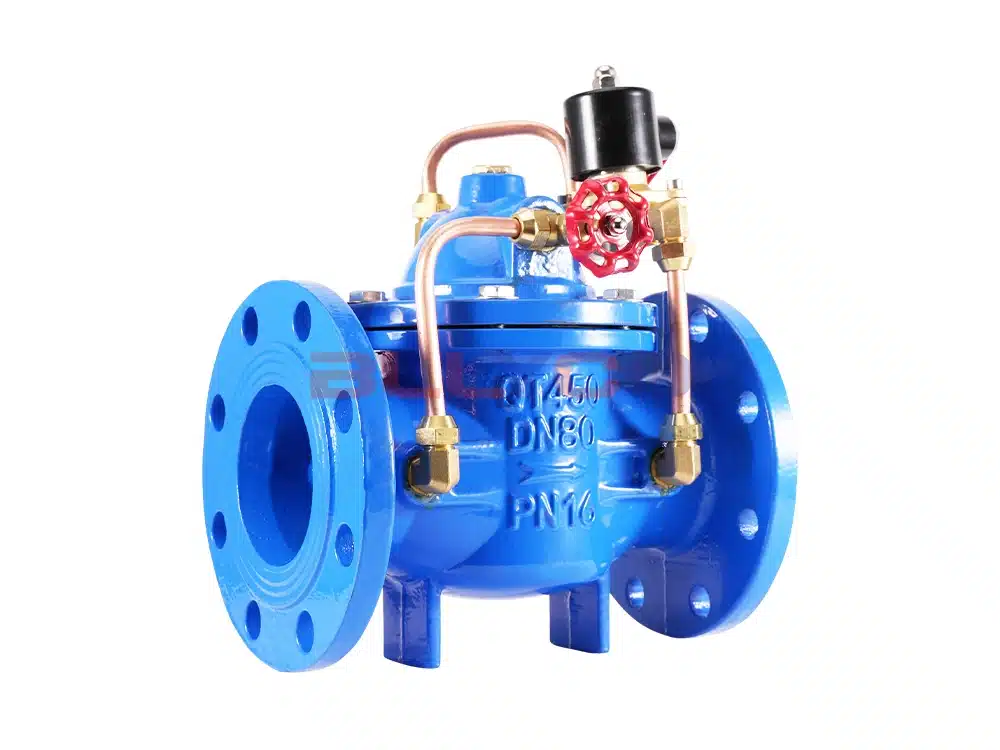

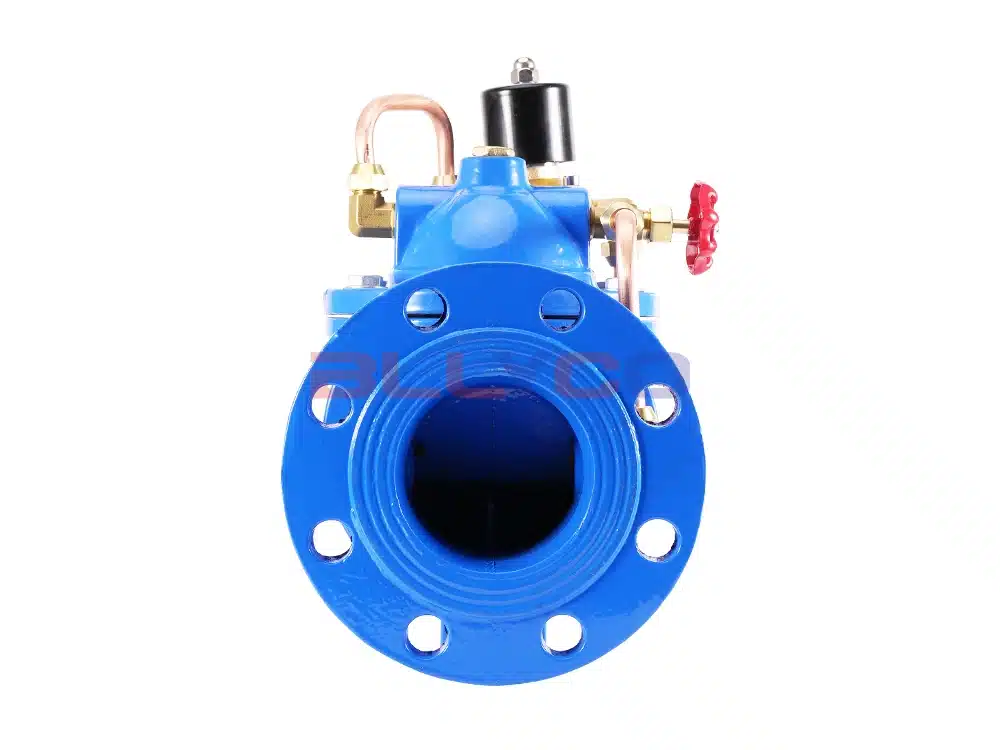

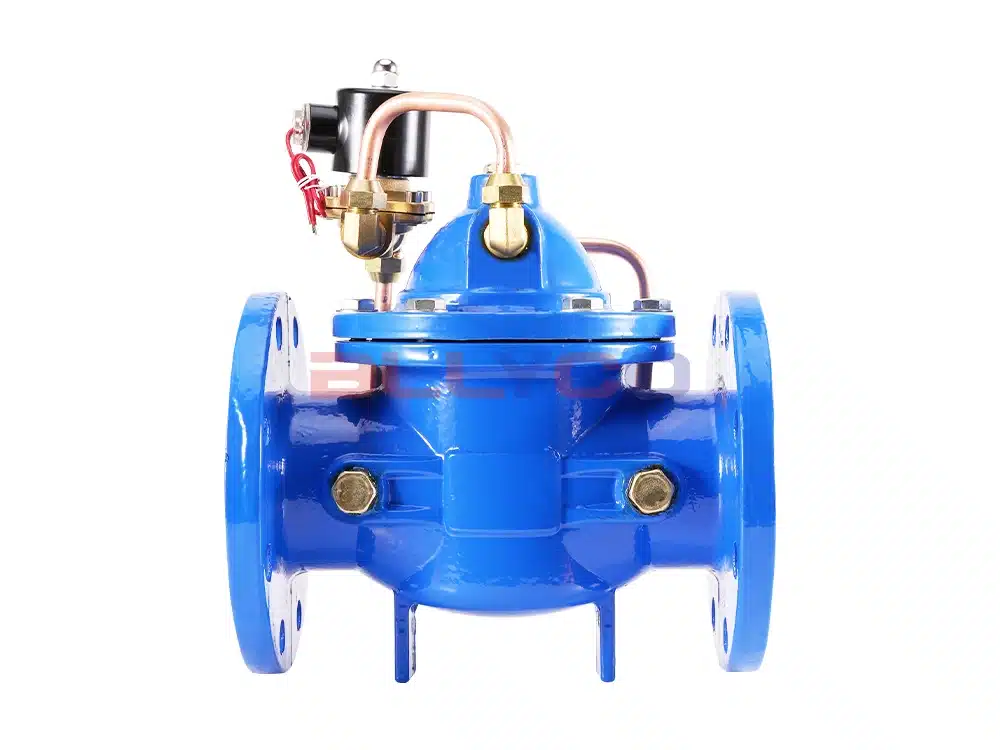

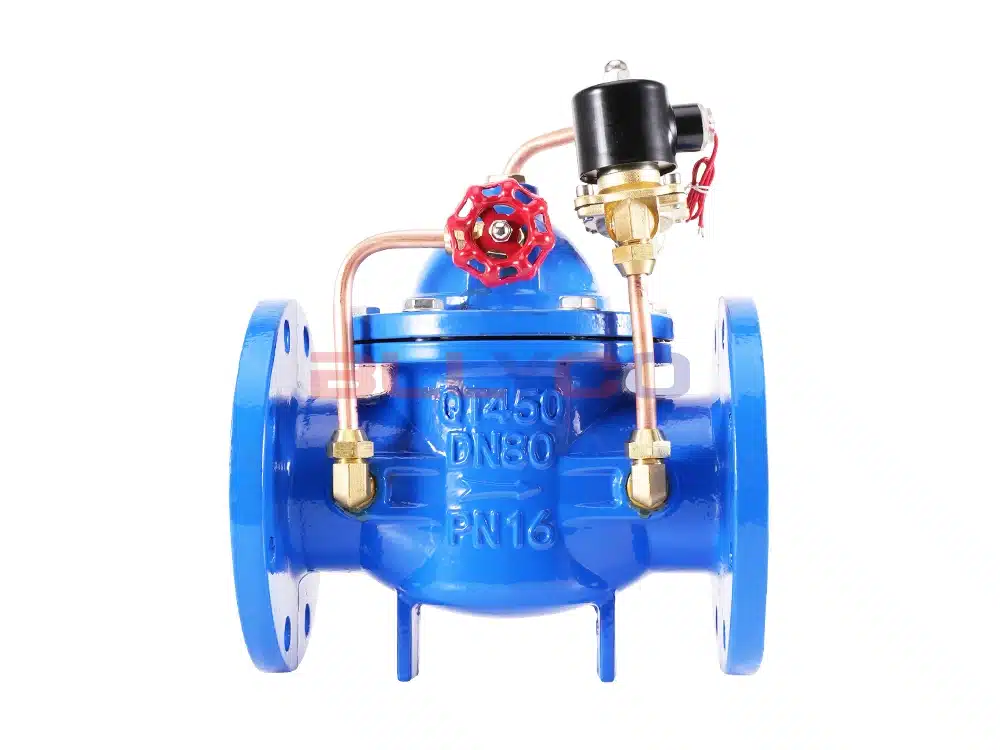

Ductile iron electric control valve 600X-16Q

600X Motorized Control ValveBy the main valve, solenoid pilot valve,needle valve,ball valvespolymorphicfilterand pressure gauges to form a hydraulically controlled receiver system. Remote control of the opening and closing of the valve can be realized by means of a solenoid pilot valve. The speed of opening and closing can be controlled by adding additional devices. Electrically controlled hydraulic control valves utilize the pilot valve to control the opening and closing of the valve, saving energy. It can replace other valves with large electric devices. Electrically controlled hydraulic control valve products are used in high-rise buildings, living areas and other water supply pipe network systems and urban water supply projects. 600X electric control valve is a kind of tosolenoidsIt is a hydraulically operated valve for pilot valve. Commonly used in water supply and drainage and industrial systems in the automatic control, control response is accurate and fast, according to the electrical signal remote control to open and close the pipeline system, to achieve remote operation. 600X electric control valve can replace thegate valvecap (a poem)butterfly valveFor use in large motorized operating systems. Valve closing speed is adjustable, smooth closing without pressure fluctuations. The valve is small in size, light in weight, simple in maintenance and easy in use. The solenoid valve can be used with AC 220V, or DC 24V, and can be used with normally open or normally closed type according to the occasion.

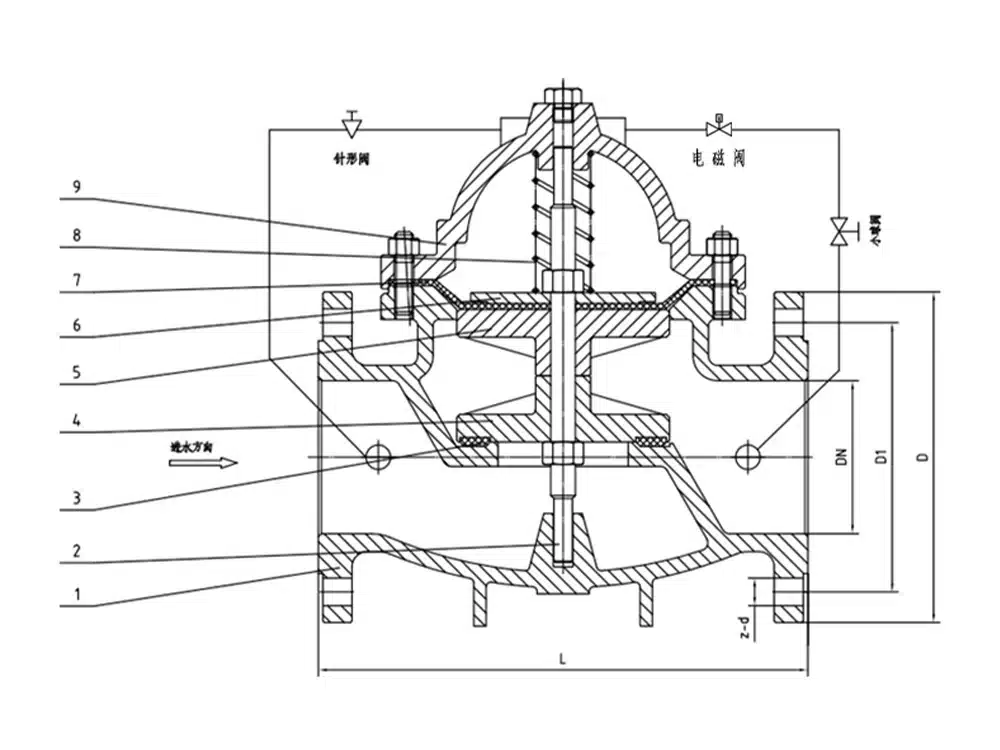

Working Principle

When the valve is fed from the front end of the valve, the water flows through the needle valve into the main valve control chamber, and when the solenoid pilot valve opens, the water in the control chamber flows out through the solenoid pilot valve and ball valve. The ball valve opening is larger than the needle valve opening, the pressure inside the main valve control chamber is very low, and the main valve is in the fully open state. When the electromagnetic pilot valve is closed, the water in the main valve control chamber can not flow out, the control chamber is pressurized, pushing the diaphragm to close the main valve.

Product Parameters

Product Size Reference
