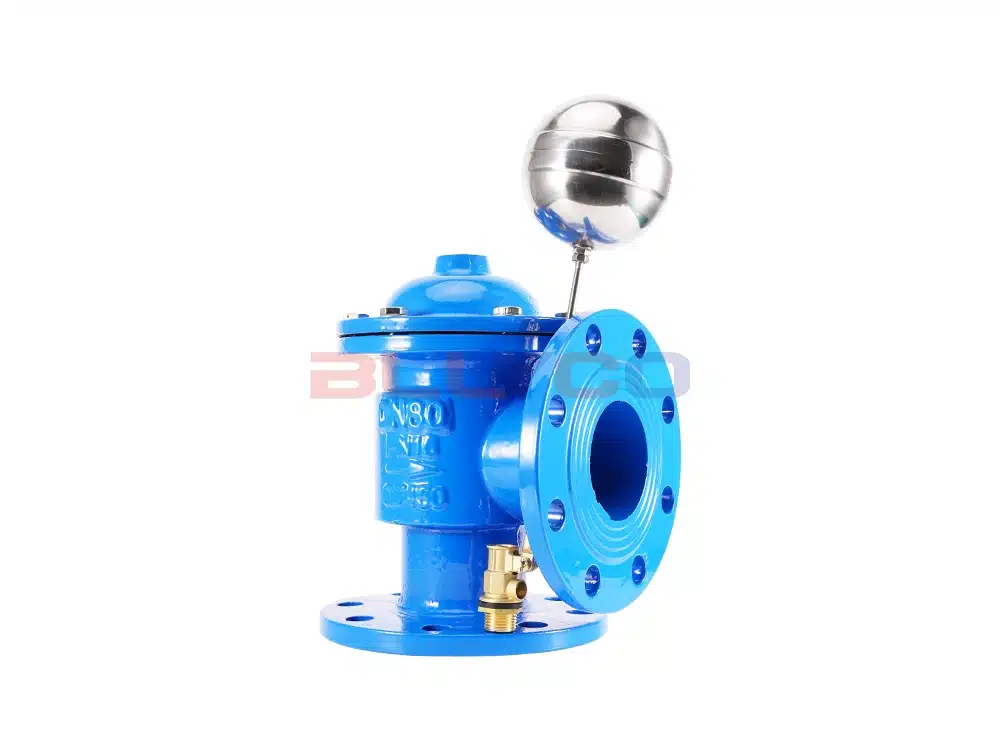

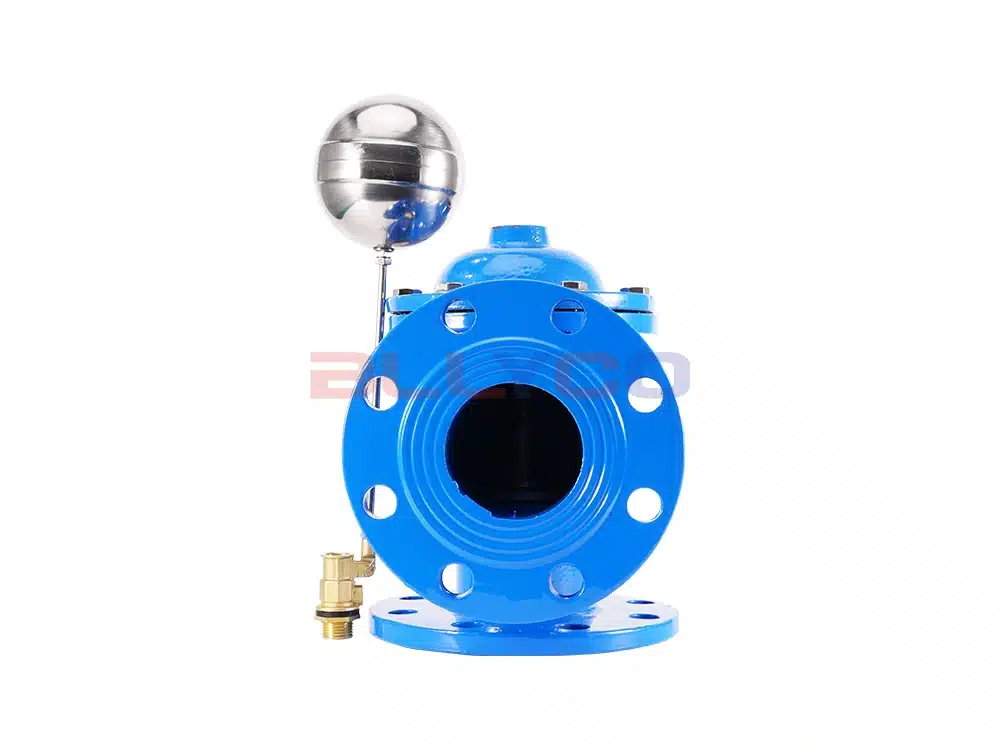

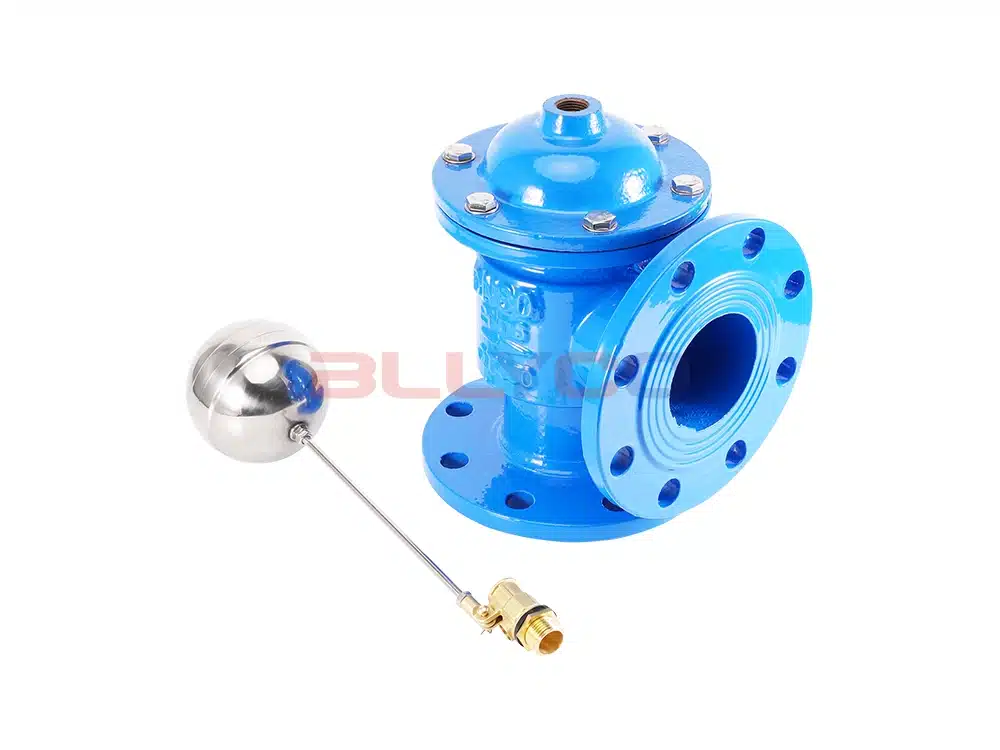

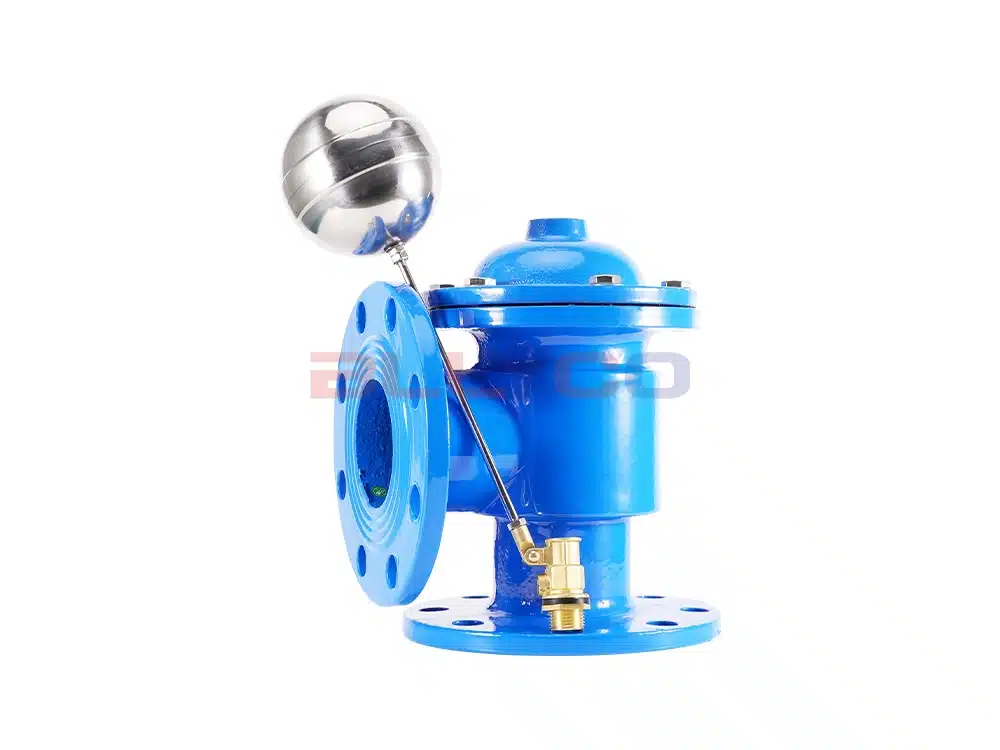

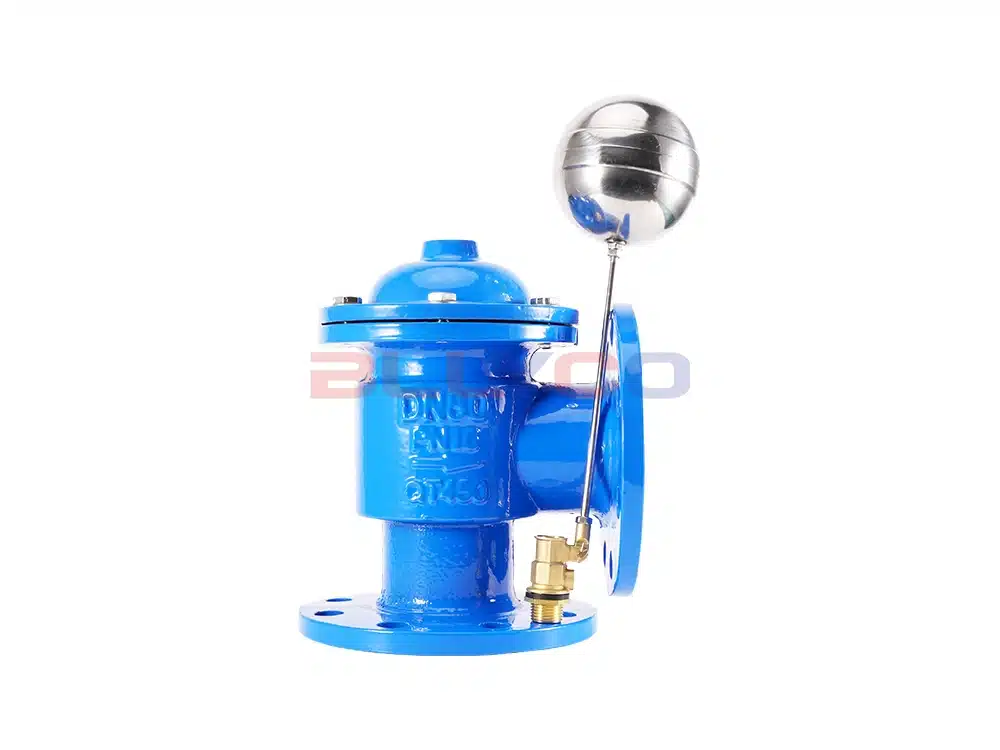

Ductile iron hydraulic water level control valve H142X-16Q

H142XHydraulic water level control valvesWith automatic opening and closing of the pipeline to control the water level, applicable to industrial and mining enterprises, civil buildings in a variety of water towers or pools in the automatic water supply system, and can be used as atmospheric boiler circulating water supply control valves, hydraulic water level control valves are small in size and easy to install, enabling high sensitivity, head loss is small, no water hammer phenomenon. As a result of small float control can greatly improve the utilization rate of the water tower, for the new water tower due to the reduction in the volume of the float and make the upper part of the water tower left to float the height required for free floating to reduce the cost of the water tower, to overcome the old-style rod floatingball valvesLarge size, easy to damage, low working pressure, a lot of overflow and other disadvantages, is the new water tower and update the old float valve more ideal and more suitable products. When the water level in the pool or water tower falls, the float valve is opened to drain, the inlet pipe pressure water will valve piston lift, the sealing surface is open, the valve is open to the water supply, when the water level rises to the control valve, the float valve is closed, the piston moves down to the sealing surface is closed, the valve is to stop the water supply.

Product Features

• 运用液压原理控制，结构新颖合理。

• 工作平稳可靠。在规定的使用压力范围内，无水锤冲击。

• 重量轻，体积小。

• 安装维修方便。

Product Parameters

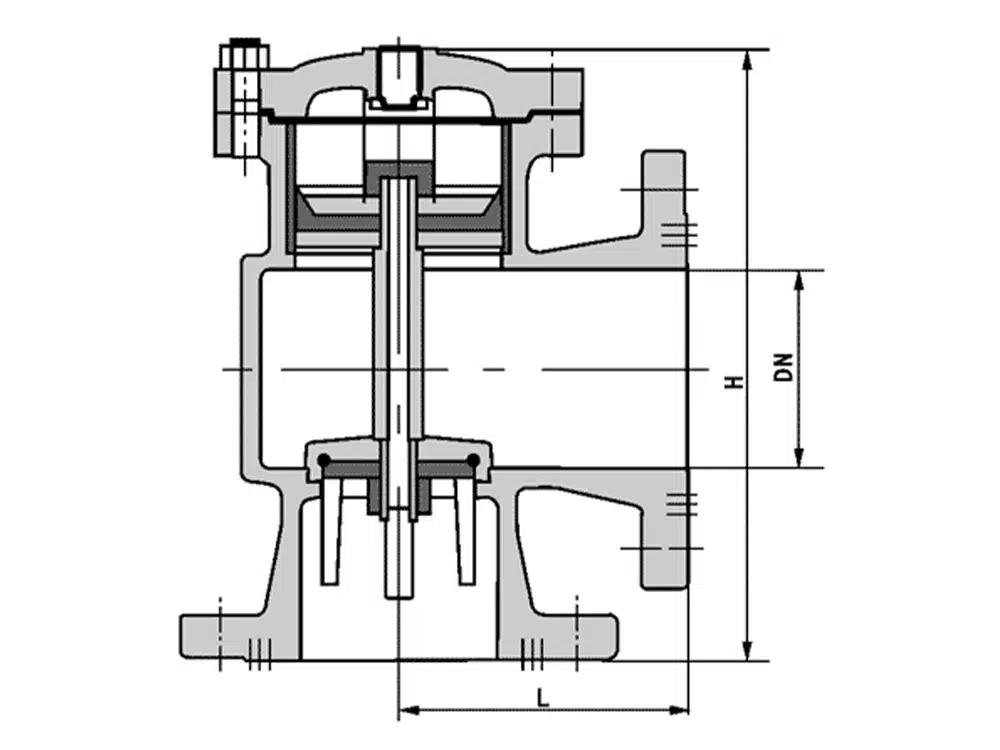

Product Size Reference
