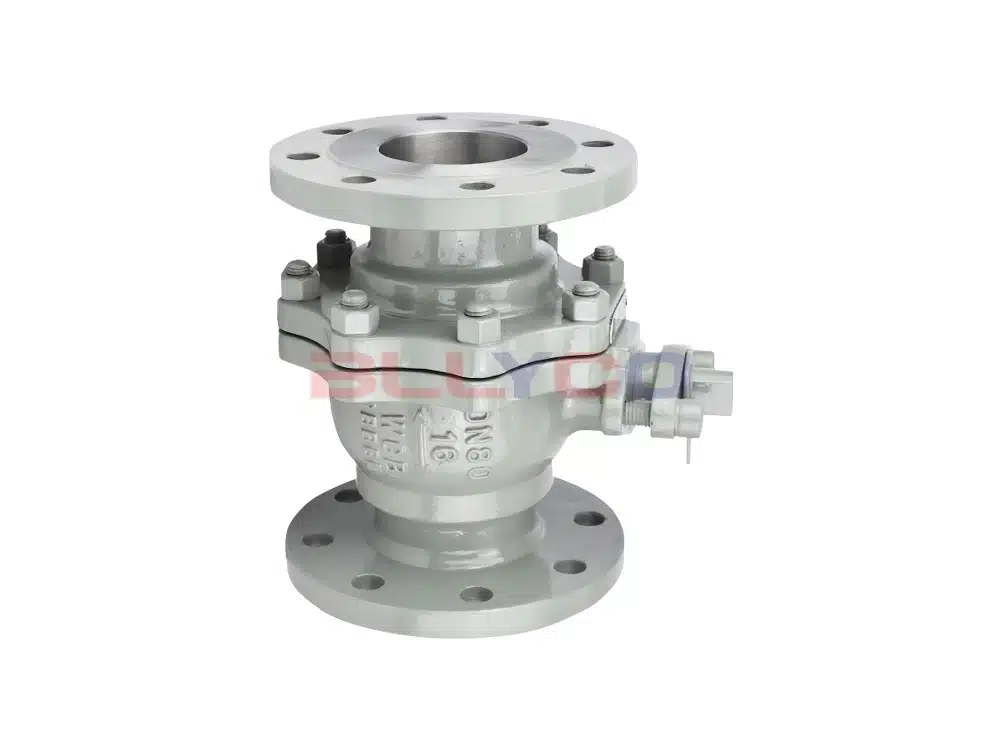

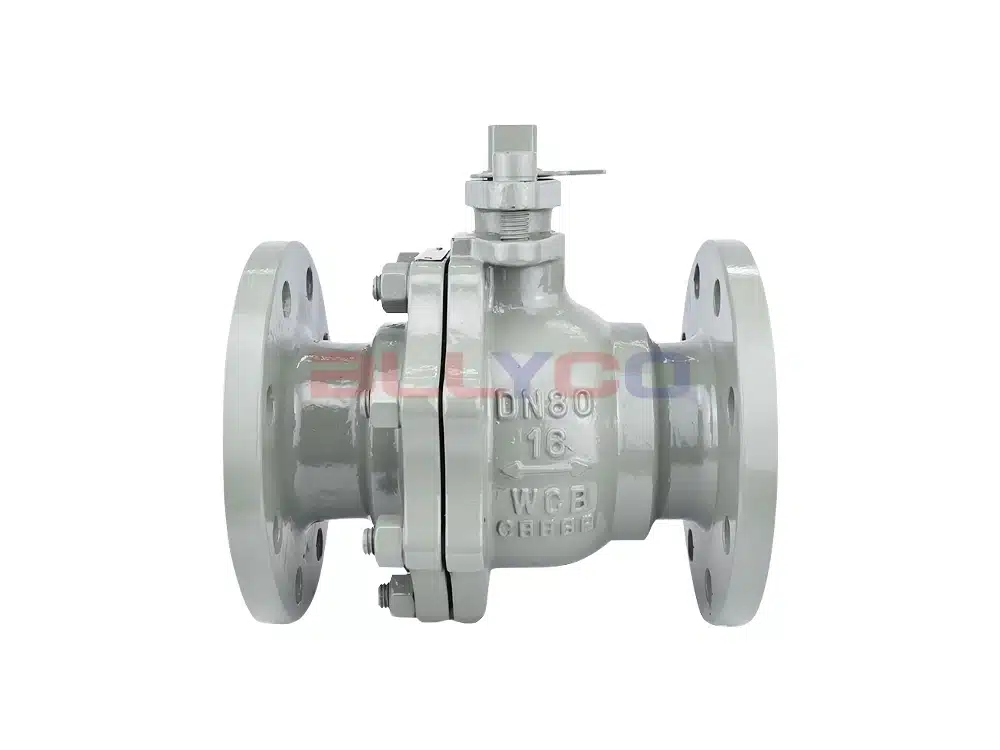

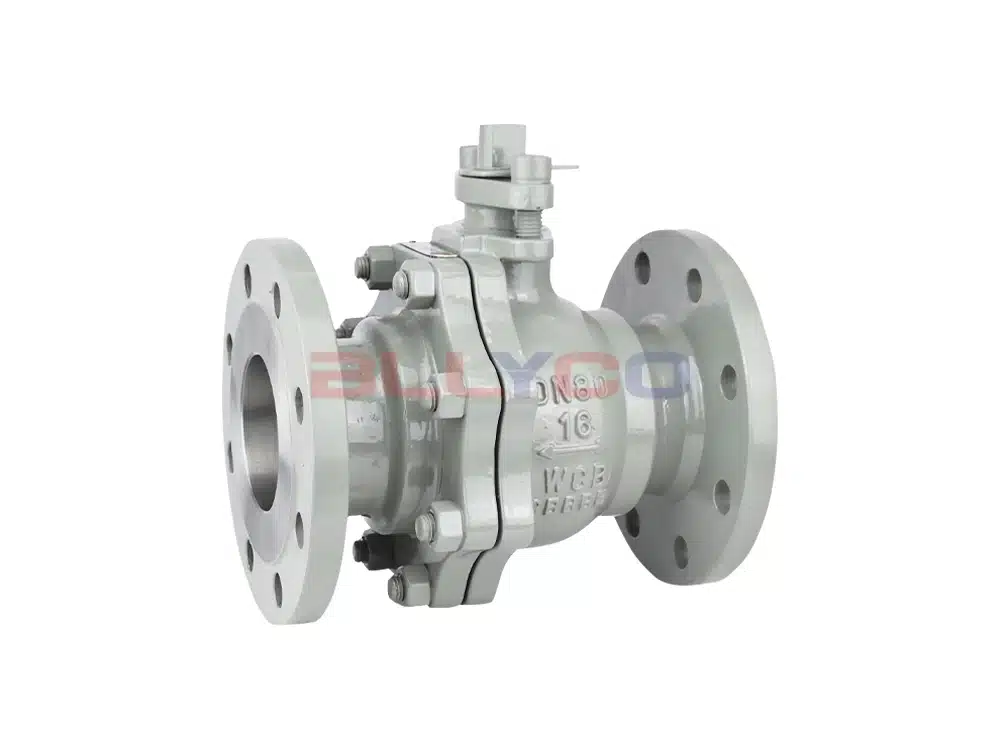

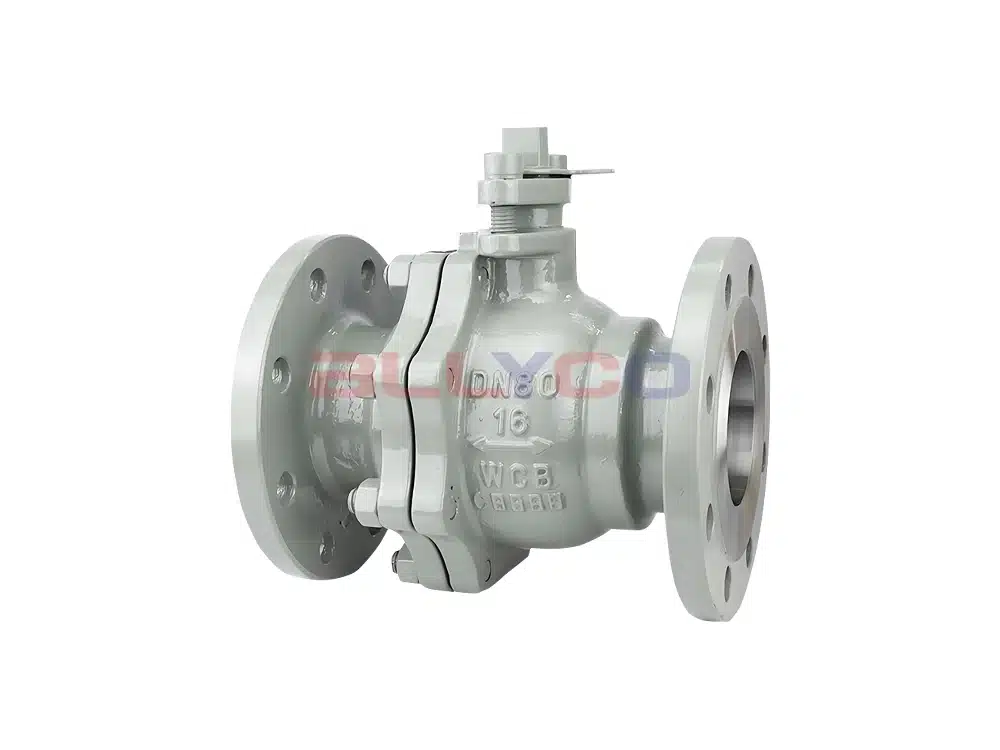

Q41H-16C MetalHard seal flange ball valveIt is a kind of valve to do cutting off, distributing and changing the flow direction of medium. The valve seat adopts plate spring loaded metal seal structure, easy to open and close at high temperature. The ball and seat are treated with special hardening, and the sealing surface is not scratched. Widely used in urban construction, chemical industry, metallurgy, petroleum, pharmaceutical, food, beverage, environmental protection and other fields.

Product Features

Q41H-16C metal hard seal flange ball valve has good sealing performance, high temperature resistance, abrasion resistance, impact resistance, light switch, long service life and so on.

Product Parameters

产品型号

Q41H-16C

阀体材质

铸钢

公称压力

≤1.6Mpa

适用介质

水、蒸汽、油品等

适用温度

≤325°C

Product Size Reference

通径

L

D

D1

D2

b

n-Фd

H

L0

DN15

130

95

65

45

14

4-14

78

140

DN20

140

105

75

55

14

4-14

84

160

DN25

150

115

85

65

14

4-14

95

180

DN32

165

135

100

78

16

4-18

150

250

DN40

180

145

110

85

16

4-18

150

300

DN50

200

160

125

100

18

4-18

170

350

DN65

220

180

145

120

20

4-18

195

350

DN80

250

195

160

135

20

8-18

215

400

DN100

280

215

180

155

20

8-18

250

500

DN125

320

245

210

185

22

8-18

265

600

DN150

360

280

240

210

24

8-23

270

800

DN200

400

335

295

265

26

12-23

330

1200
