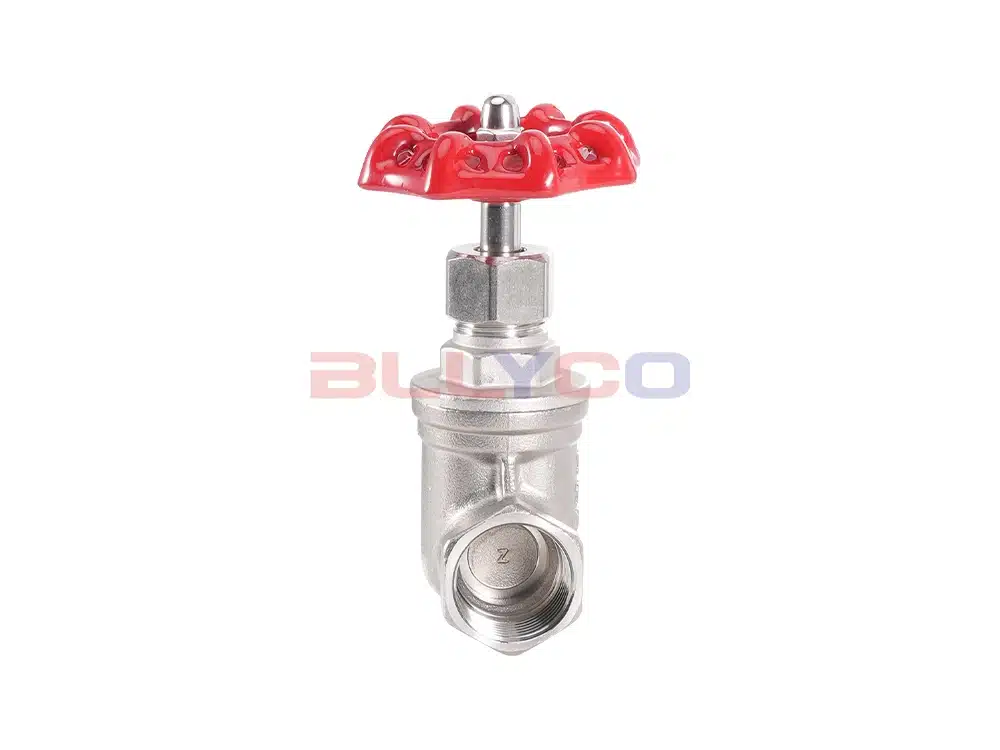

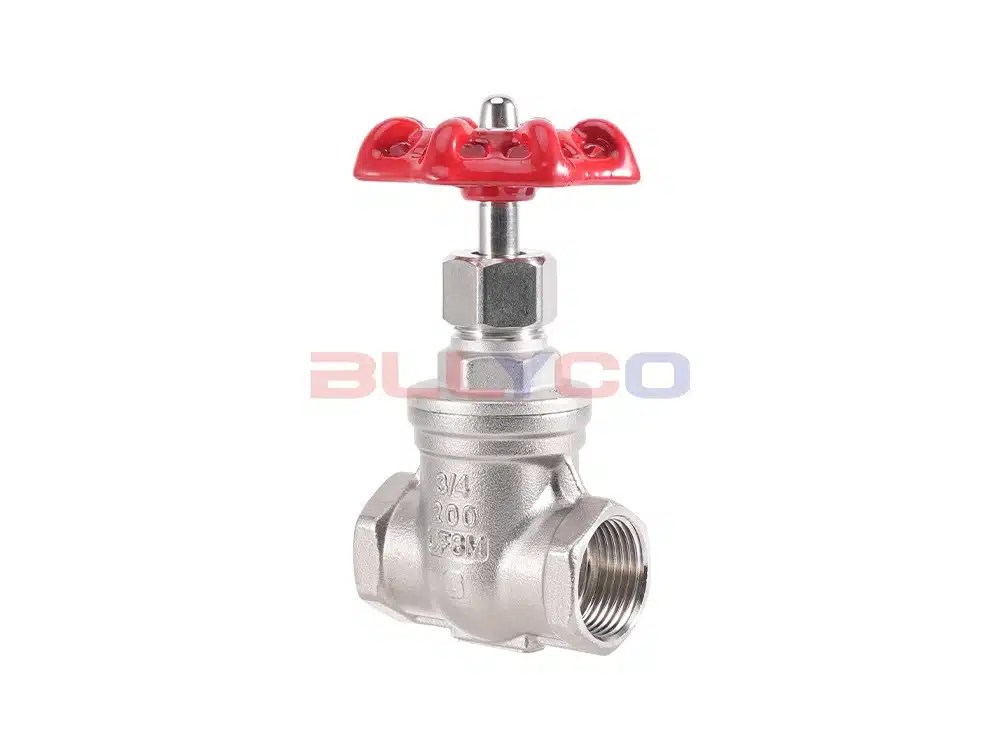

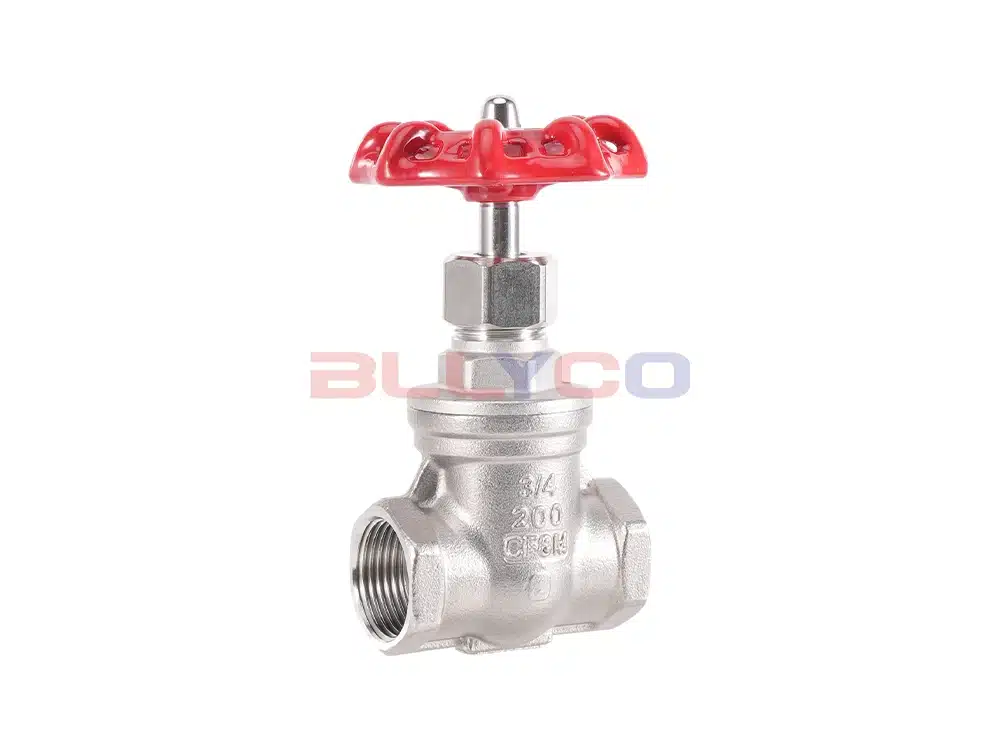

Z15W-16P stainless steel wire-button gate valve body resistance is small, the sealing surface by the media scouring and erosion is small. Open and close less effort, the medium flow direction is not restricted, do not disturb the flow, do not reduce the pressure. Simple shape, short structure length, good manufacturing process. Widely used in scientific research, aerospace, electronics, machinery, metallurgy, petroleum, chemical, energy, environmental protection, biomedicine, refrigeration, food and other fields.
Product Features
- Suitable for frequent frequent operation, opening and closing quickly, lightweight.
- Low fluid resistance.
- Simple structure, relatively small size, light weight, easy maintenance.
- Good sealing performance.
- Not limited by the installation direction, the medium flow direction can be arbitrary.
Product Parameters
Product Model | Z15W-16P |
Valve Body Material | 304 Stainless Steel |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Operating Temperature | ≤120°C |

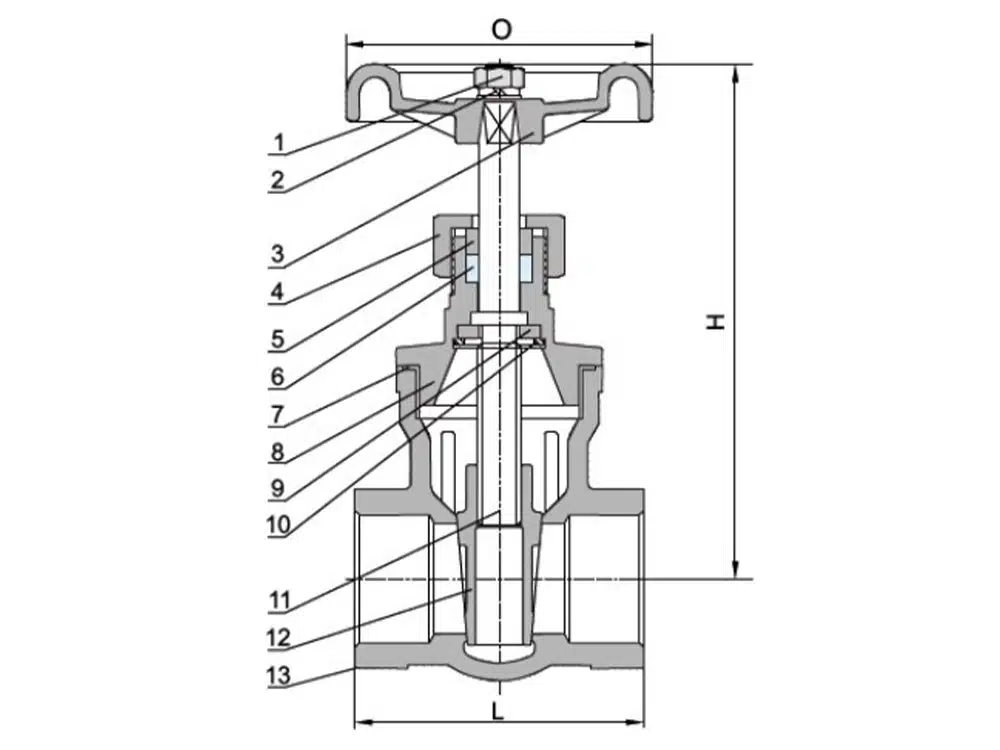

Product Size Reference
Nominal Diameter | SIZE | L | O | H |
DN15 | 1/2 | 52 | 70 | 96 |
DN20 | 3/4 | 57 | 70 | 102 |
DN25 | 1 | 62 | 70 | 114 |
DN32 | 1-1/4 | 70 | 70 | 132 |
DN40 | 1-1/2 | 75 | 97 | 145 |
DN50 | 2 | 83 | 97 | 170 |
DN65 | 2-1/2 | 107 | 126 | 210 |
DN80 | 3 | 117 | 126 | 237 |
DN100 | 4 | 129 | / | / |
