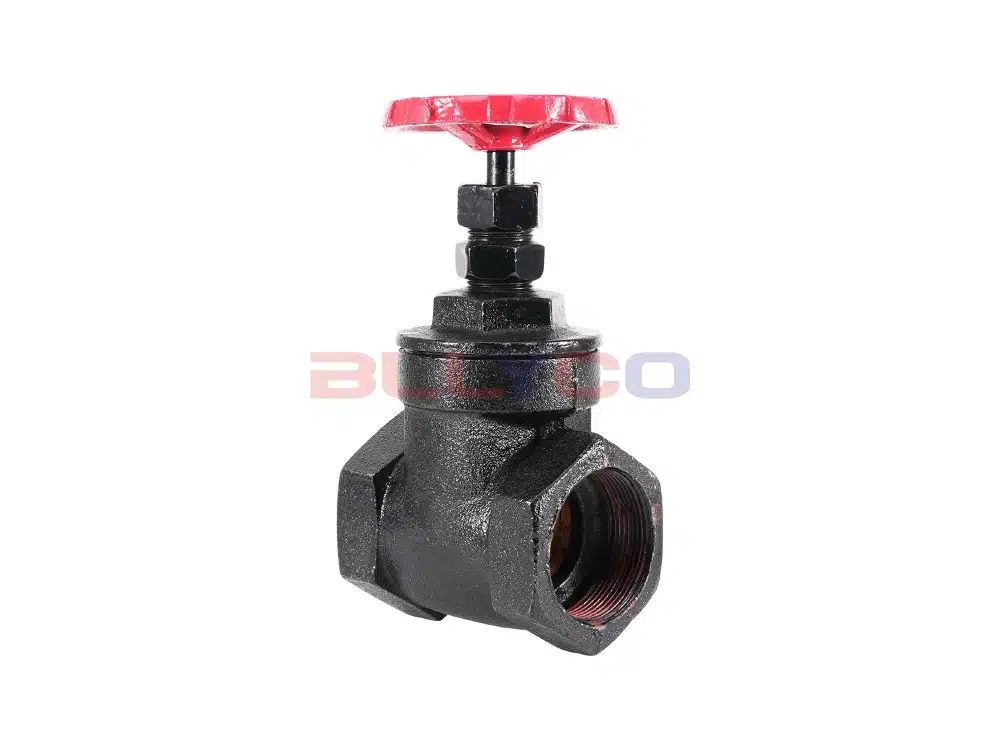

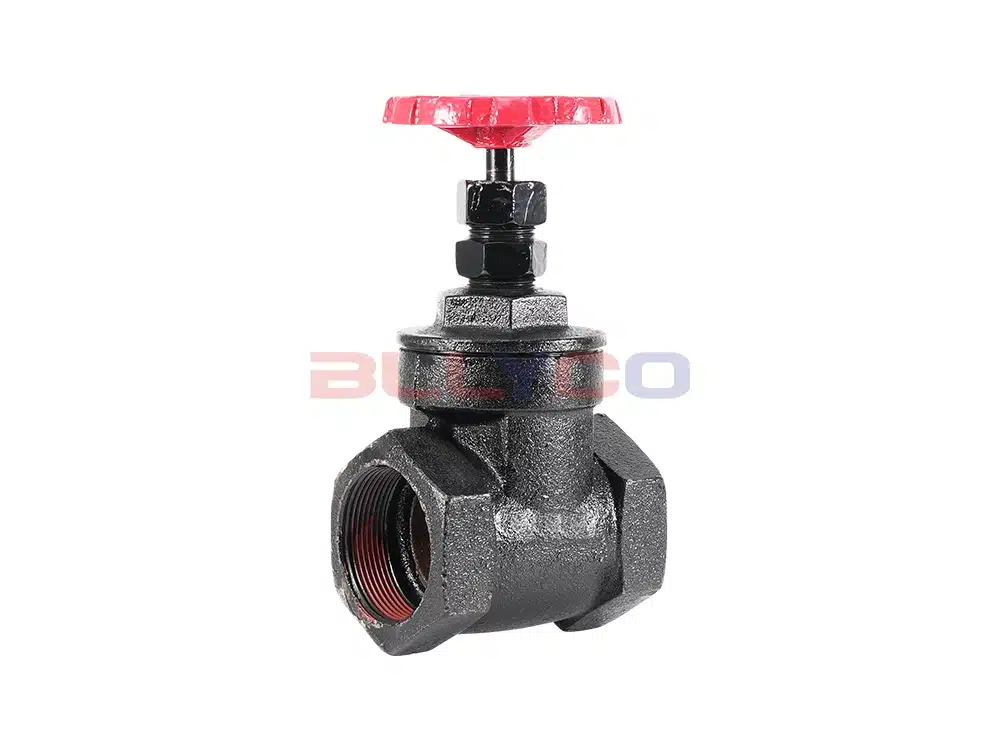

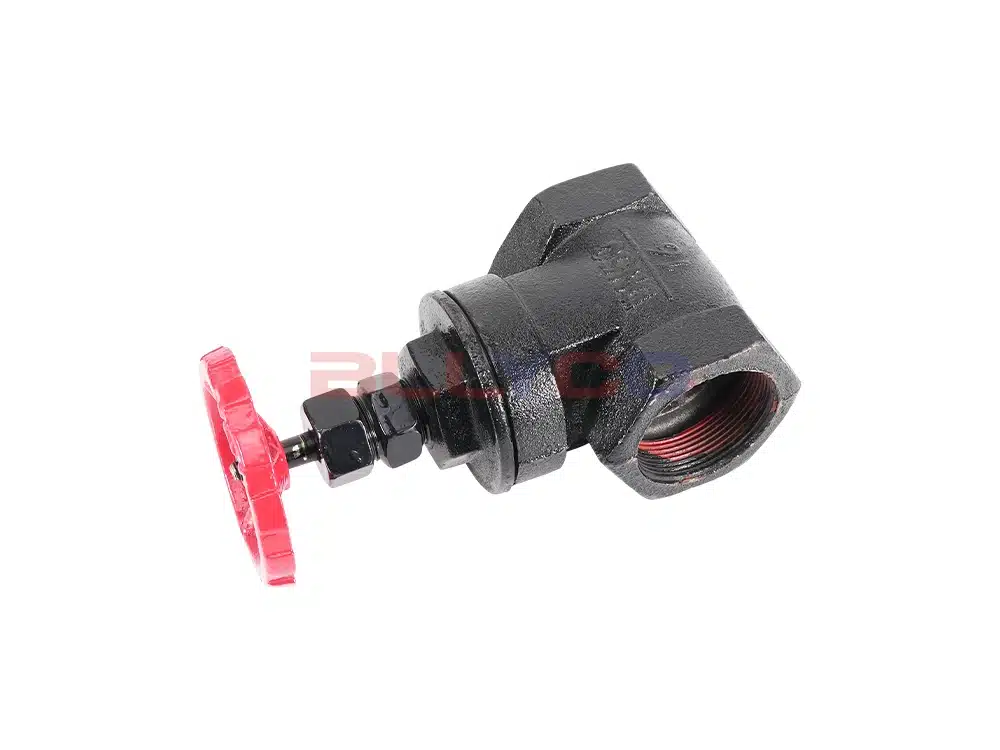

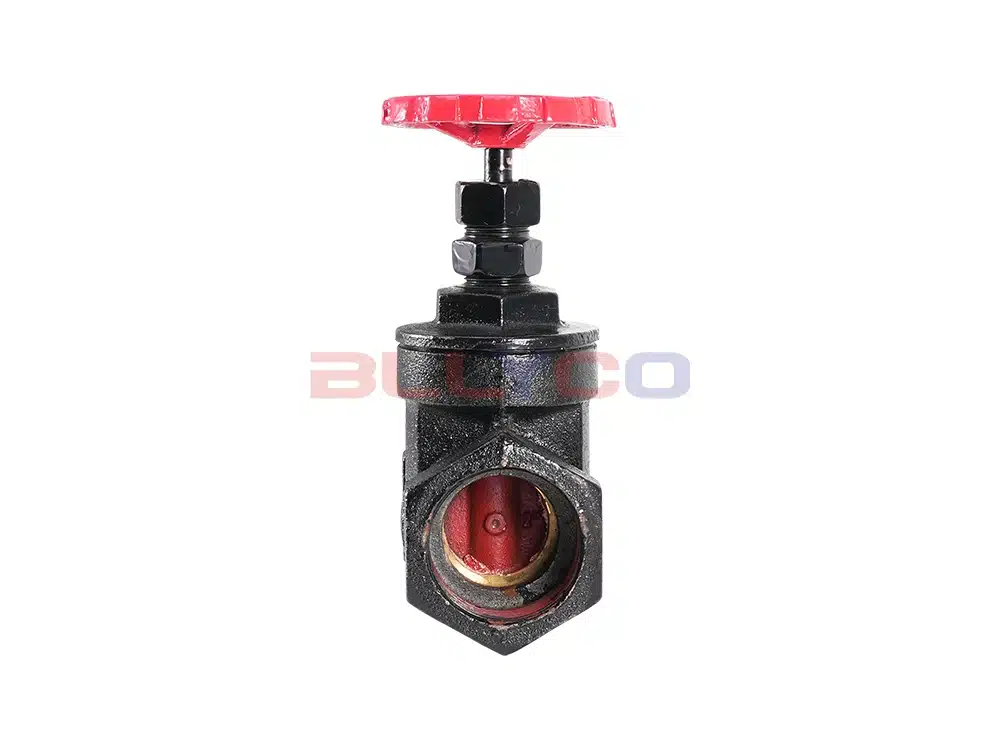

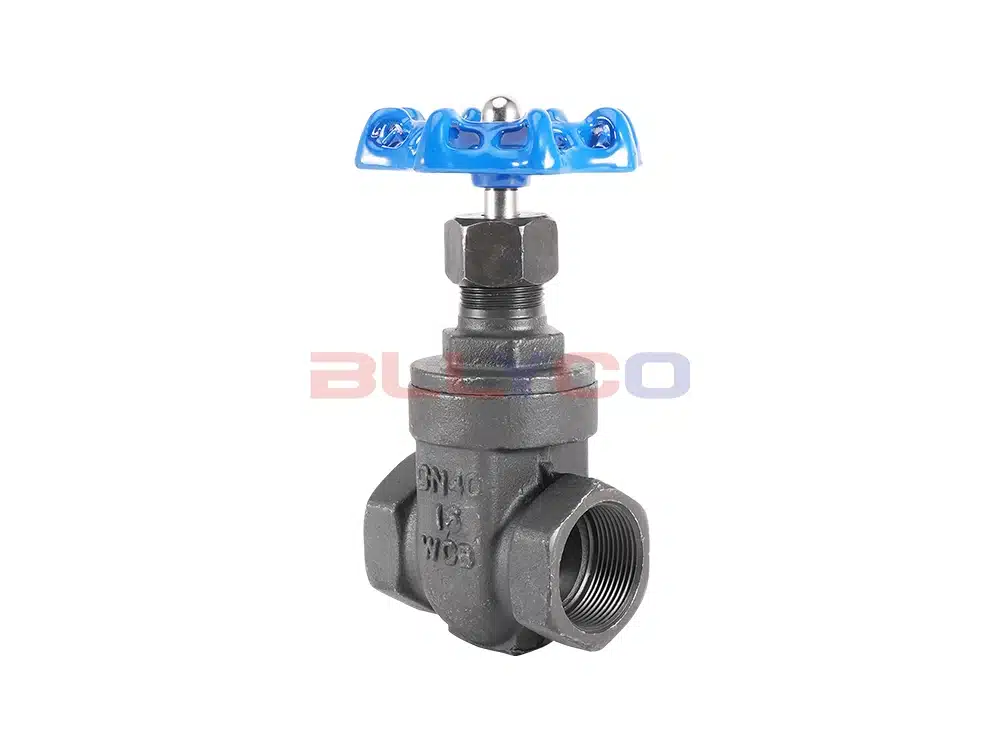

Z15T-16 cast iron wire-button gate valve is widely used in petroleum, chemical, pharmaceutical, electric power and other industries, in water, air, oil media pipeline for opening and closing.
Product Features
- Fluid resistance is small, the sealing surface by the medium of the scouring and erosion is small.
- Opens and closes with less effort.
- Medium flow direction is not restricted, does not disturb the flow, does not reduce the pressure.
- Simple shape, short structural length, good manufacturing process and wide range of application.
Product Parameters
Product Model | Z15T-16 |
Valve Body Material | Grey Cast Iron |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Operating Temperature | ≤120°C |

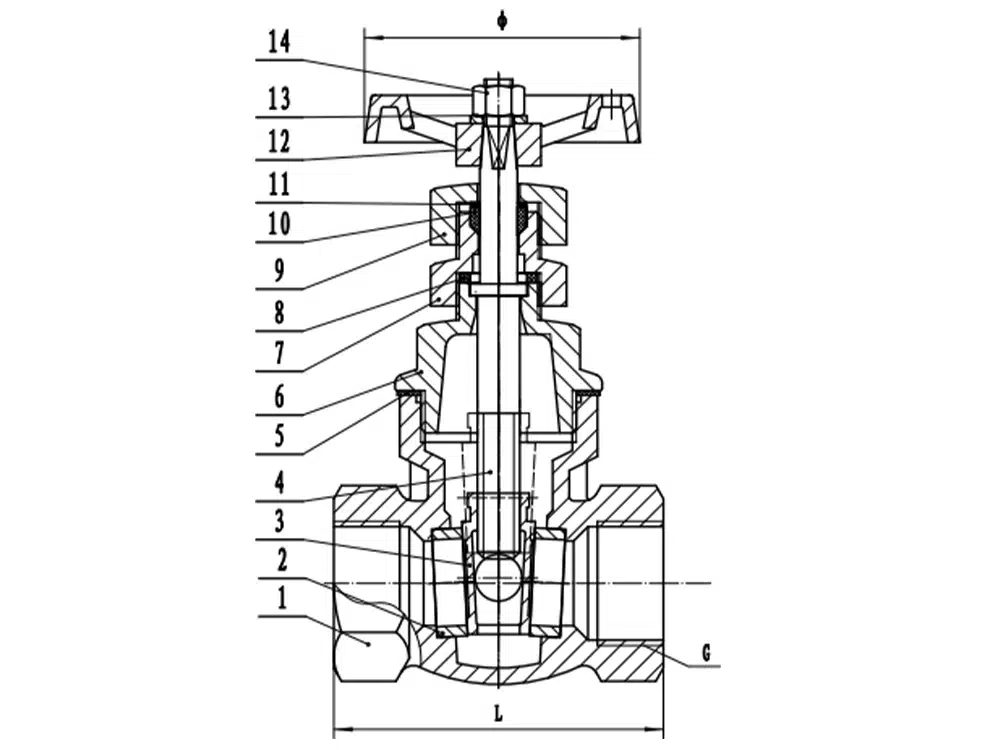

Product Size Reference
Nominal Diameter | G | L | φ |
DN15 | 1/2 | 60 | 60 |
DN20 | 3/4 | 65 | 60 |
DN25 | 1 | 75 | 69 |
DN32 | 1-1/4 | 85 | 100 |
DN40 | 1-1/2 | 95 | 100 |
DN50 | 2 | 110 | 130 |
DN65 | 2-1/2 | 120 | 130 |
DN80 | 3 | 140 | 132 |
DN100 | 4 | 165 | 184 |
