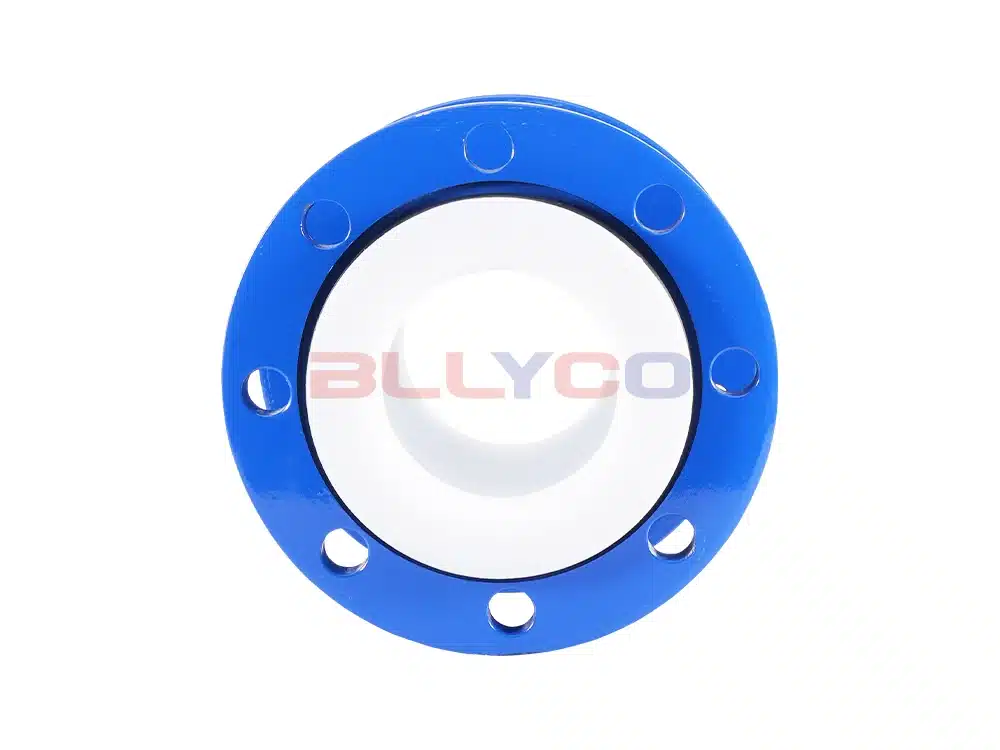

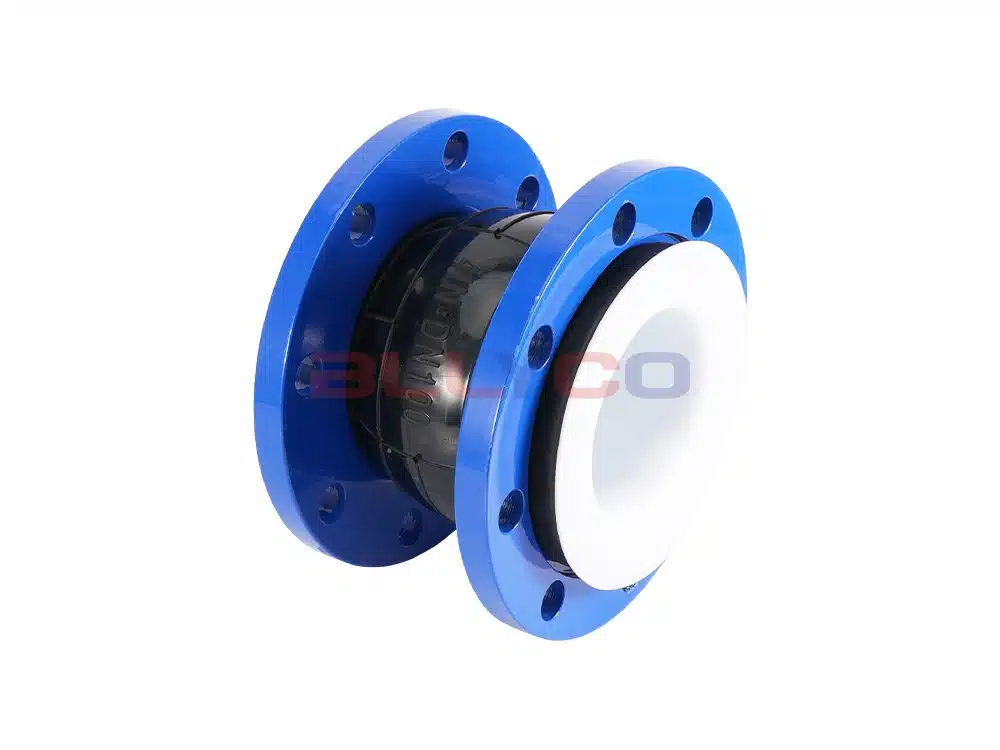

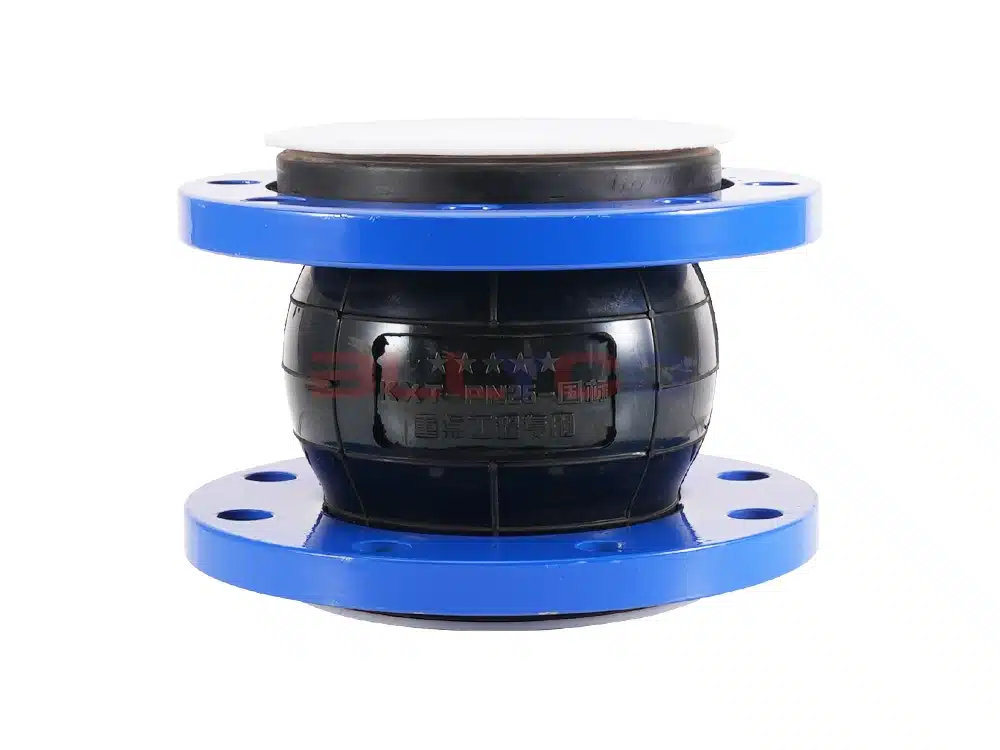

Fluorine lined rubber flexible jointsIt is an important fitting used for pipe connection. PTFE rubber is a material with excellent resistance to acid and alkali, high temperature, corrosion and good abrasion resistance, which can be widely used in chemical, petroleum, food, pharmaceutical and other industries. Theflexible jointIt is made of PTFE rubber lining, which can effectively isolate the contact between the medium in the pipeline and the metal joint, avoid the corrosion of the medium on the metal, and improve the service life of the pipeline.

Product Parameters

产品型号

KXTF4-16C

橡胶材质

NBR/EPDM

橡胶内衬

PTFE Polytetrafluoroethylene

法兰材质

碳钢

公称压力

≤1.6Mpa

适用介质

水、气、油品等

适用温度

≤150°C

Product Size Reference

通径

L

M

N

DN25

95

85

4

DN32

95

100

4

DN40

95

110

4

DN50

105

125

4

DN65

115

145

4

DN80

135

160

8

DN100

150

180

8

DN125

165

210

8

DN150

180

240

8

DN200

210

295

12

DN250

230

355

12

DN300

245

410

12

DN350

255

470

16

DN400

255

525

16

DN450

255

585

20

DN500

260

650

20

DN600

260

770

20
