Flexible rubber joint, also known as rubber joint, shock absorber, pipe shock absorber, shock absorber, soft joint, etc., is a kind of pipe joint with high elasticity, high airtightness, media resistance and weather resistance. Flexible rubber joint is a hollow rubber product that plays the role of flexible connection between metal pipes. Since the flexible rubber joint has good comprehensive performance, it is widely used in chemical industry, construction, water supply, petroleum, light and heavy industry, refrigeration, sanitation, plumbing, fire fighting, electric power and other basic engineering.
Product Features
- Small size, light weight, good elasticity, easy installation and maintenance.
- The installation can produce lateral, auxiliary, angular displacement, not subject to the pipe is not centered, the flange is not parallel to the limitations.
- Reduces structural transmission noise during operation and has strong vibration absorption capability.
Product Parameters
Product Model | KXT-16P |
Rubber Material | NBR/EPDM |
Flange Material | 304 Stainless Steel |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Operating Temperature | ≤80°C |

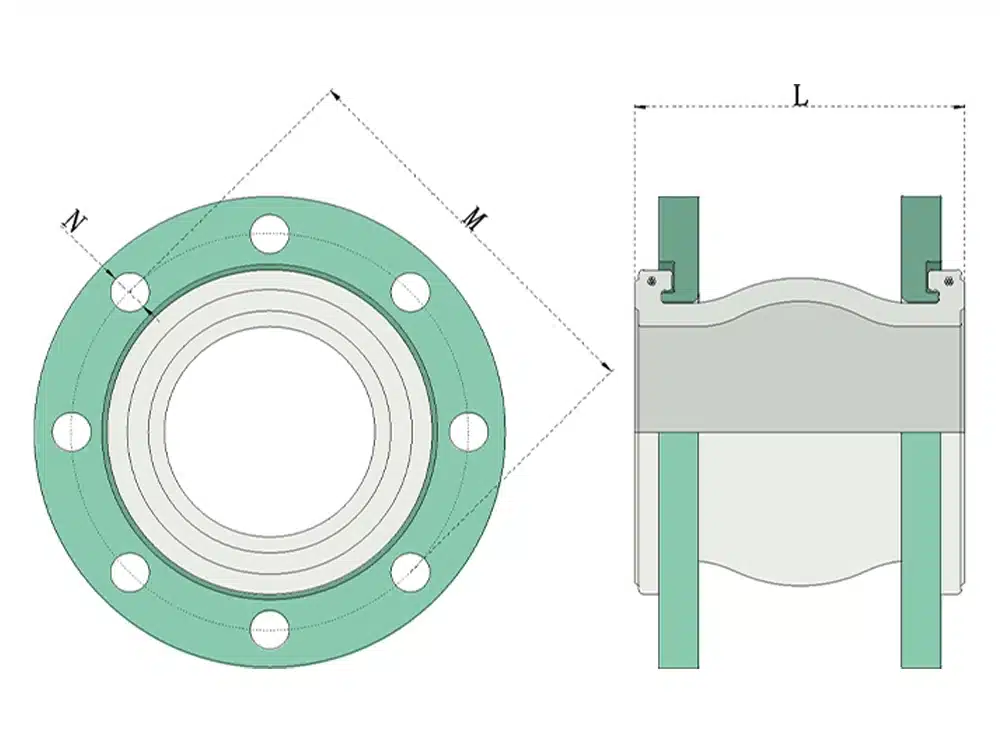

Product Size Reference
Nominal Diameter | L | M | N |
DN25 | 95 | 85 | 4 |
DN32 | 95 | 100 | 4 |
DN40 | 95 | 110 | 4 |
DN50 | 105 | 125 | 4 |
DN65 | 115 | 145 | 4 |
DN80 | 135 | 160 | 8 |
DN100 | 150 | 180 | 8 |
DN125 | 165 | 210 | 8 |
DN150 | 180 | 240 | 8 |
DN200 | 210 | 295 | 12 |
DN250 | 230 | 355 | 12 |
DN300 | 245 | 410 | 12 |
DN350 | 255 | 470 | 16 |
DN400 | 255 | 525 | 16 |
DN450 | 255 | 585 | 20 |
DN500 | 260 | 650 | 20 |
DN600 | 260 | 770 | 20 |
