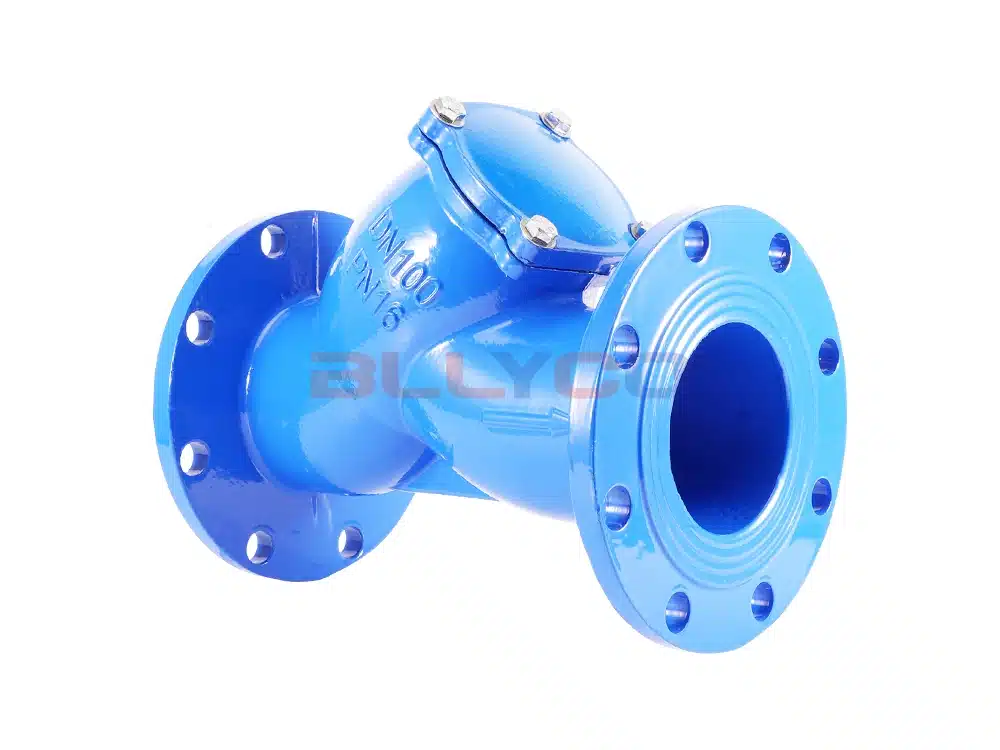

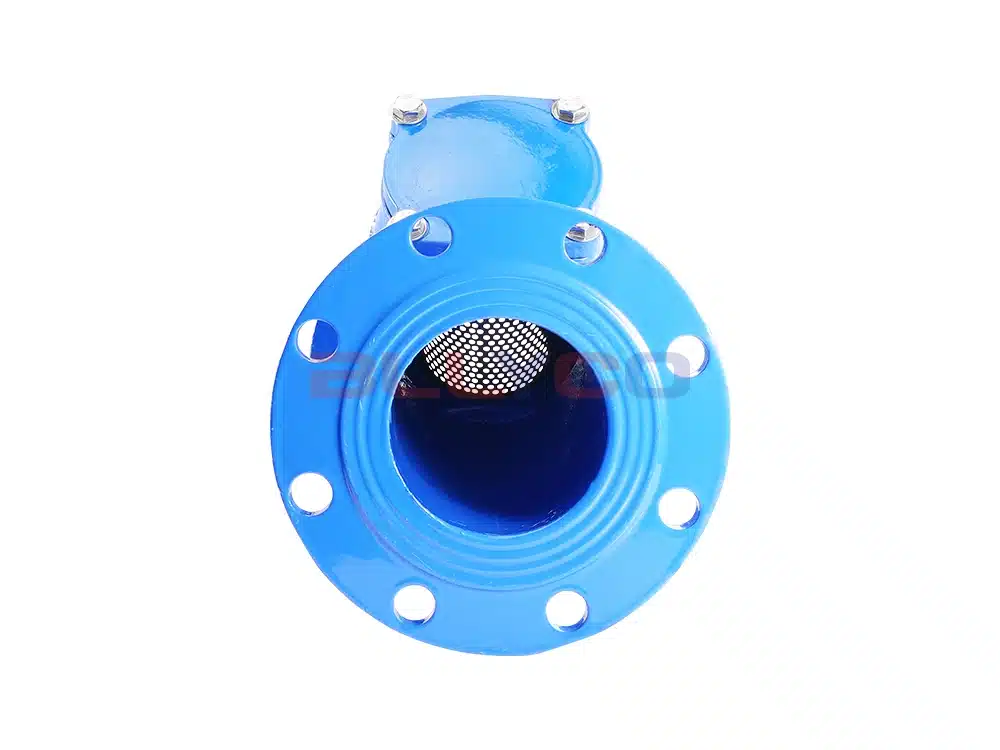

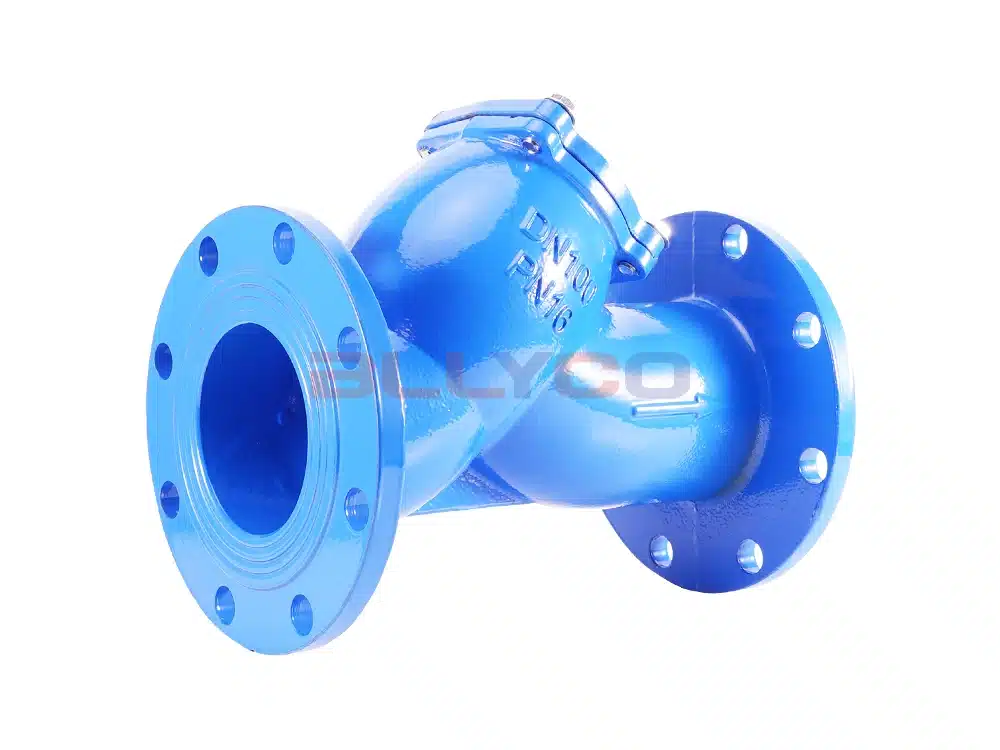

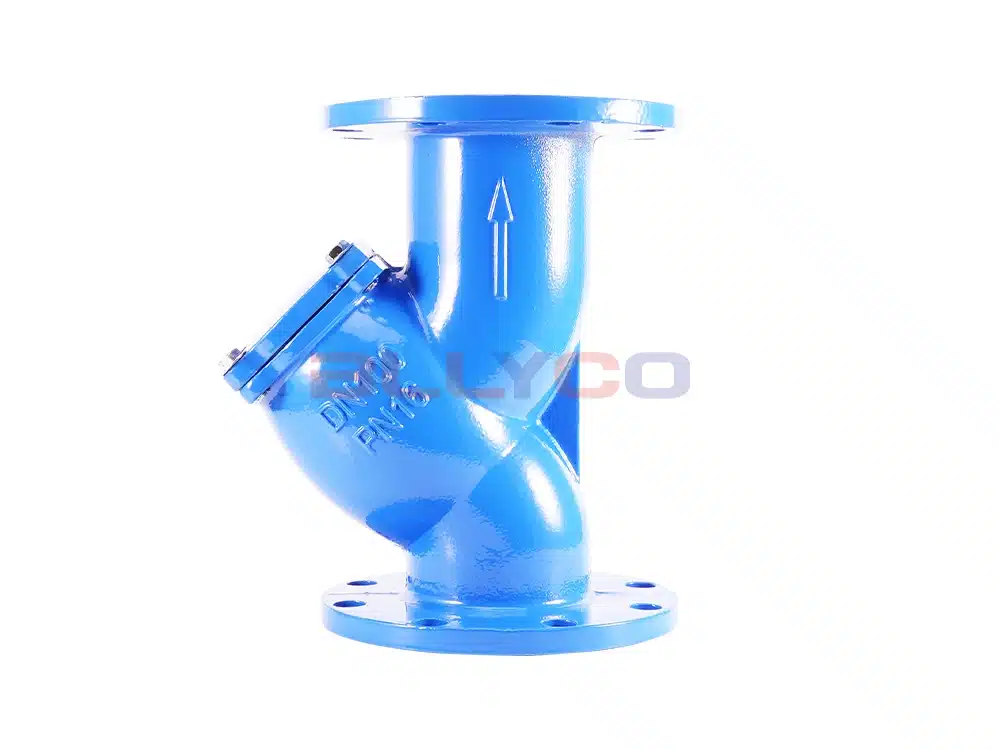

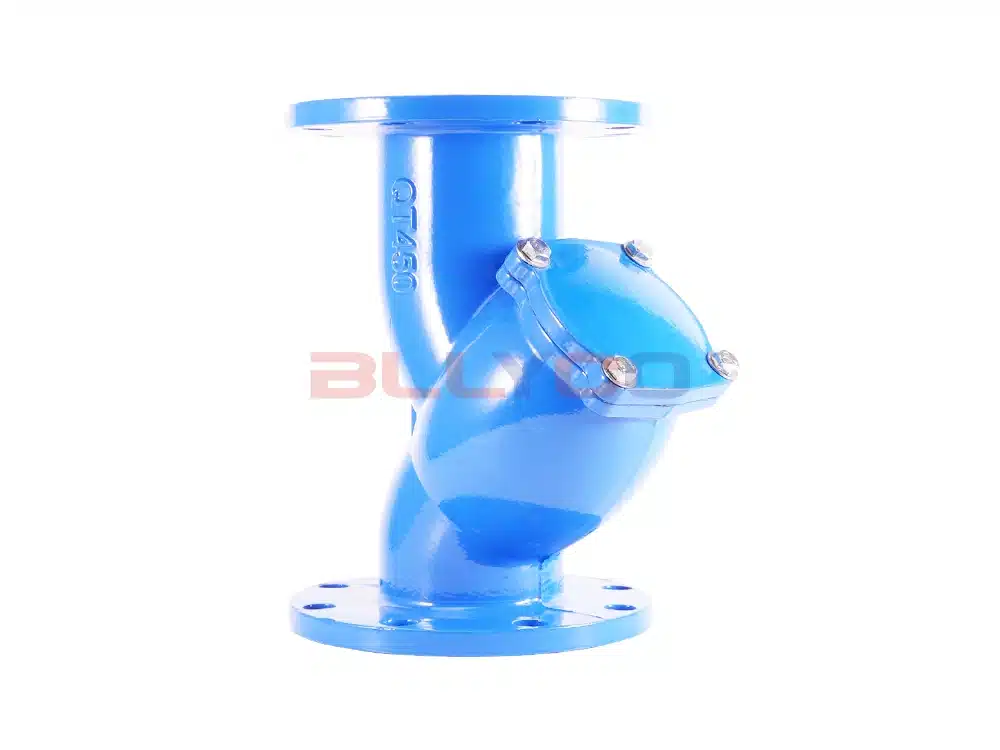

Y-filter(water)filterY-type filter (water filter) can be customized according to the specific requirements of customers.Y-type filter (water filter) has the advantages of simple production, convenient installation and cleaning, and large dirt-holding capacity. Y filter (water filter) has the advantages of simple production, convenient installation and cleaning, and large dirt-holding capacity.

Product Parameters

产品型号

GL41H-16Q

阀体材质

球墨铸铁

公称压力

≤1.6Mpa

适用介质

水等

适用温度

≤80°C

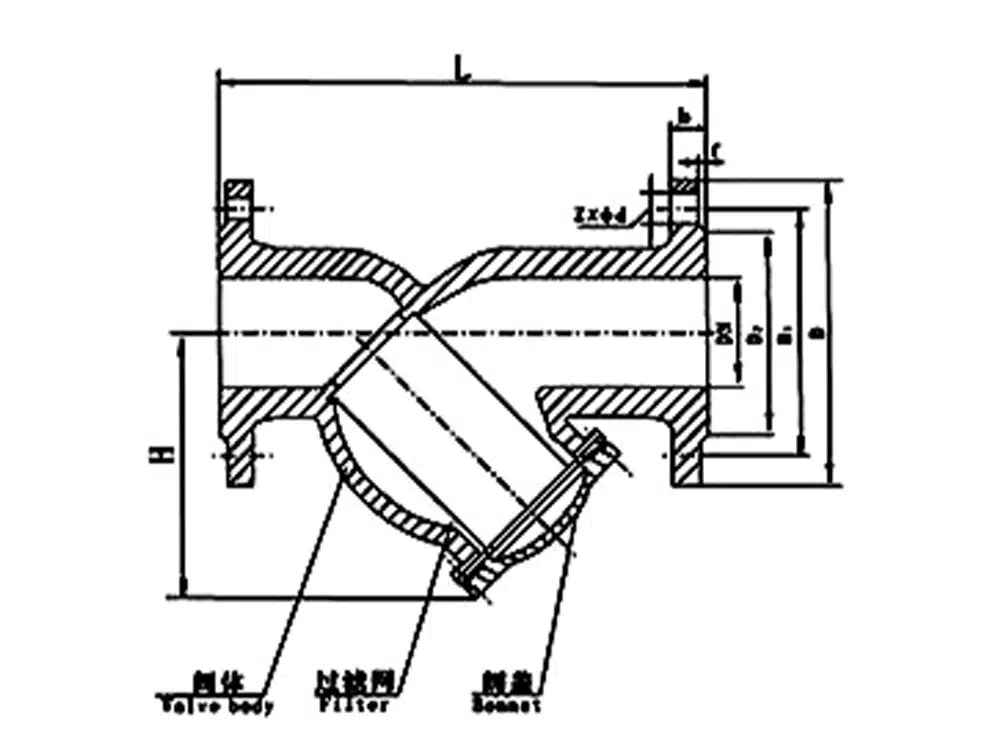

Product Size Reference

通径

L

D

D1

D2

b-f

Z-φd

H

DN40

200

145

110

85

18-3

4-18

122

DN50

200

160

125

100

20-3

4-18

135

DN65

220

180

145

120

20-3

4-18

160

DN80

250

195

160

135

22-3

8-18

202

DN100

295

215

180

155

24-3

8-18

250

DN125

315

245

210

185

26-3

8-18

297

DN150

345

280

240

210

28-3

8-23

360

DN200

415

335

295

265

30-3

12-23

382

DN250

505

405

355

320

32-3

12-25

447

DN300

585

460

410

375

34-4

12-25

455

DN350

635

520

470

435

34-4

16-25

480
