Z45W-16T valve body adopts brass material forging molding, mainly used for cutting off or regulating the flow of media in the pipeline. Its structure is compact, exquisite appearance, superior sealing performance, easy to operate, applicable to a variety of working conditions. Widely used in water conservancy, heating system, construction, petroleum, chemical, pharmaceutical, electric power and other industries.
Product Features
- Brass material has good corrosion resistance and is suitable for a wide range of media, such as water, oil and gas.
- The medium channel inside the valve body is straight through, the medium flows in a straight line, and the flow resistance is small.
- Gate movement direction is perpendicular to the direction of media flow, opening and closing with less effort.
- Smaller structure lengths for a wide range of operating conditions.
Product Parameters
Product Model | Z45W-16T |
Valve body material | Brass |
Valve material | Brass |
Nominal pressure | ≤1.6Mpa |
Applicable medium | Water, Non-Corrosive Liquids, etc. |
Applicable temperature | ≤120°C |

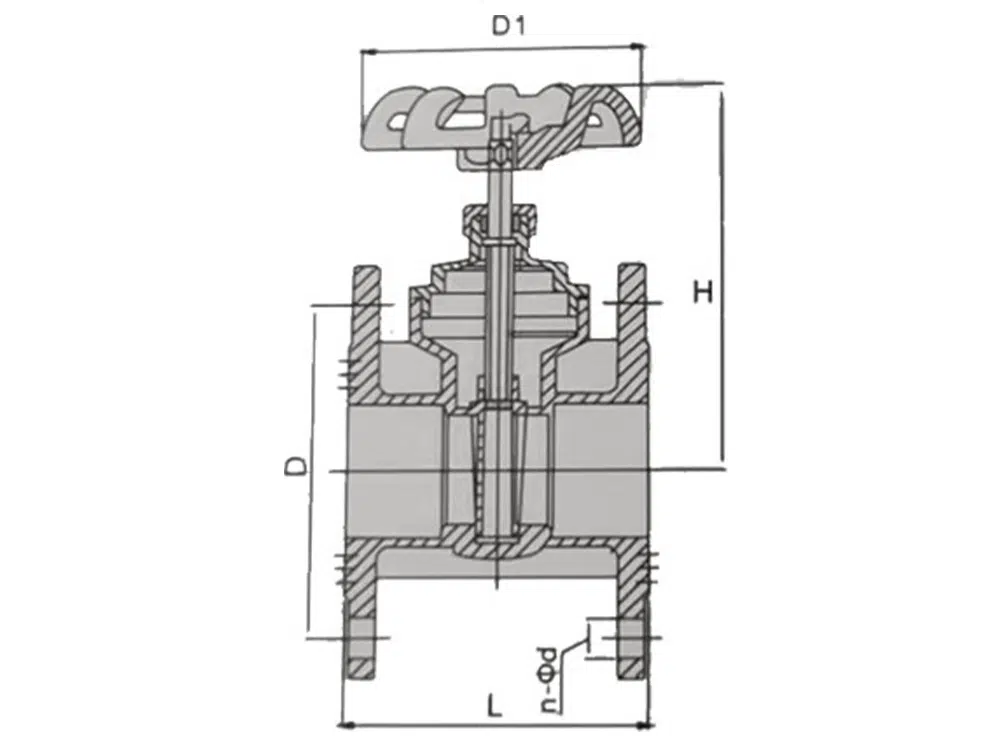

Product Size Reference
Nominal Diameter | L | D | H | D1 | n-Φd |
DN15 | 77 | 65 | 85 | 78 | 4-14 |
DN20 | 85 | 75 | 95 | 78 | 4-14 |
DN25 | 89 | 85 | 104 | 78 | 4-14 |
DN32 | 99 | 100 | 123 | 108 | 4-18 |
DN40 | 110 | 110 | 137 | 108 | 4-18 |
DN50 | 112 | 125 | 144 | 108 | 4-18 |
DN65 | 120 | 145 | 172 | 126 | 4-18 |
DN80 | 135 | 160 | 189 | 145 | 8-18 |
DN100 | 152 | 180 | 234 | 180 | 8-18 |
DN125 | 150 | 210 | 400 | 240 | 8-18 |
DN150 | 172 | 240 | 440 | 240 | 8-23 |
DN200 | 223 | 295 | 550 | 300 | 12-23 |
DN250 | 256 | 355 | 610 | 400 | 12-25 |
DN300 | 287 | 410 | 670 | 400 | 12-25 |
