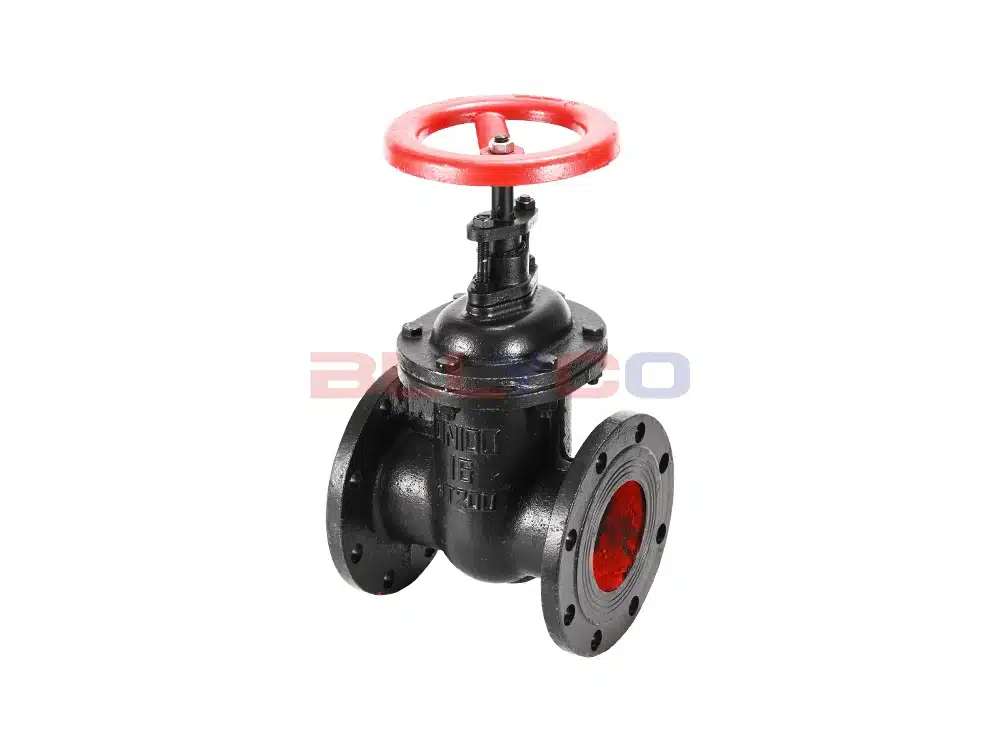

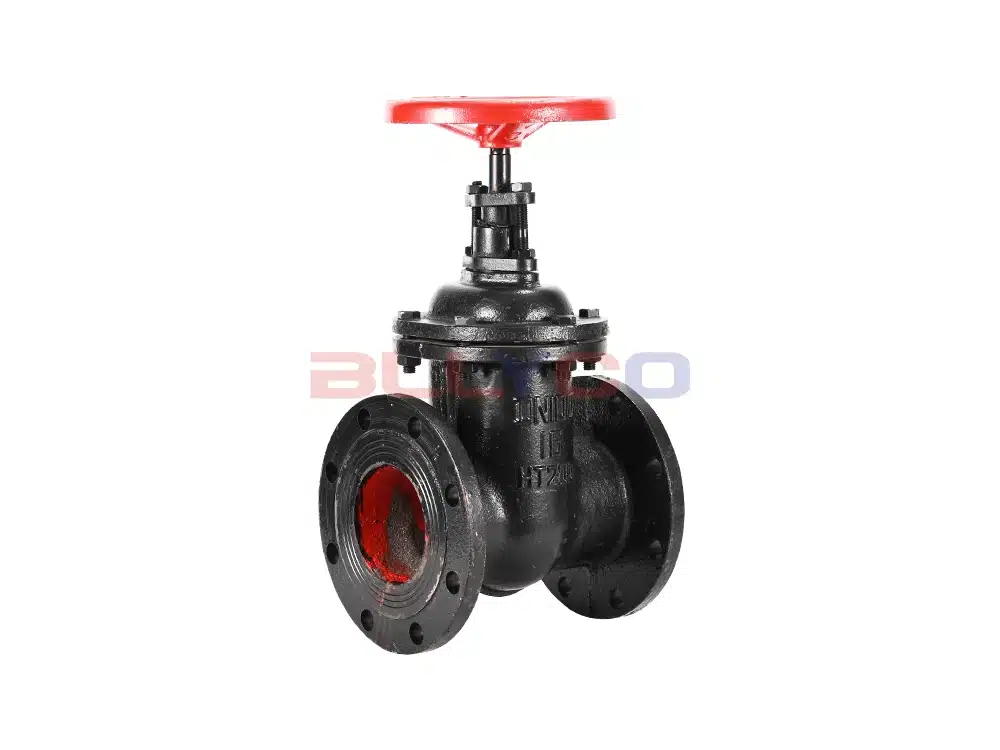

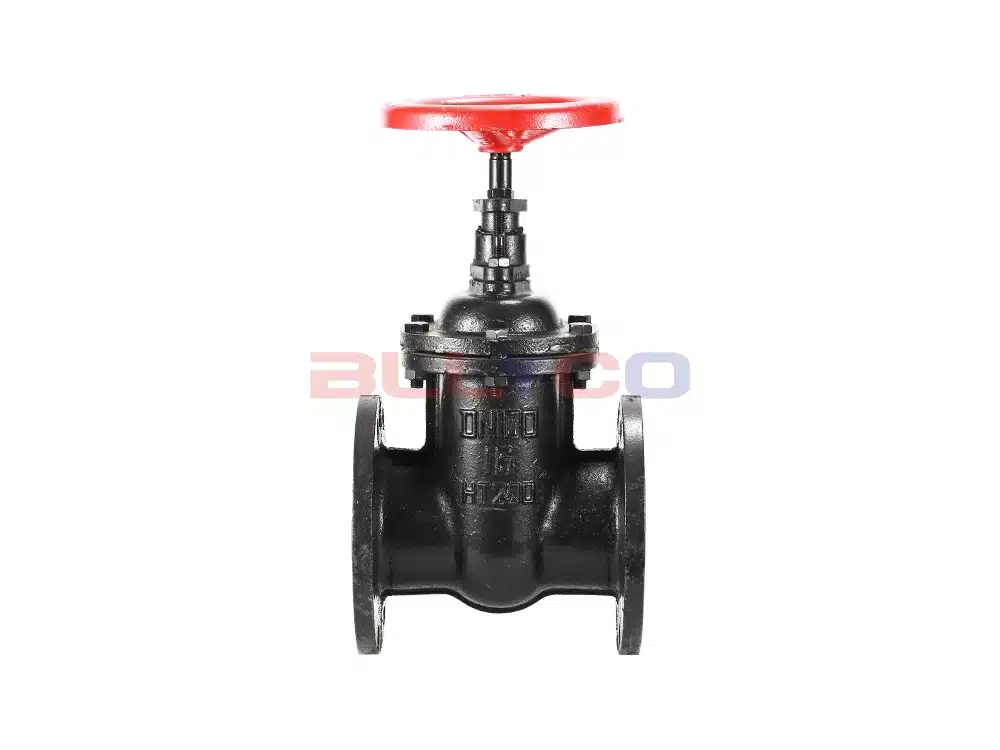

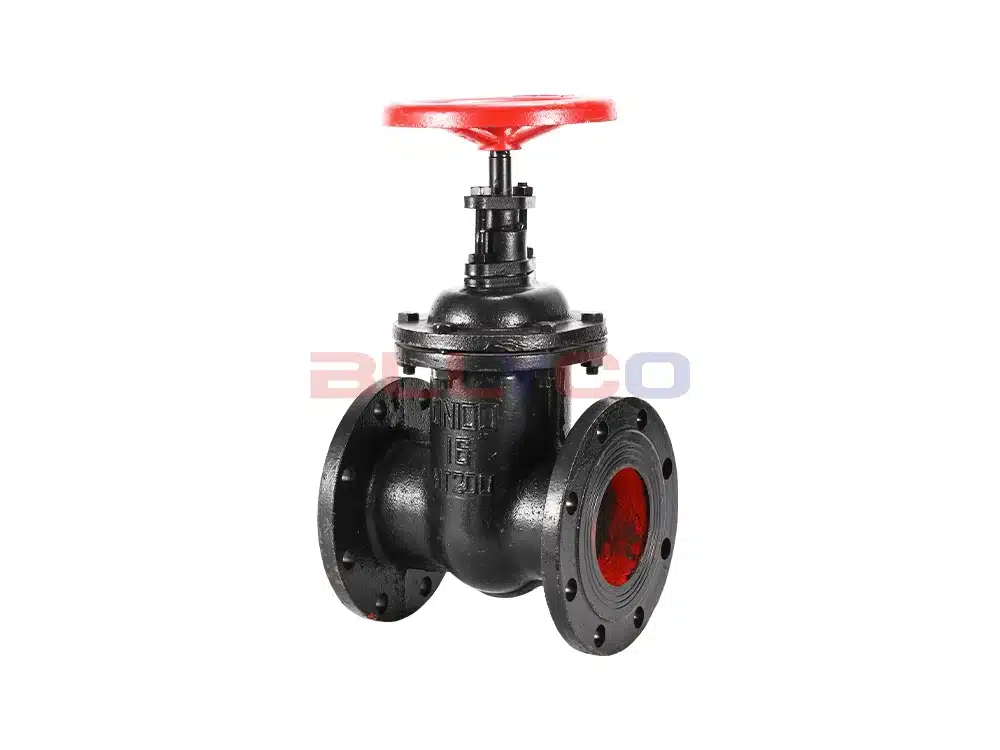

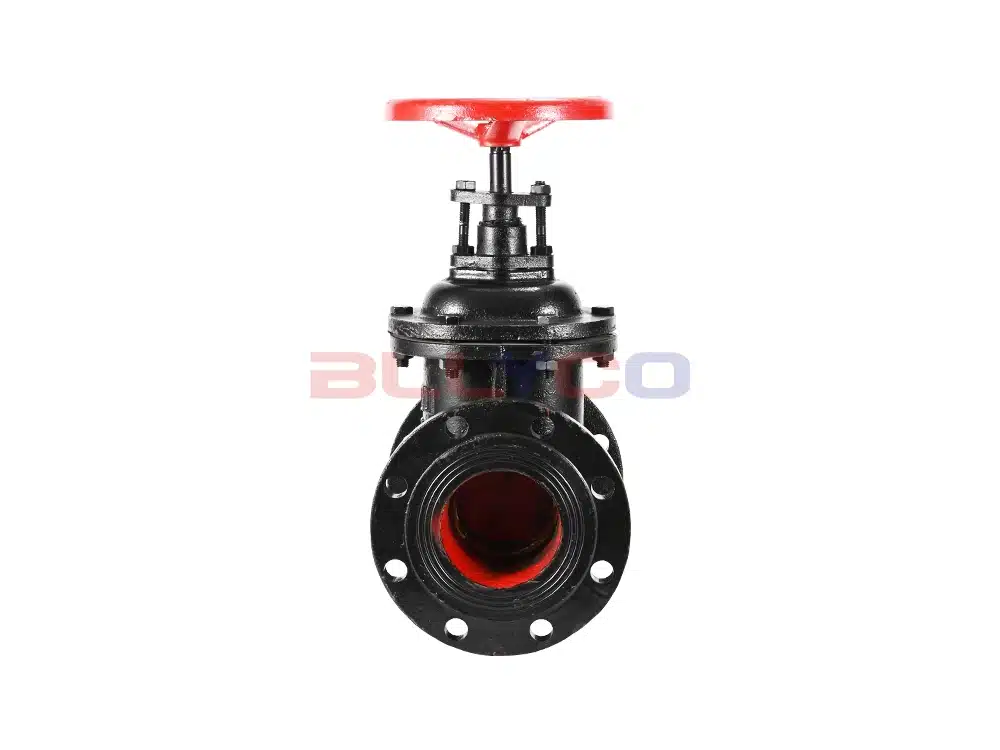

Z45T-16 copper core flange gate valve is a dark rod wedge gate valve, especially suitable for automatic sprinkler system and hydrant water supply system pipeline, but also in a variety of other water supply and drainage, petroleum, chemical and other pipelines to cut off the pipeline water flow. Widely used in water supply and drainage, gas, metallurgy, petroleum, chemical, pharmaceutical, electric power, textile and urban construction and other industries, in the nominal pressure ≤ 1.6MPa gas, water, oil media pipeline for opening and closing.
Product Features
- Compact structure, reasonable design, good valve rigidity, smooth channel, small flow resistance coefficient.
- The sealing surface is made of copper alloy for long service life.
- The valve adopts flexible graphite packing, reliable sealing, light and flexible operation.
Product Parameters
Product Model | Z45T-16 |
Valve Body Material | Grey Cast Iron |
Valve Flap Material | Gray Cast Iron + Brass |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Operating Temperature | ≤120°C |

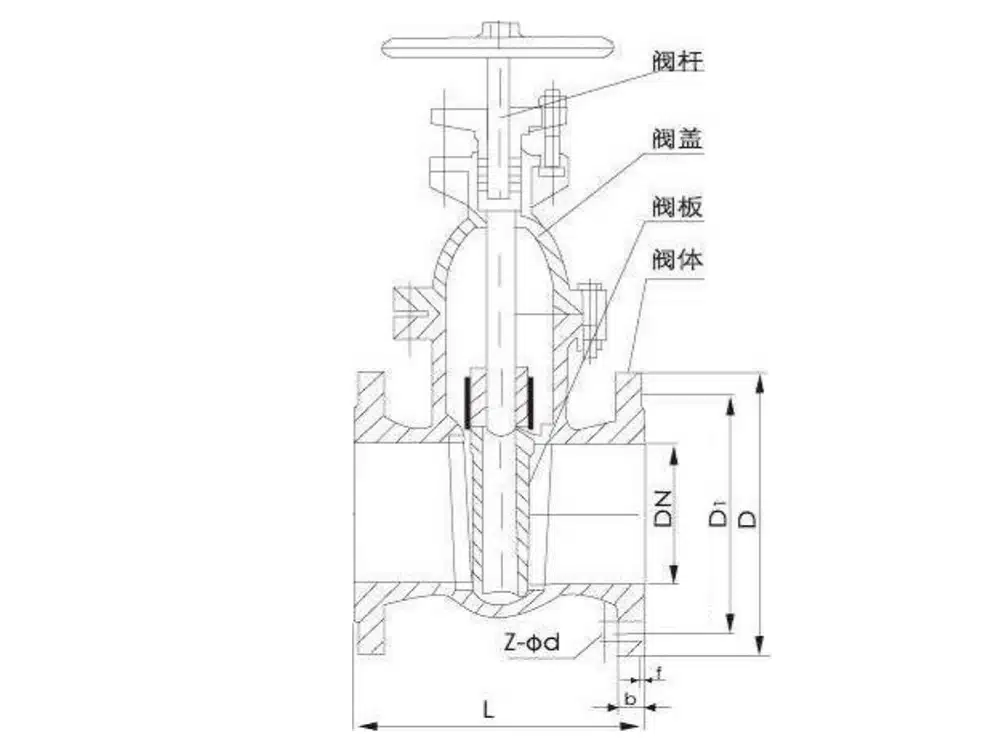

Product Size Reference
Nominal Diameter | L | D | D1 | z-d |
DN40 | 160 | 145 | 110 | 4-18 |
DN50 | 178 | 160 | 125 | 4-18 |
DN65 | 190 | 180 | 145 | 4-18 |
DN80 | 203 | 195 | 160 | 8-18 |
DN100 | 230 | 215 | 180 | 8-18 |
DN125 | 254 | 245 | 210 | 8-18 |
DN150 | 280 | 280 | 240 | 8-23 |
DN200 | 330 | 335 | 295 | 12-23 |
DN250 | 380 | 390 | 350 | 12-23 |
DN300 | 420 | 440 | 400 | 12-23 |
DN350 | 450 | 500 | 460 | 16-23 |
DN400 | 480 | 565 | 515 | 16-23 |
