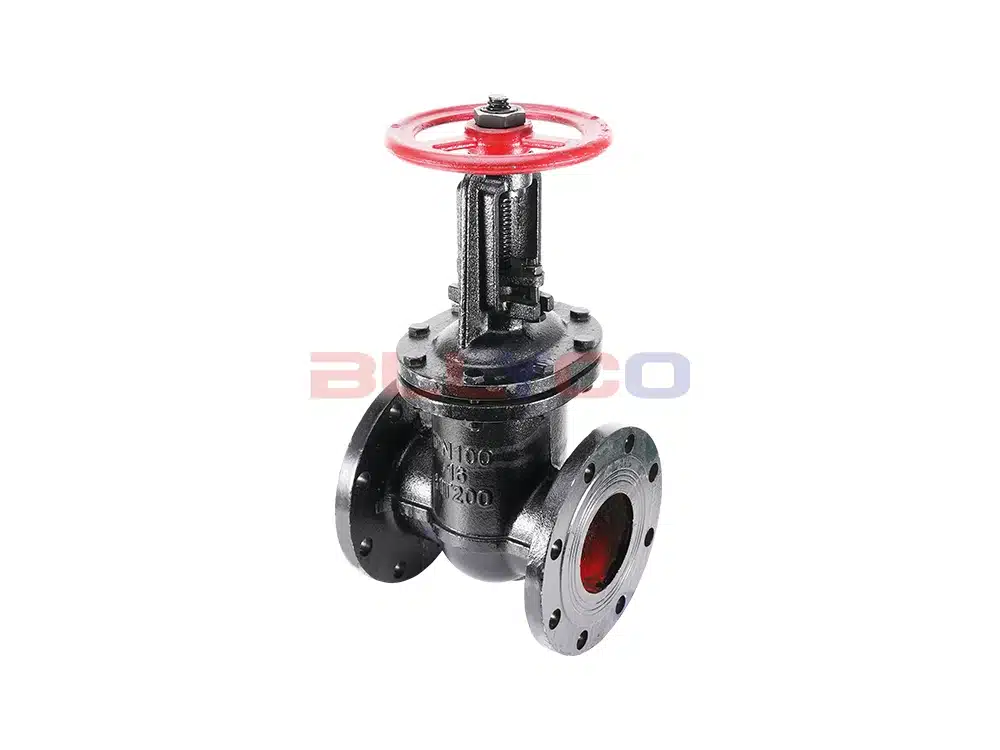

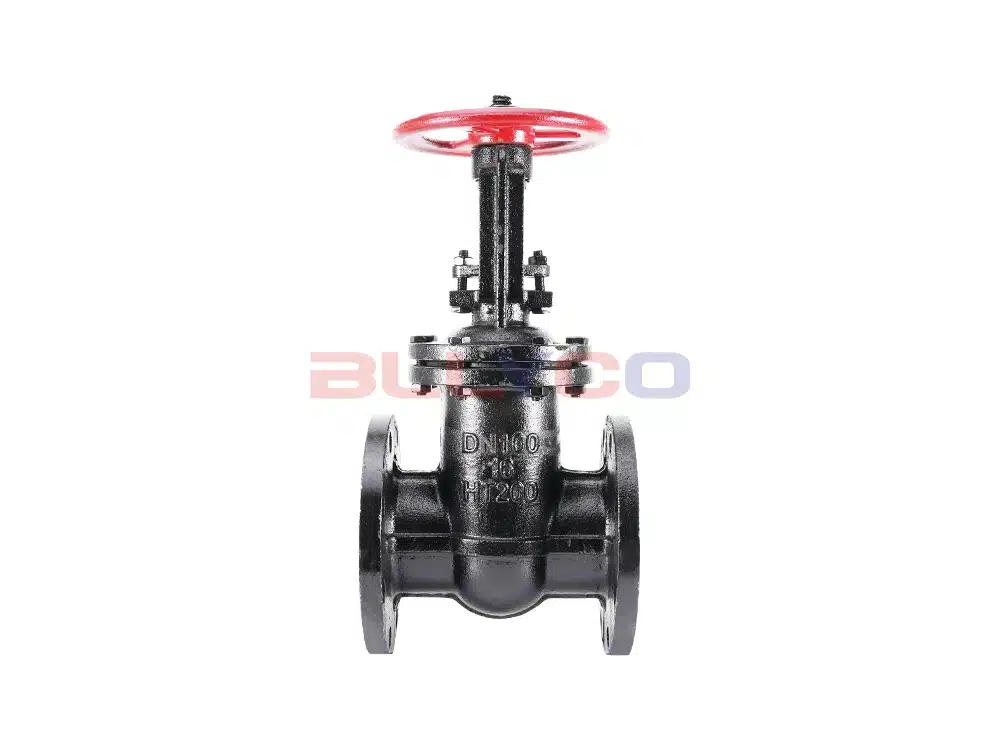

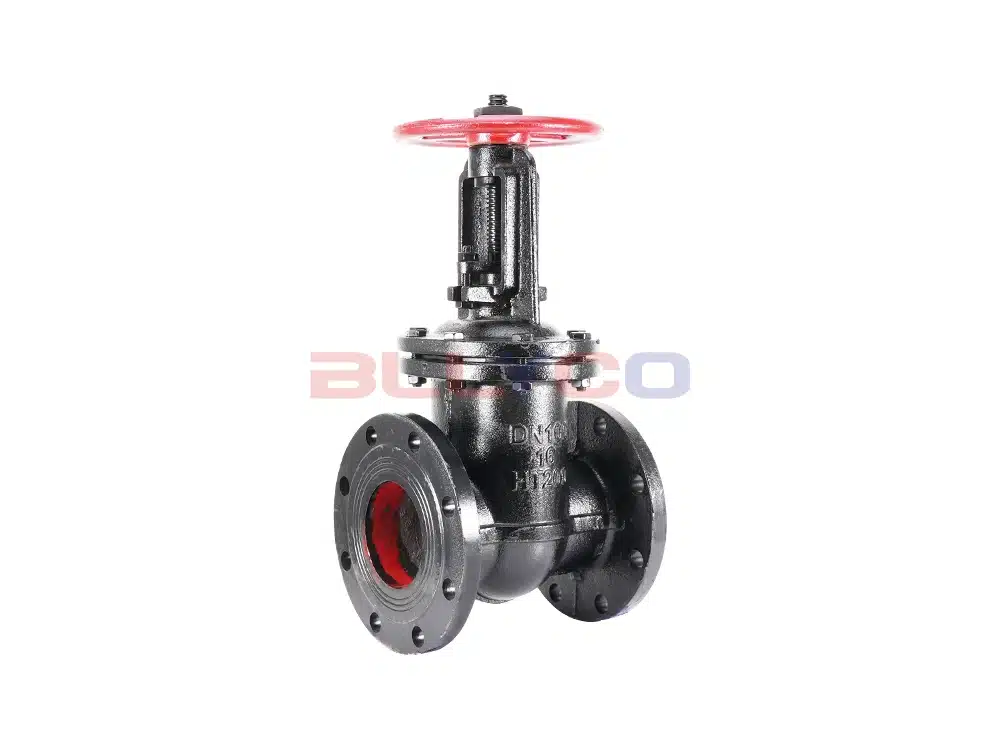

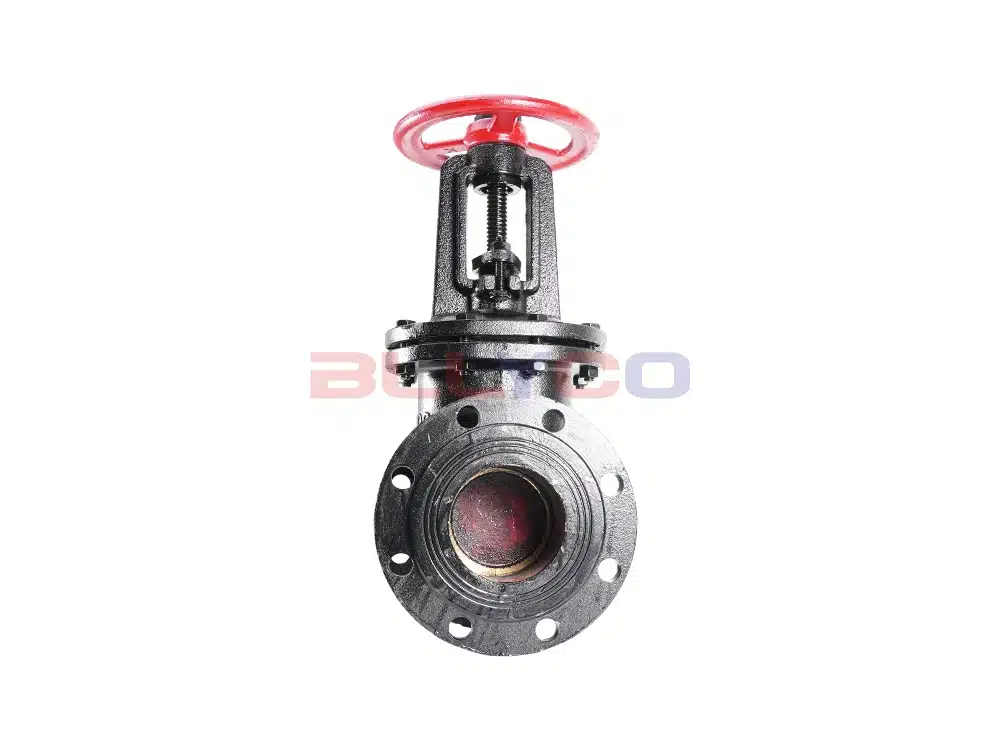

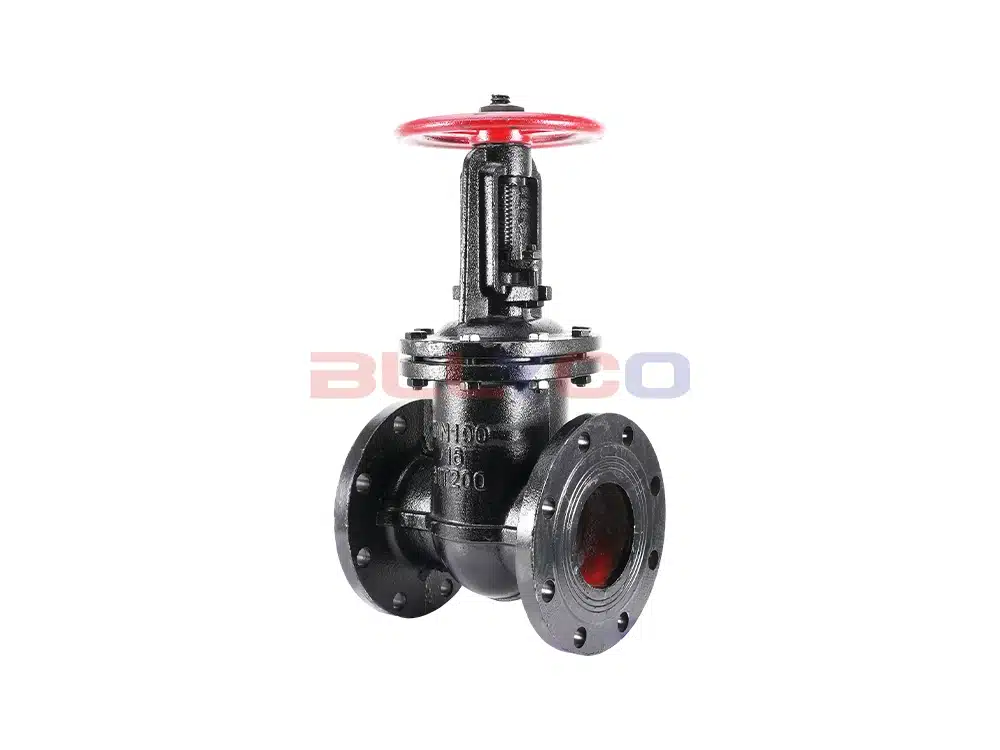

Z41T cast iron open rodFlange Gate ValvesSuitable for construction, environmental protection, water supply and drainage and other industries, in the nominal pressure ≤ 1.6MPa gas, water, oil media pipe for opening and closing.

Product Features

  • Compact structure, reasonable design, good valve rigidity, smooth channel, small flow resistance coefficient.
  • The sealing surface is made of copper alloy for long service life.
  • Adopting flexible graphite packing, reliable sealing, light and flexible operation.

Product Parameters

产品型号

Z41T-16

阀体材质

灰铸铁

阀瓣材质

灰铸铁堆焊黄铜

公称压力

≤1.6Mpa

适用介质

水、气、油品等

适用温度

≤120°C

Product Size Reference

通径

L

D

D1

n-d

D0

H (≈)

DN40

160

145

110

4-18

160

195~245

DN50

178

160

125

4-18

180

267~330

DN65

190

180

145

4-18

180

281~356

DN80

203

195

160

8-18

220

336~426

DN100

230

215

180

8-18

220

361~472

DN125

254

245

210

8-18

280

451~586

DN150

280

280

240

8-22

280

491~652

DN200

330

340

295

12-22

320

648~860

DN250

380

405

355

12-26

400

775~1040

DN300

420

460

410

12-26

400

946~1260
