Z73X slurry valve is a valve product specialized in cutting off and regulating the flow of liquid with solid particles. With its compact structure and easy installation, it can effectively prevent valve blockage caused by solid particles.Z73X slurry valve is widely used in pipeline systems containing solid-liquid mixtures such as coal slurry, slag, sewage, molasses and so on.
Product Features
- Compact, well-designed and easy to install.
- The sealing surface is made of hard alloy or 304 stainless steel, the valve has good steel, smooth channel, small flow resistance coefficient and long service life.
- Adopting soft graphite packing, reliable sealing, light and flexible operation, not easy to be blocked.
- The gate is knife-shaped to help prevent the settling of solid particles.
Product Parameters
Product Model | Z73X-10 |
Valve body material | Foundry Iron |
Valve plate material | Hard Alloy/304 Stainless Steel |
Nominal pressure | ≤1.0Mpa |
Applicable medium | Slurry, Lye, Water, etc. |
Applicable temperature | ≤80°C |

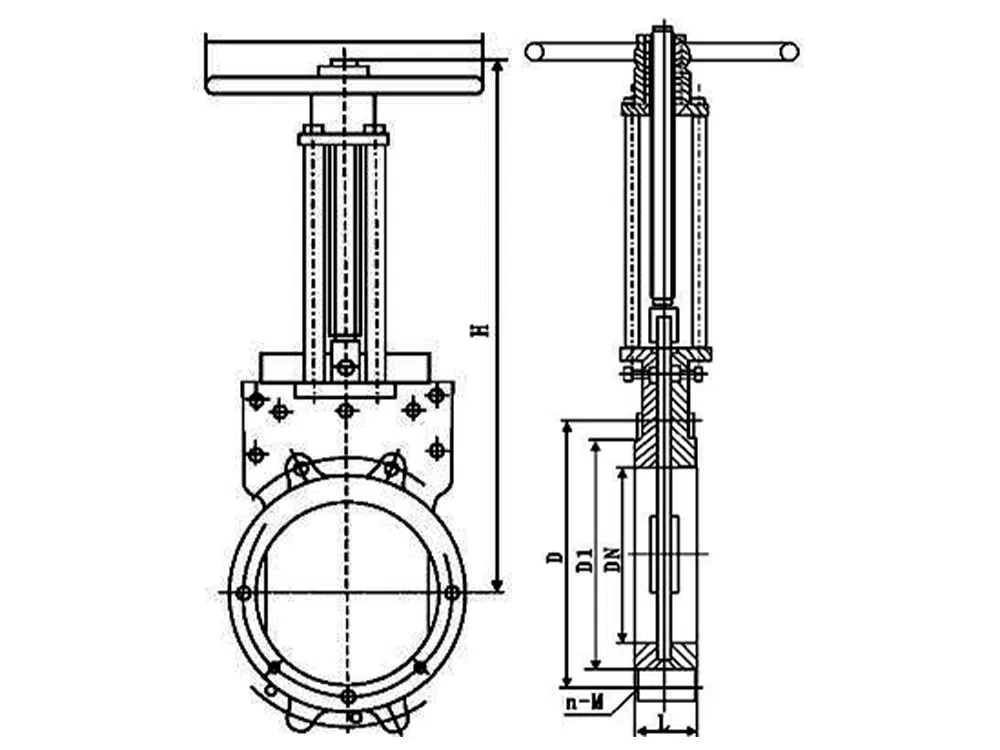

Product Size Reference
Nominal Diameter | L | D | D1 | H | n-M |
DN50 | 48 | 125 | 100 | 295 | 4-M16 |
DN65 | 48 | 145 | 120 | 305 | 4-M16 |
DN80 | 50 | 160 | 135 | 330 | 8-M16 |
DN100 | 50 | 180 | 155 | 380 | 8-M16 |
DN125 | 50 | 210 | 185 | 415 | 8-M16 |
DN150 | 60 | 240 | 210 | 490 | 8-M20 |
DN200 | 60 | 295 | 265 | 550 | 8-M20 |
DN250 | 70 | 350 | 318 | 693 | 12-M20 |
DN300 | 80 | 400 | 368 | 796 | 12-M20 |
DN350 | 80 | 460 | 430 | 895 | 16-M20 |
DN400 | 90 | 515 | 482 | 1004 | 16-M22 |
DN450 | 120 | 565 | 532 | 1110 | 20-M22 |
DN500 | 130 | 620 | 585 | 1210 | 20-M22 |
DN600 | 140 | 725 | 685 | 1460 | 20-M27 |
DN700 | 140 | 840 | 800 | 1680 | 24-M27 |
DN800 | 190 | 950 | 898 | 1910 | 24-M30 |
DN900 | 203 | 1050 | 1005 | 2130 | 28-M30 |
DN1000 | 216 | 1160 | 1115 | 2350 | 28-M30 |
DN1200 | 254 | 1380 | 1325 | 2650 | 32-M36 |
