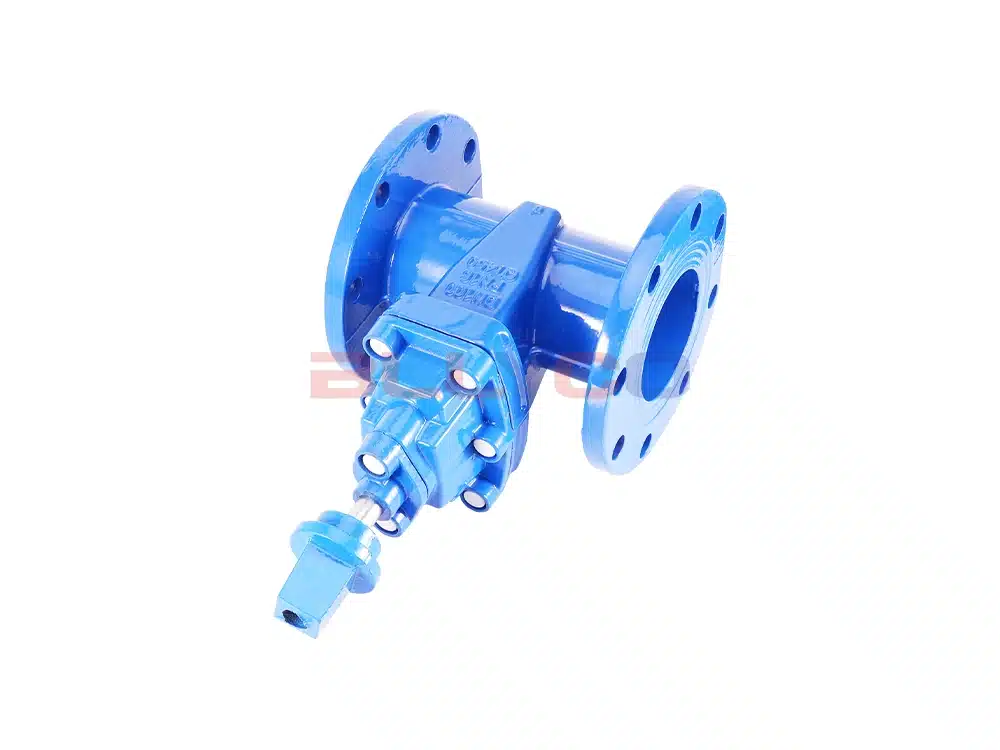

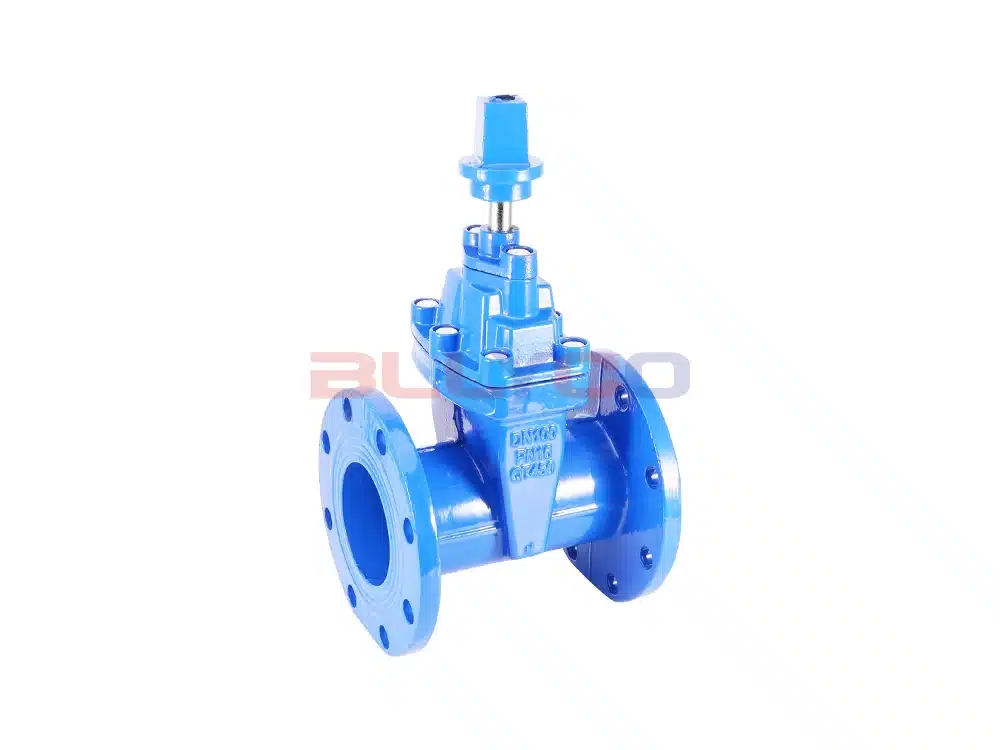

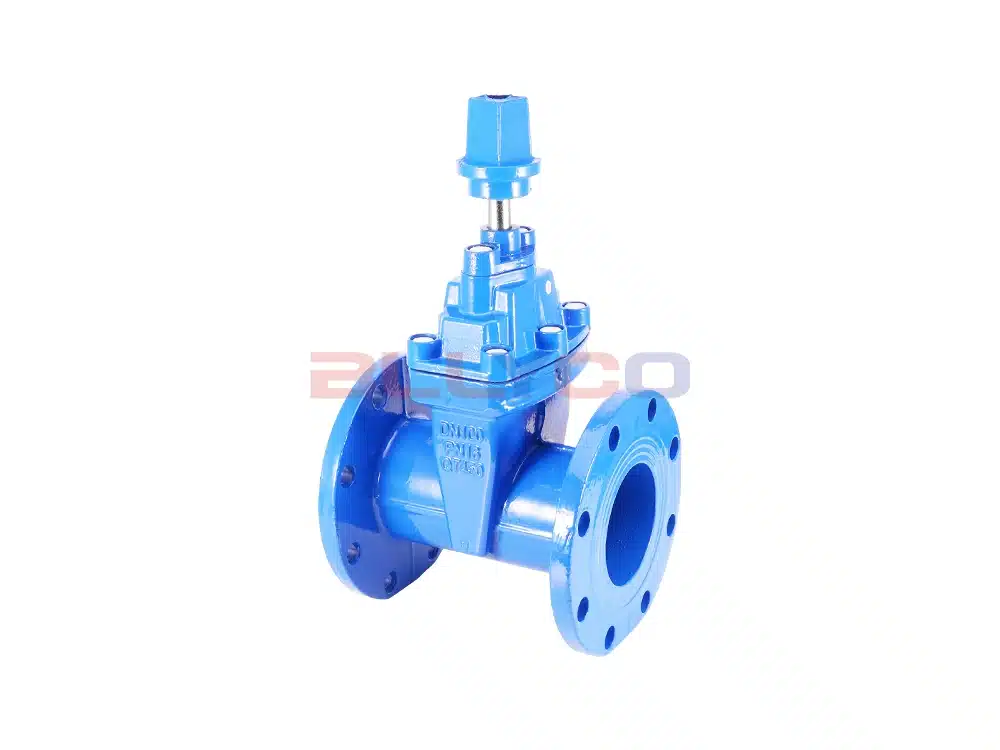

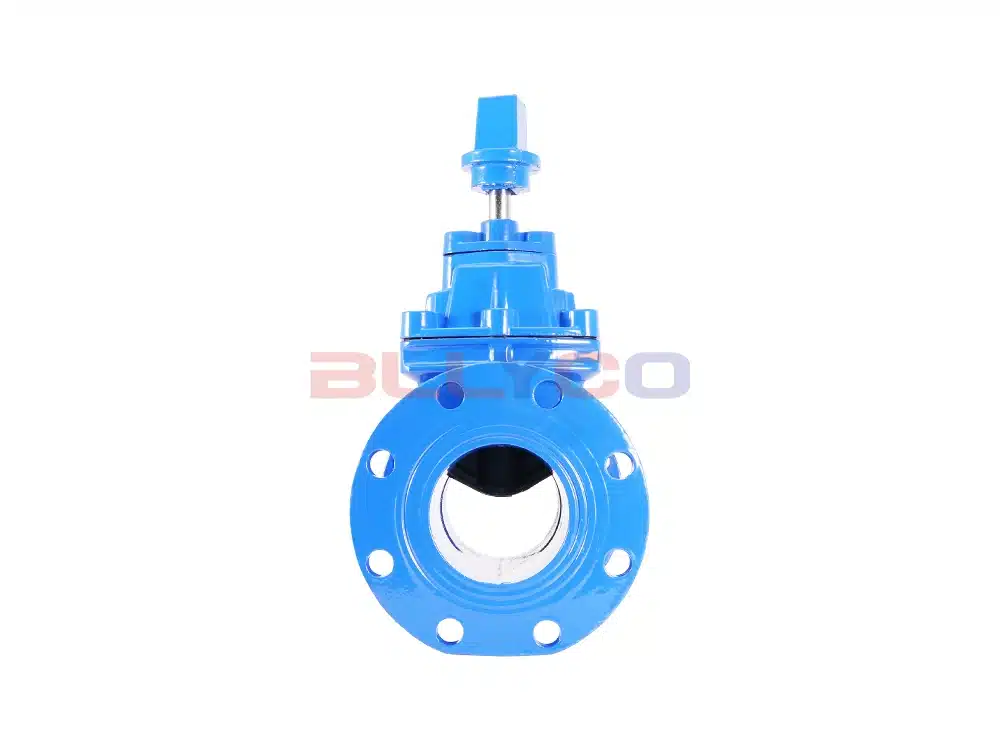

MZ45X underground soft seal gate valve is also called buried gate valve. It can be buried directly into the ground without the need to build manholes, which reduces the area of roadway excavation; the very small manhole chamber can keep the roadway beautiful, reduce the difficulty of construction, and reduce the cost of the project. Can be widely used in water, sewage, construction, petroleum, chemical, food, energy systems and other fluid pipelines as a regulator and interceptor.
Product Features
Underground Soft Seal Gate Valve is a soft seal gate valve with a drive lever installed on it, and the user opens and closes the gate valve by turning the drive lever on the ground. The advantages are as follows:
- Convenient installation: can be directly buried in the ground, no need to build manholes.
- Easy to open and close: use the drive lever on the ground to open and close.
- Ground subsidence will not affect the normal operation of the underground soft seal gate valve.
- Adopting socket type connection can effectively alleviate the adverse effect of ground settlement on the valve.
Product Parameters
Product Model | MZ45X-16Q |
Valve Body Material | Ductile Iron |
Valve Flap Material | Ductile Iron + NBR |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, etc. |
Operating Temperature | ≤80°C |
Product Size Reference
Nominal Diameter | L | H |
DN50 | 178 | 355 |
DN65 | 190 | 375 |
DN80 | 203 | 415 |
DN100 | 229 | 476 |
DN125 | 254 | 540 |
DN150 | 267 | 600 |
DN200 | 292 | 720 |
DN250 | 330 | 875 |
DN300 | 356 | 990 |
DN350 | 380 | 1050 |
DN400 | 405 | 1245 |
DN450 | 430 | 1310 |
DN500 | 455 | 1560 |
DN600 | 507 | 1750 |
