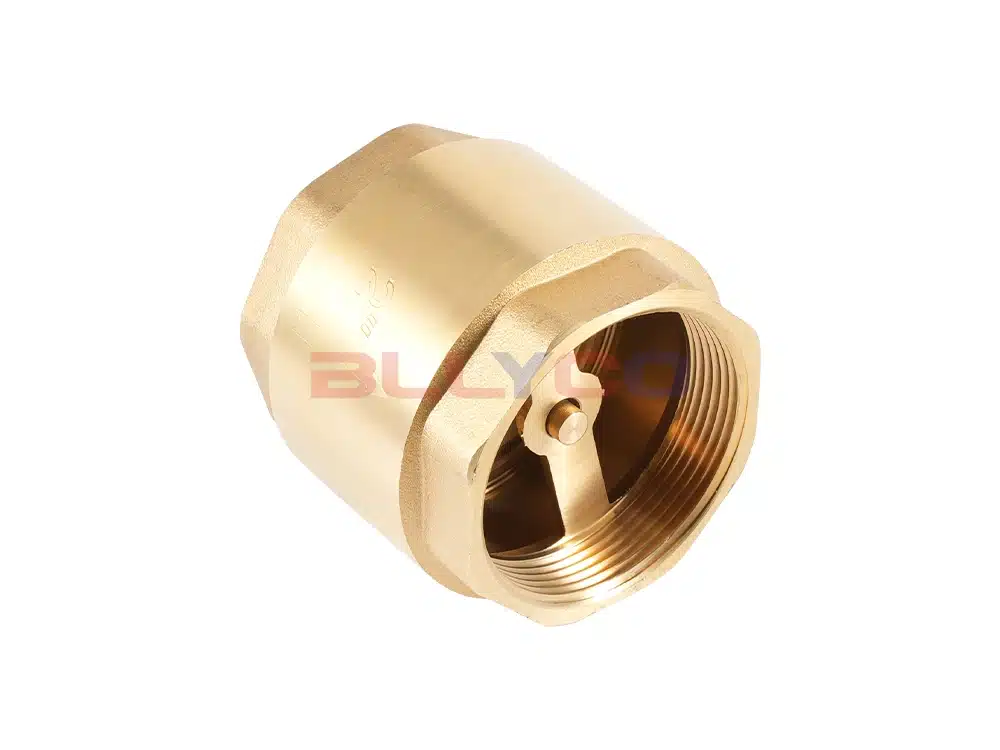

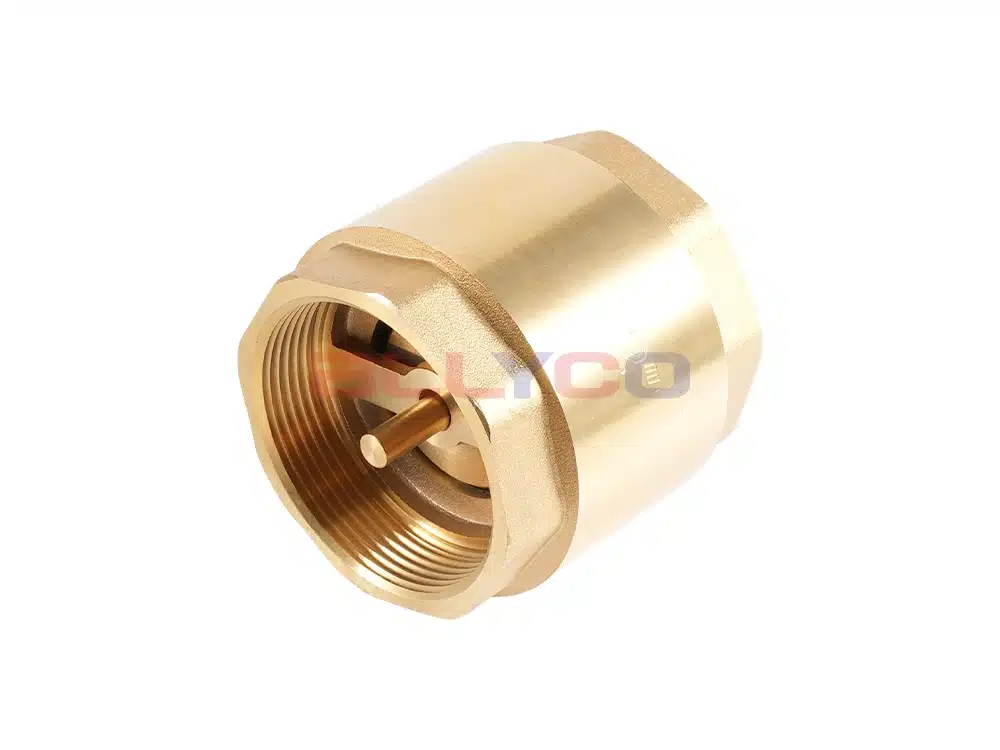

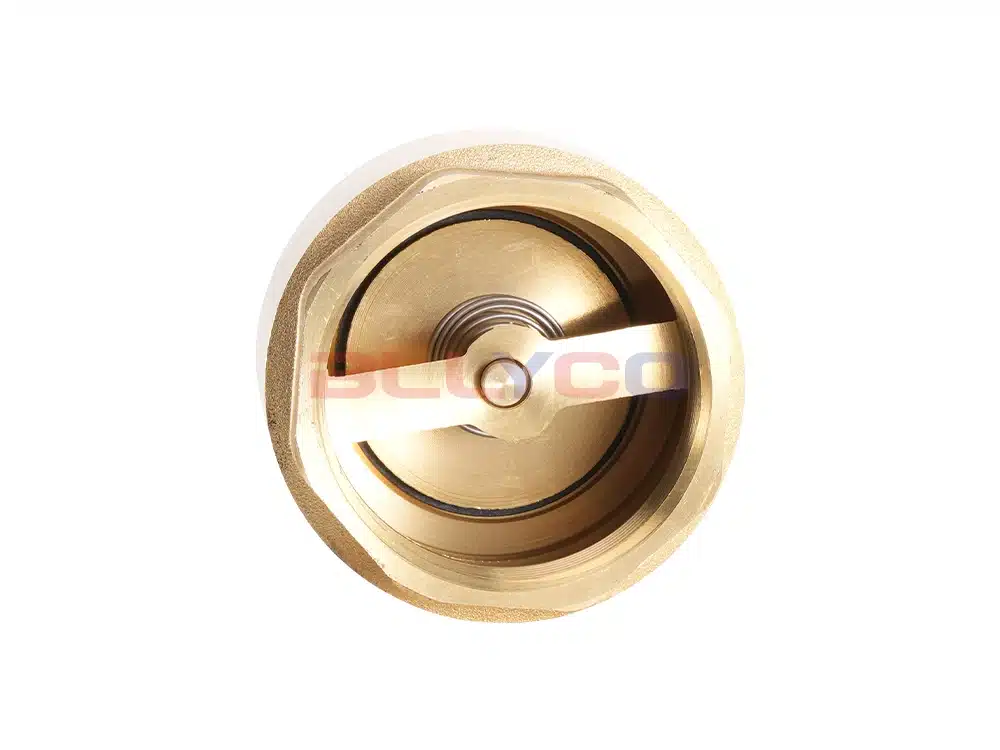

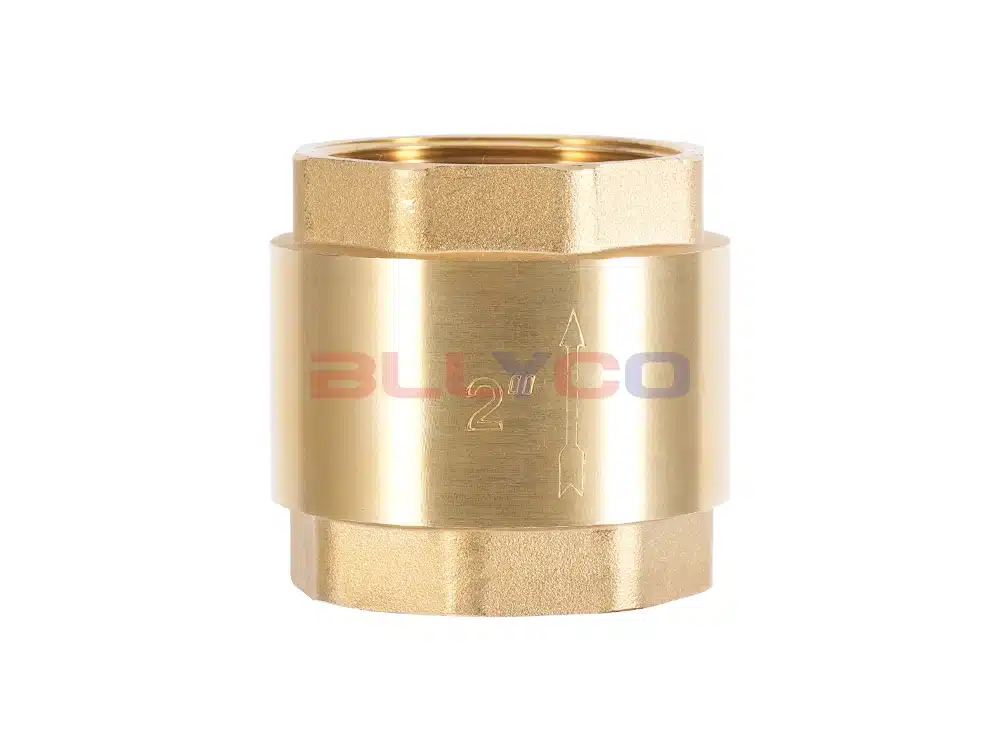

H12W-16T BrassVertical Check ValveIt is a type of valve that slides along the vertical centerline of the valve body.check valvesH12W-16T brass vertical check valve can be installed both vertically and horizontally on the pipeline, its fluid resistance coefficient is larger than that of rotary check valve, but the sealing is better than that of rotary check valve. High precision, beautiful appearance, small shape, with spring device, vertical and horizontal installation can be characterized. Mainly adapted to the pipeline system to prevent the medium backflow use.

Product Parameters

产品型号

H12W-16T

阀体材质

黄铜

公称压力

≤1.6Mpa

适用介质

水、气、油品等

适用温度

≤120°C

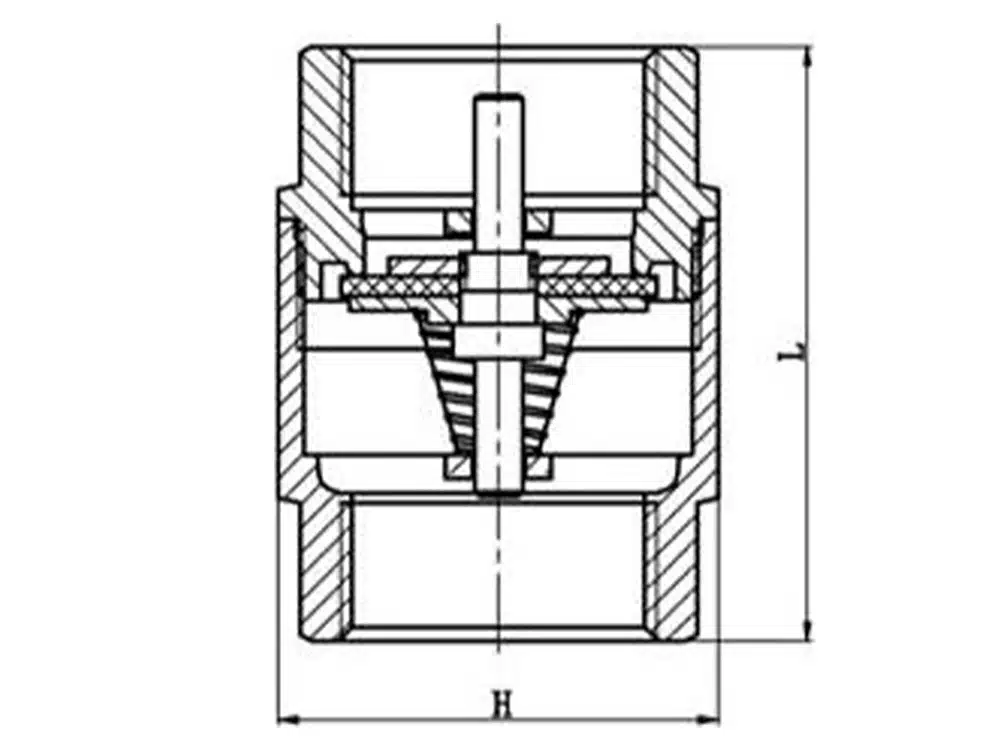

Product Size Reference

通径

SIZE

L

H

DN15

1/2

43

26

DN20

3/4

47

37

DN25

1

48

44

DN32

1-1/4

64

50

DN40

1-1/2

72

65

DN50

2

75

85

DN65

2-1/2

103

102

DN80

3

100

115

DN100

4

113

141
