D371F-16C butt-clamp PTFE butterfly valve is a kind of turbo butt-clamp butterfly valve, which is mainly used for system water supply and drainage. With compact structure, 90°swing switch, easy operation, reliable sealing and long service life, it is widely used in water supply and drainage of water plants, power plants, steel mills, papermaking, chemical industry, catering and other systems, mainly used for regulating and shut-off functions.
Product Features
- Compact structure: the use of clamping design, making the entire valve structure is compact, occupies little space, easy to install and maintain.
- Reliable sealing performance: the butterfly valve adopts soft sealing material, which ensures good sealing of the valve in the closed state and effectively prevents fluid leakage.
- Flexible rotation angle: the rotation angle of butterfly valve is 0°-90°, which can be precisely adjusted according to the need to realize the flexible control of flow.
Product Parameters
Product Model | D371F-16C |
Valve body material | Cast Steel |
Valve plate material | 304 Stainless Steel |
Rubber lining material | PTFE Polytetrafluoroethylene |
Nominal pressure | ≤1.6Mpa |
Applicable medium | Water, Gas, Oil, etc. |
Applicable temperature | ≤150°C |

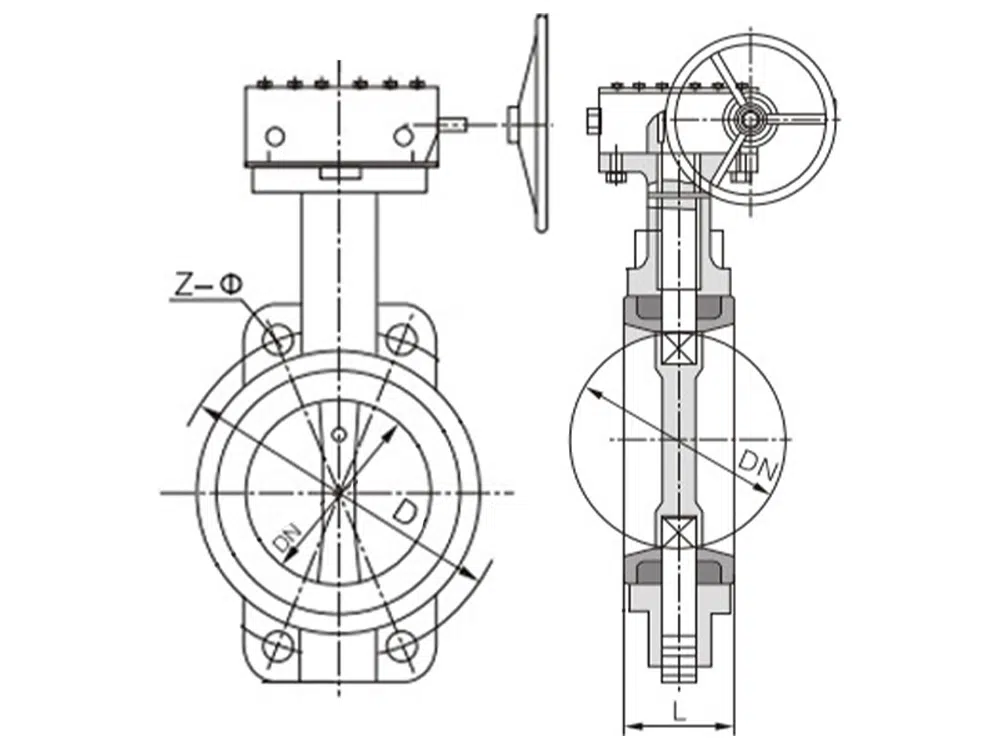

Product Size Reference
DN | L | D | Z-d |
50 | 42 | 125 | 4-23 |
65 | 44.7 | 145 | 4-26.5 |
80 | 45.2 | 160 | 8-18 |
100 | 52.1 | 180 | 4-24.5 |
125 | 54.4 | 210 | 4-23 |
150 | 55.8 | 240 | 4-25 |
200 | 60.6 | 295 | 4-25 |
250 | 65.6 | 355 | 4-29 |
300 | 76.9 | 410 | 4-29 |
350 | 76.5 | 470 | 4-30 |
400 | 86.5 | 525 | 4-30 |
450 | 105.6 | 585 | 4-30 |
500 | 131.8 | 650 | 4-33 |
600 | 152 | 770 | 4-36 |
