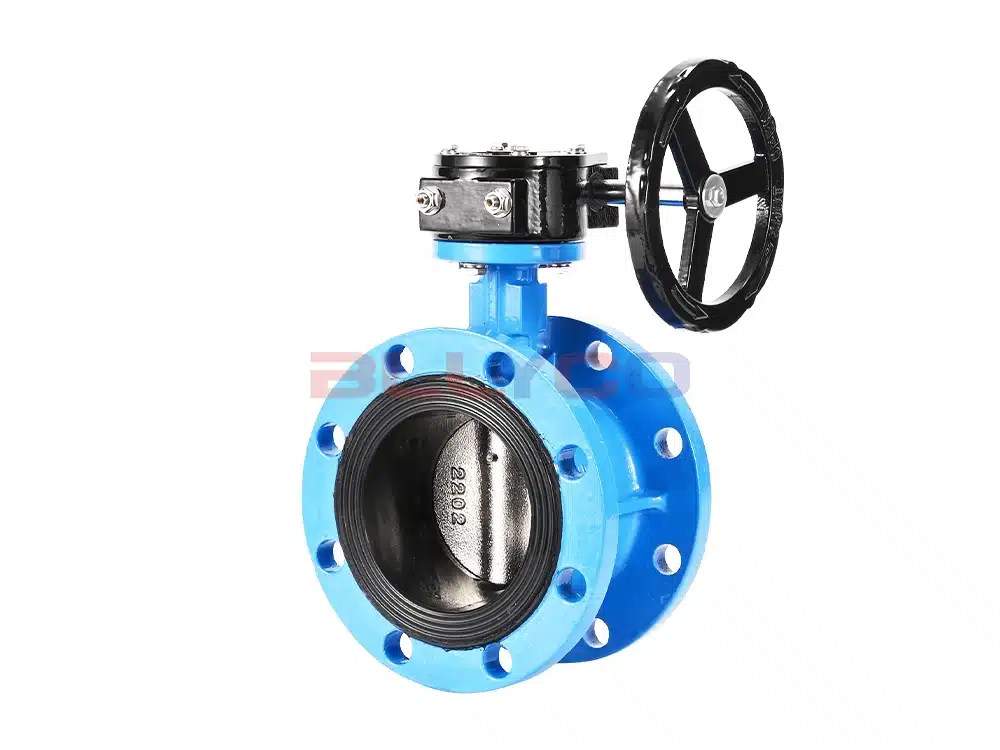

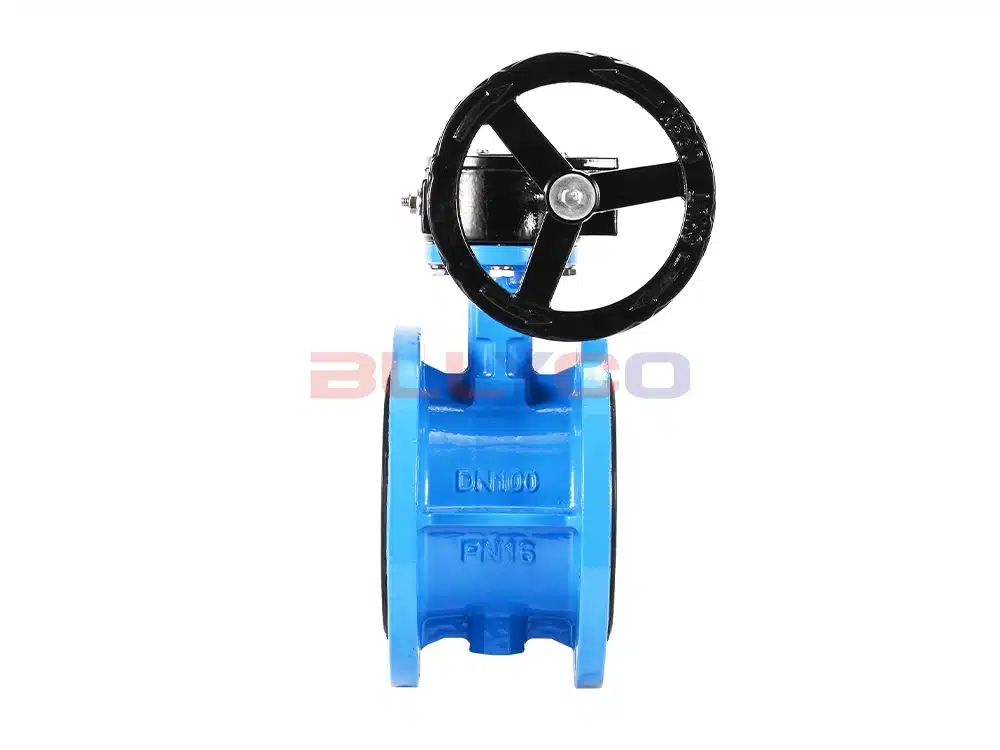

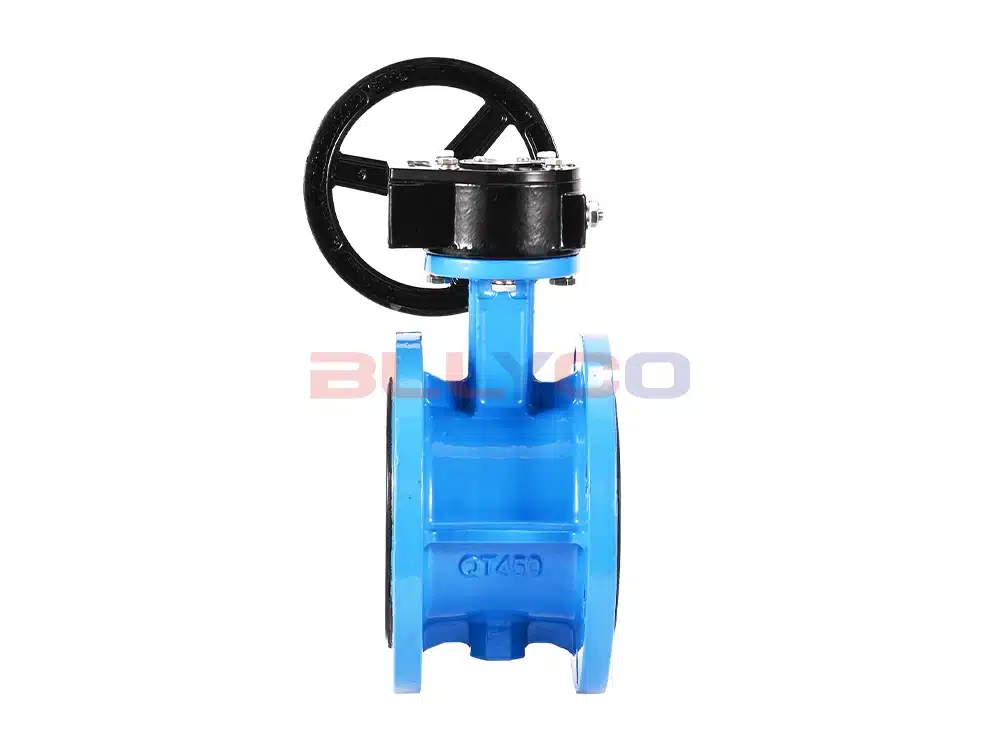

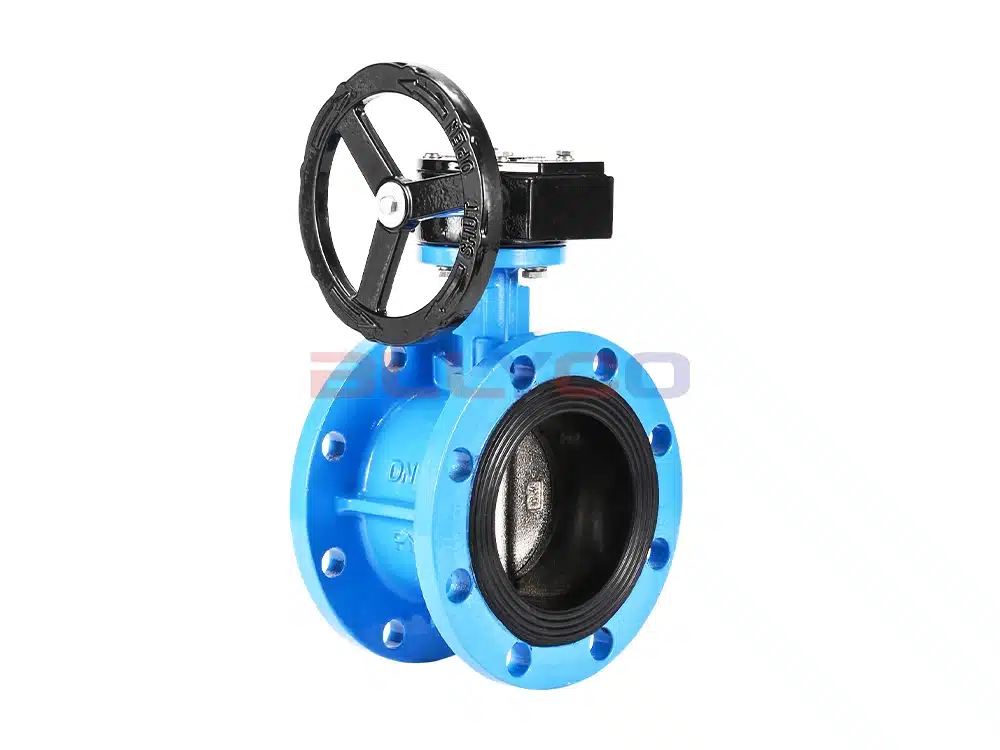

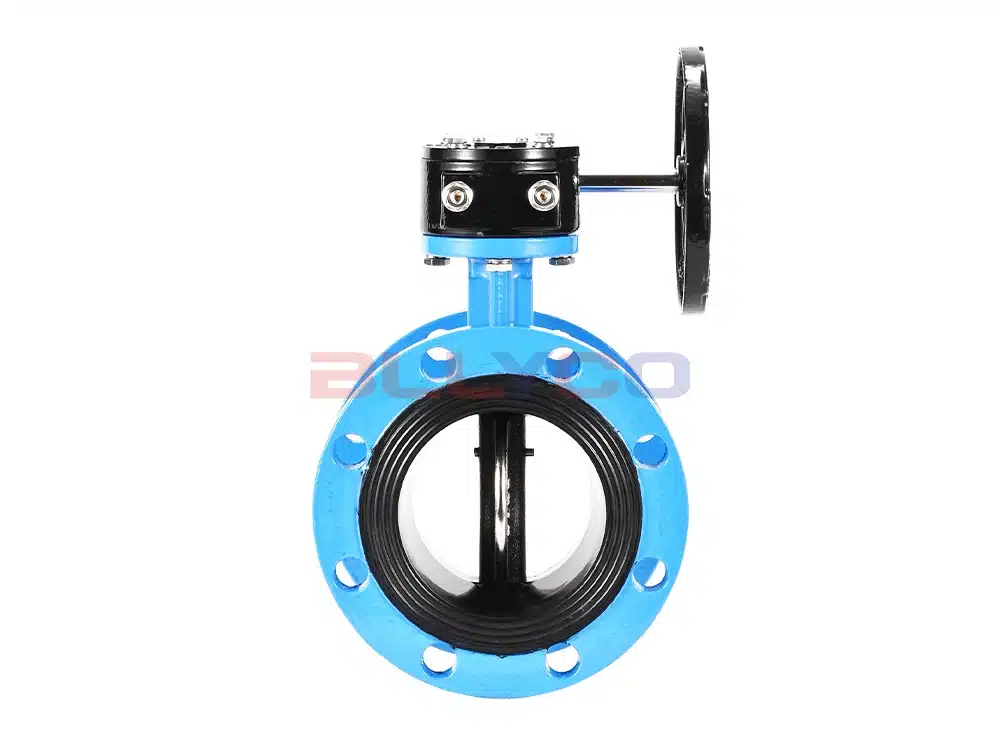

D341X-16Q Worm GearFlange Butterfly ValveSuitable for temperature ≤ 80 ℃, nominal pressure ≤ 1.6MPa food, medicine, chemical industry, petroleum, electric power, textile, paper and other water supply and drainage, gas pipeline for the purpose of regulating the flow rate and interception of the role of the medium.
Product Features
- Novel design, reasonable, special structure, light weight, rapid opening and closing.
- Small operating torque, easy to operate, labor-saving dexterity.
- Can be installed in any position, easy maintenance.
- Seals are replaceable and sealing performance is achieved in both directions.
- The sealing material is resistant to aging, weak corrosion, and long service life.
Product Parameters
产品型号 | D341X-16Q |
阀体材质 | 球墨铸铁 |
阀板材质 | 球墨铸铁/304不锈钢 |
衬胶材质 | NBR |
公称压力 | ≤1.6Mpa |
适用介质 | 水、气、油品等 |
适用温度 | ≤80°C |

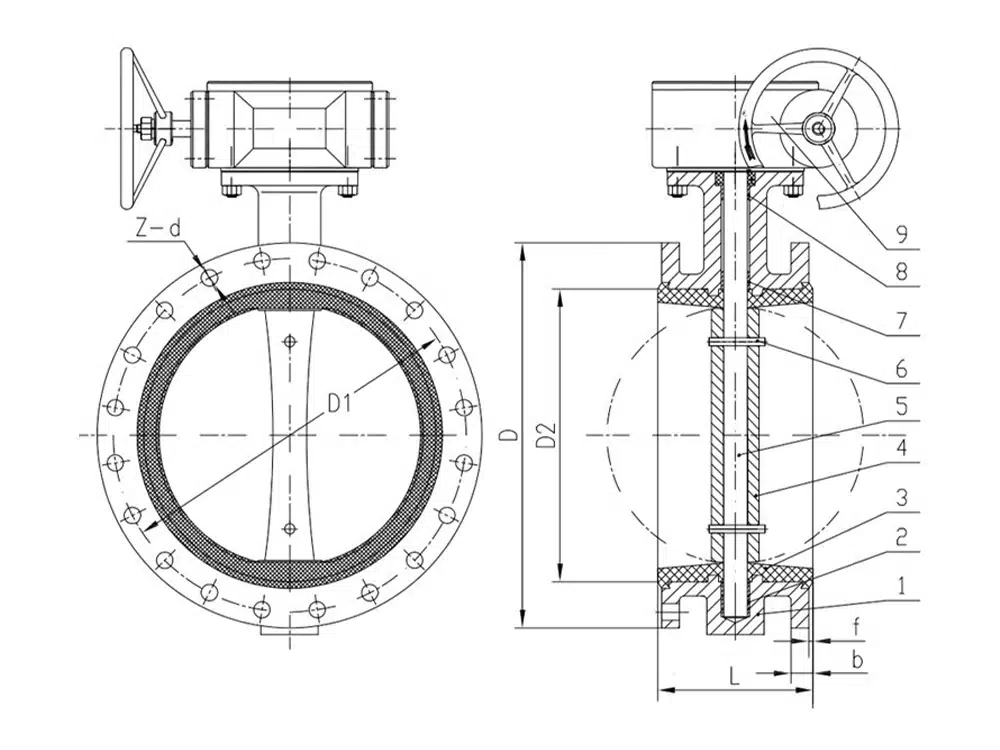

Product Size Reference
DN | L | D | D1 | D2 | b | f | z-d |
40 | 106 | 145 | 110 | 85 | 16 | 3 | 4-18 |
50 | 108 | 160 | 125 | 100 | 16 | 3 | 4-18 |
65 | 112 | 180 | 145 | 120 | 18 | 3 | 4-18 |
80 | 114 | 195 | 160 | 135 | 20 | 3 | 8-18 |
100 | 127 | 215 | 180 | 155 | 20 | 3 | 8-18 |
125 | 140 | 245 | 210 | 185 | 22 | 3 | 8-18 |
150 | 140 | 280 | 240 | 210 | 24 | 3 | 8-23 |
200 | 152 | 335 | 295 | 265 | 26 | 3 | 12-23 |
250 | 165 | 405 | 355 | 320 | 30 | 3 | 12-25 |
300 | 178 | 460 | 410 | 375 | 30 | 4 | 12-25 |
350 | 190 | 520 | 470 | 435 | 34 | 4 | 16-25 |
400 | 216 | 580 | 525 | 485 | 36 | 4 | 16-30 |
450 | 222 | 640 | 585 | 545 | 40 | 4 | 20-30 |
500 | 229 | 705 | 650 | 608 | 44 | 4 | 20-34 |
600 | 267 | 840 | 770 | 718 | 48 | 5 | 20-41 |
700 | 292 | 910 | 840 | 788 | 50 | 5 | 24-41 |
800 | 318 | 1020 | 950 | 898 | 52 | 5 | 24-41 |
900 | 330 | 1120 | 1050 | 998 | 54 | 5 | 28-41 |
1000 | 410 | 1255 | 1170 | 1110 | 56 | 5 | 28-48 |
