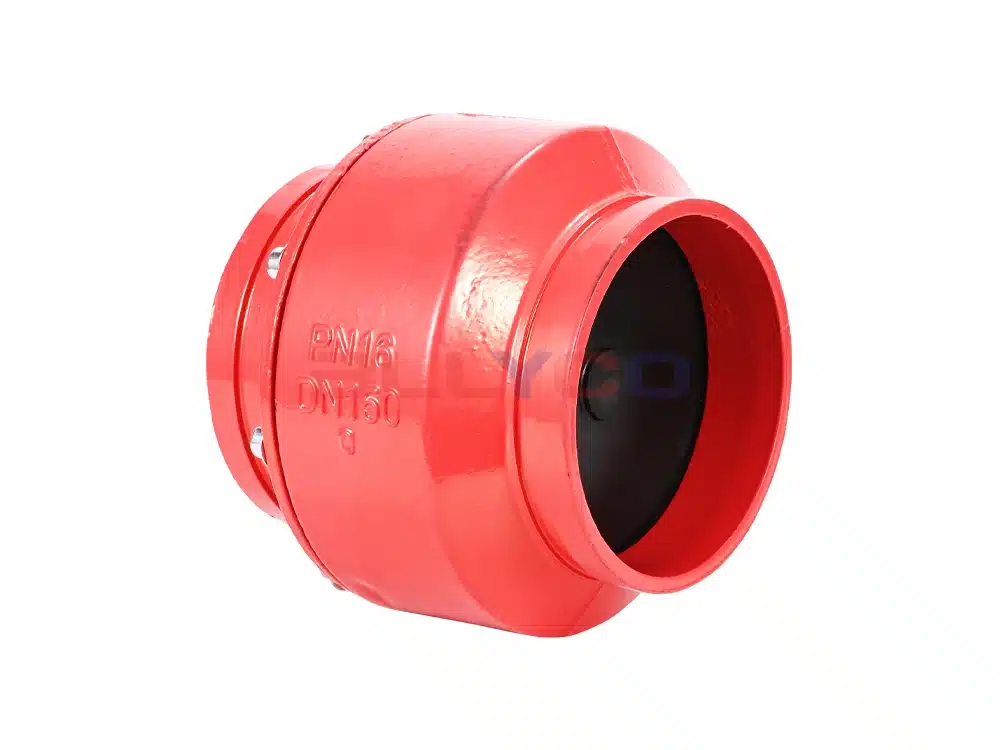

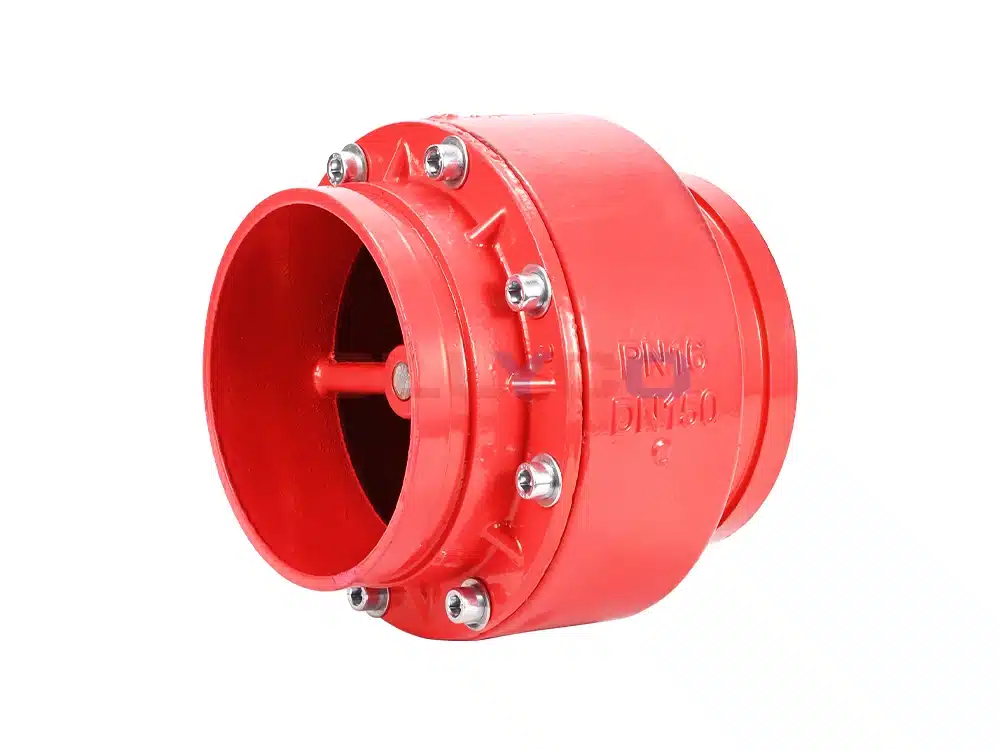

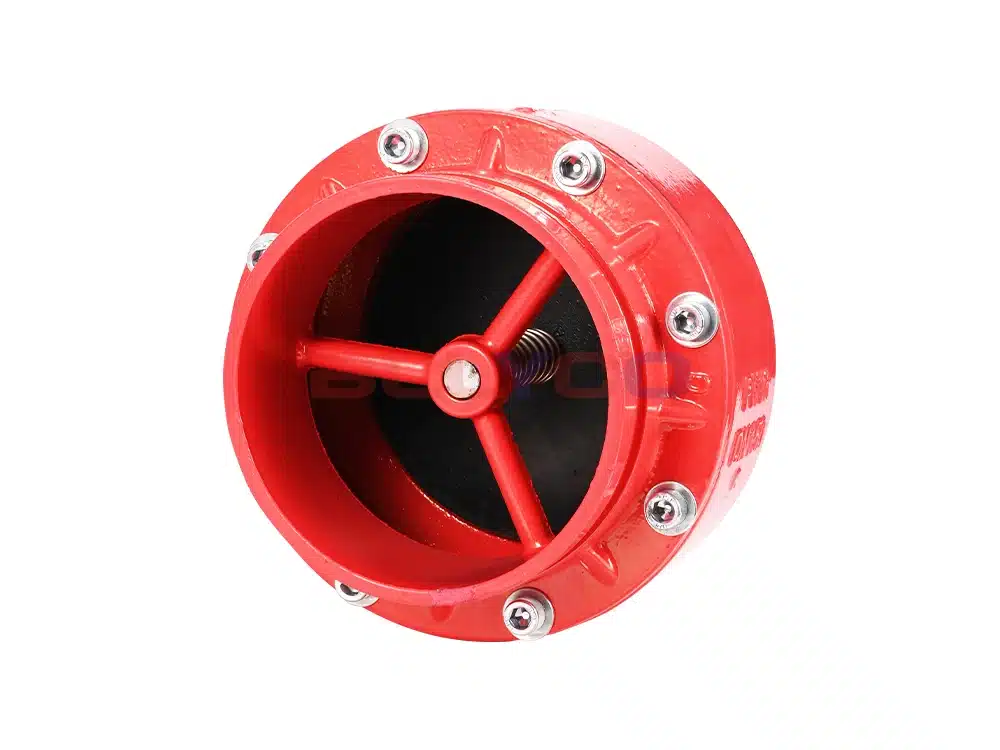

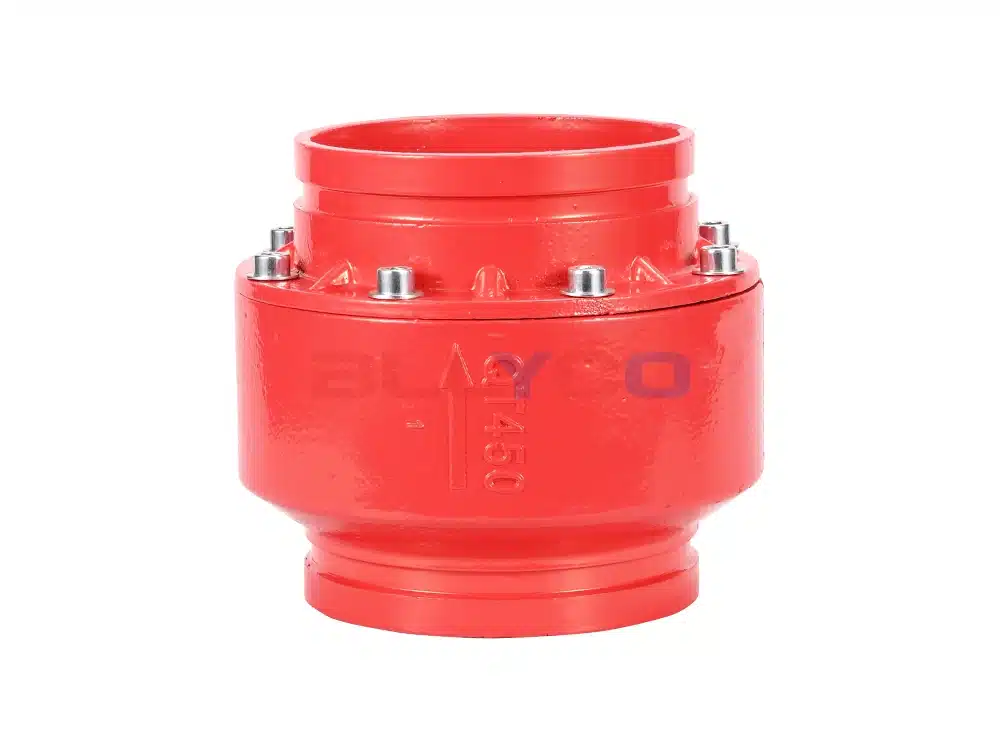

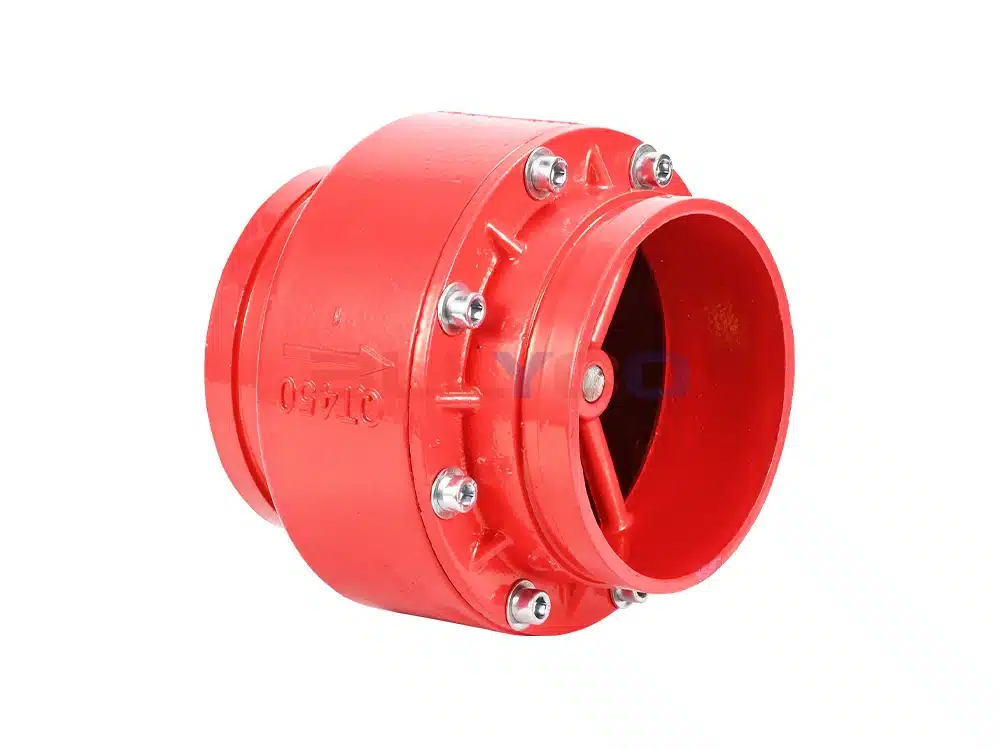

Ductile iron groove muffler check valve HC81X-16Q

HC81X GroovedSilencing check valveApply to the water supply system to prevent backflow of media on the pipeline, the Department of the realization of the one-way flow of media, there is pressure on the spool, so that the spring is compressed, the valve quickly open, when the media flow in the reverse direction, the spring pushes the spool pressure to the seat, the valve that is closed. HC81X muffler check valve's special design to ensure that the valve works smoothly, no vibration and noise when it closes, eliminating the other form ofcheck valvesWater hammering sound when closing.

Product Use

Used for all valves that prevent backflow of media in piping systems.

Working Principle

This valve to the center of the guide shaft differential pressure shuttle principle and spring assisted rapid (in advance) closure, pump start, the full water flow channel, reduce flow resistance, so that the system for effective work.

Product Parameters

Product Size Reference
