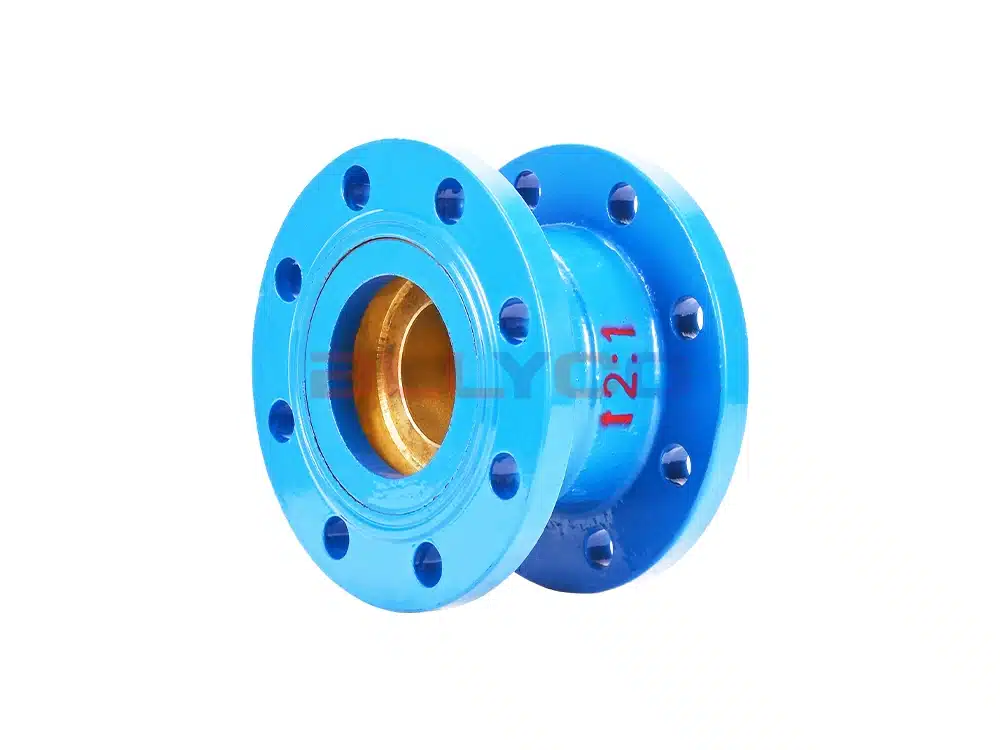

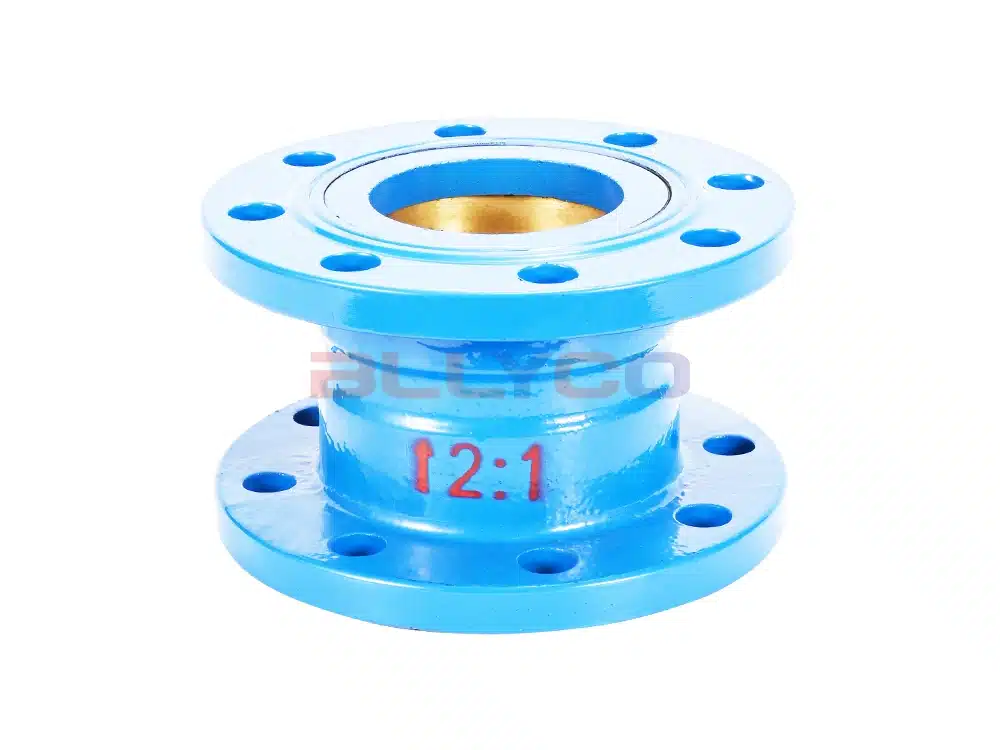

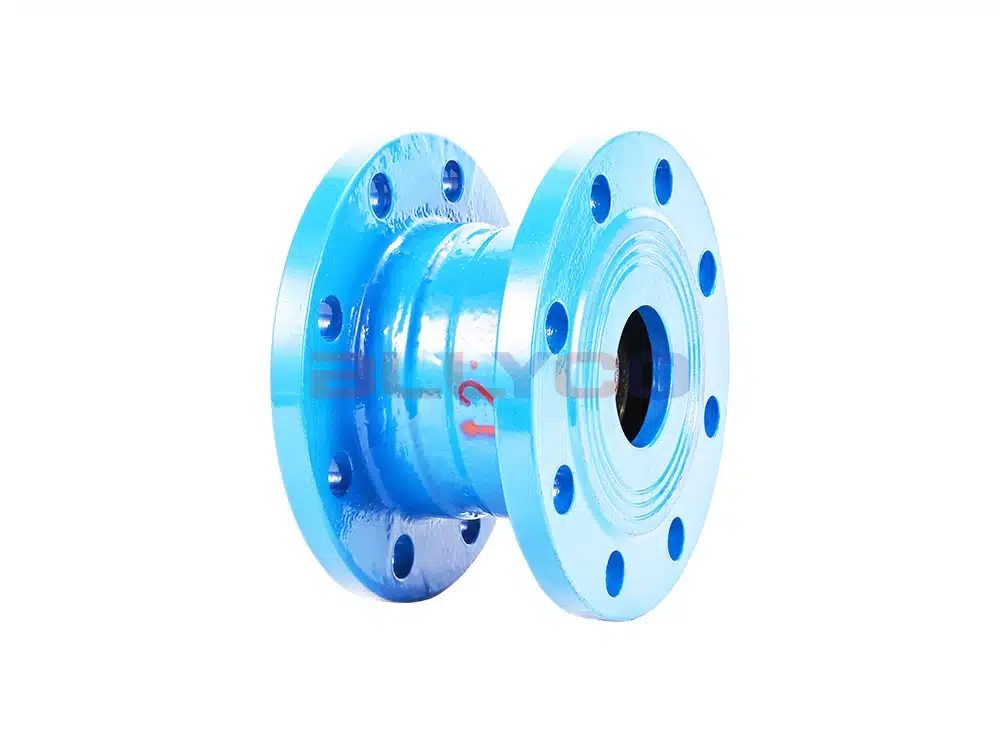

YB43X proportional pressure reducing valve is beautiful in appearance, reliable in quality, accurate in proportion, smooth in operation, reducing both dynamic and static pressure. The pressure reducing valve utilizes the pressure difference generated by the different carrier areas at both ends of the piston inside the valve body to change the pressure behind the valve and achieve the purpose of pressure reduction. The pressure reducing ratio of proportional pressure reducing valve is 2:1, 3:1, 4:1, 3:2, 5:2, etc. Special proportions can also be designed according to customer requirements.
Product Characteristics
- Simple structure by using hydraulic principle to control the adjustment.
- Decompression ratios are accurate for high volume traffic.
- Reduce both dynamic and static pressure.
- Smooth operation without noise, no vibration, reduce water hammer, protect the pipe network.
- Suitable for horizontal or vertical installation.
- Light weight, small size, easy to install and maintain.
Product Parameters
Product Model | YB43X-16Q |
Valve Body Material | Ductile Iron |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, etc. |
Operating Temperature | ≤80°C |

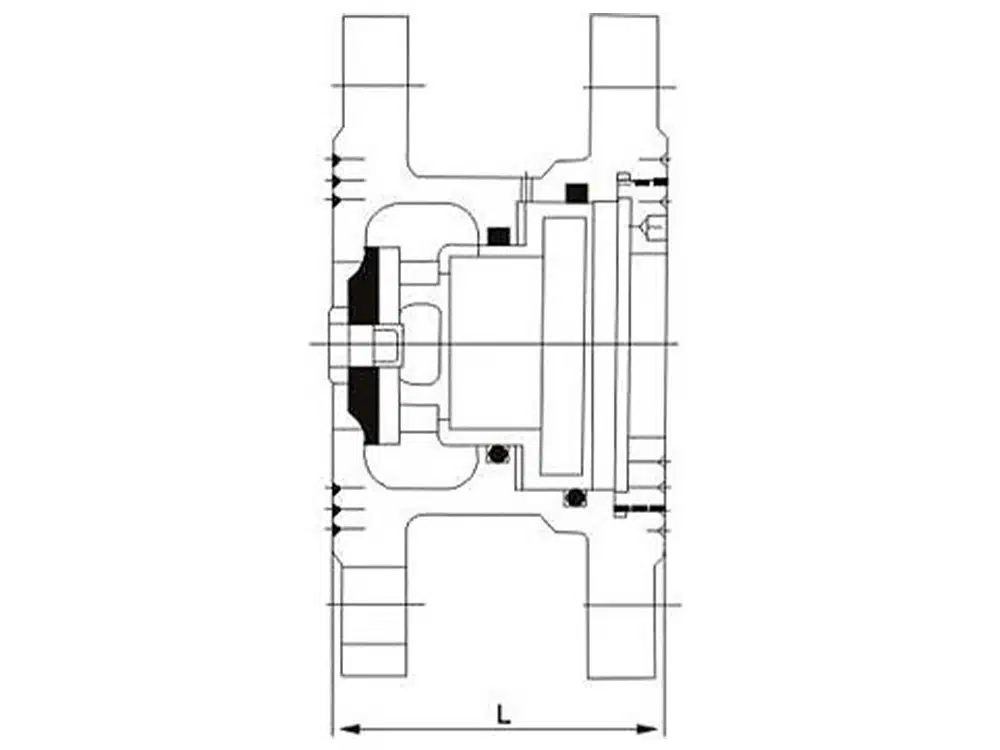

Product Size Reference
Nominal Diameter | L |
DN40 | 95 |
DN50 | 95 |
DN65 | 100 |
DN80 | 110 |
DN100 | 115 |
DN125 | 130 |
DN150 | 180 |
DN200 | 230 |
