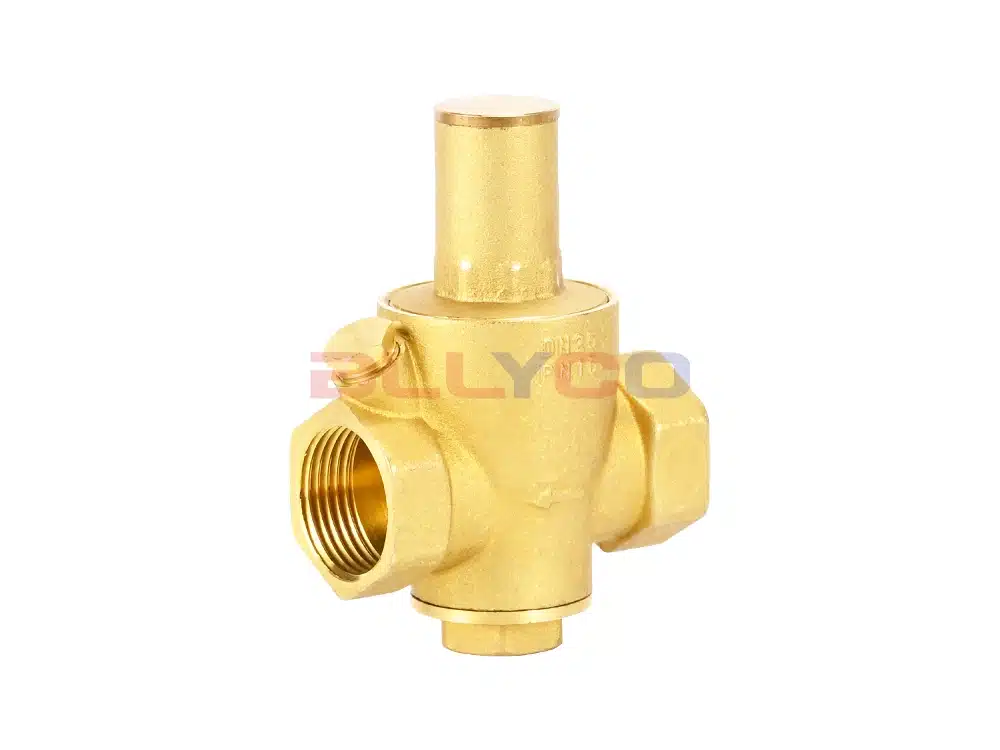

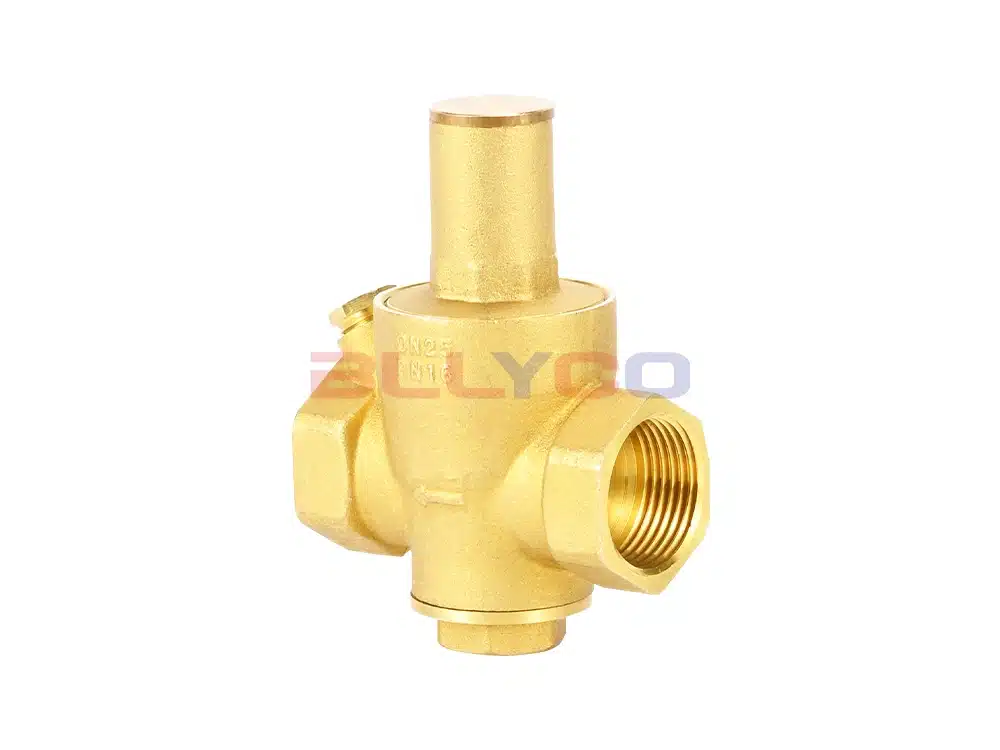

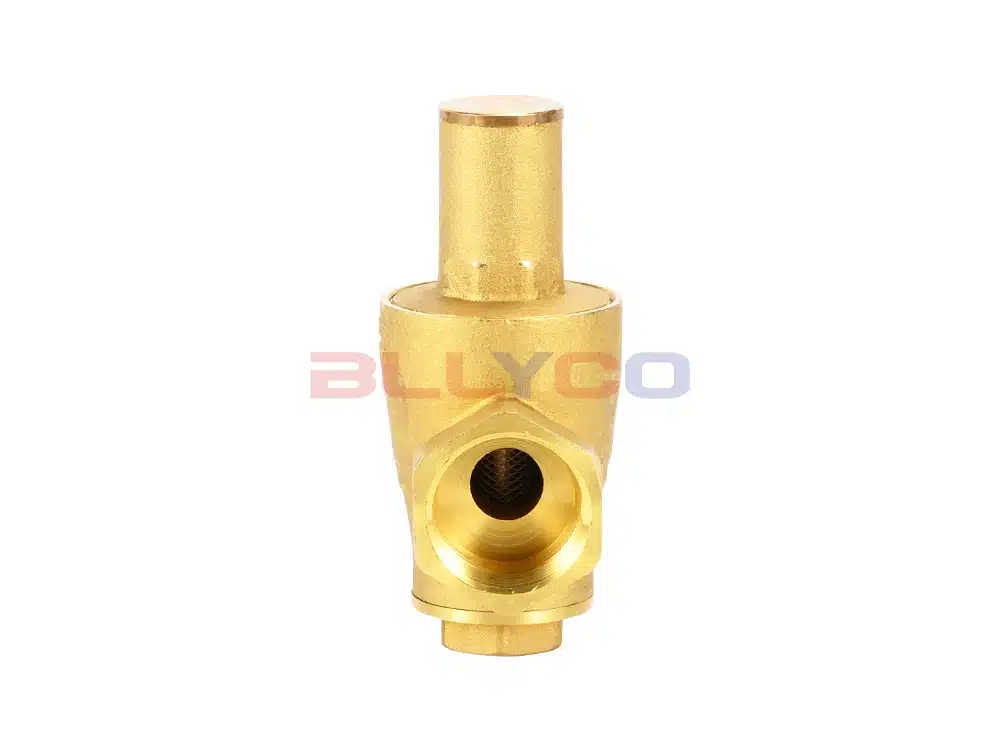

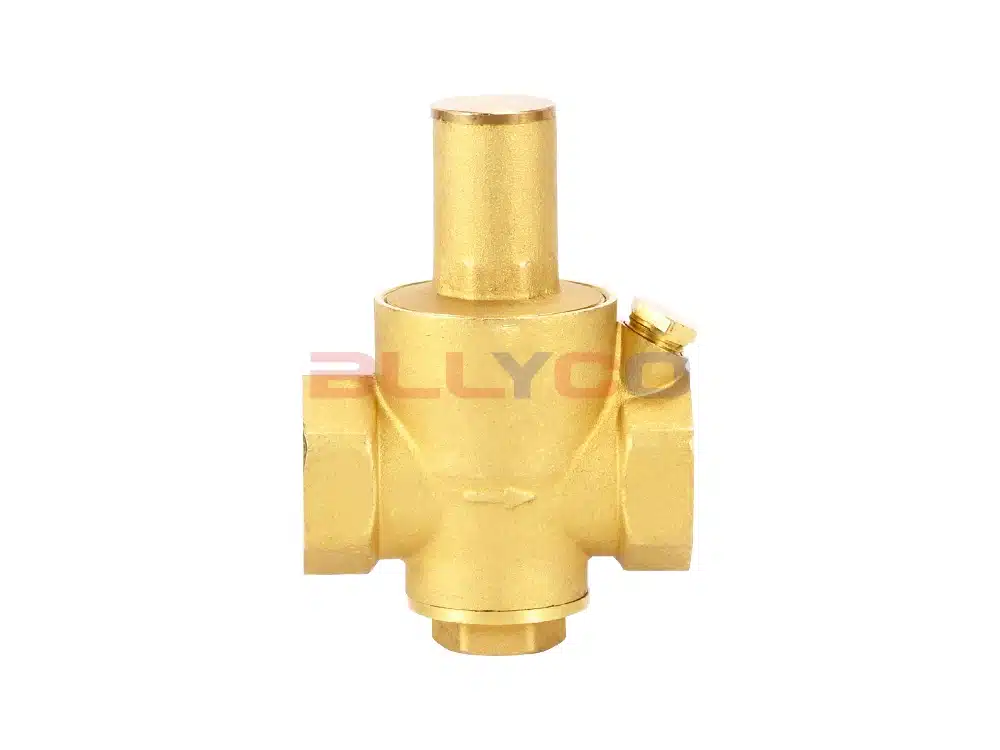

Brass piston pressure reducing valve is used to control the opening of the valve body to regulate the flow of the medium to reduce the pressure of the medium. Pressure reducing valve at the same time with the role of the pressure after the valve to adjust the opening of the opening and closing parts, so that the pressure after the valve to maintain in a certain range, in the case of constant changes in inlet pressure, brass piston pressure reducing valve to maintain the outlet pressure in the set range, to protect its life after the production of appliances.
Product Parameters
Product Model | Y13X-16T |
Valve Body Material | Brass |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, etc. |
Operating Temperature | ≤80°C |

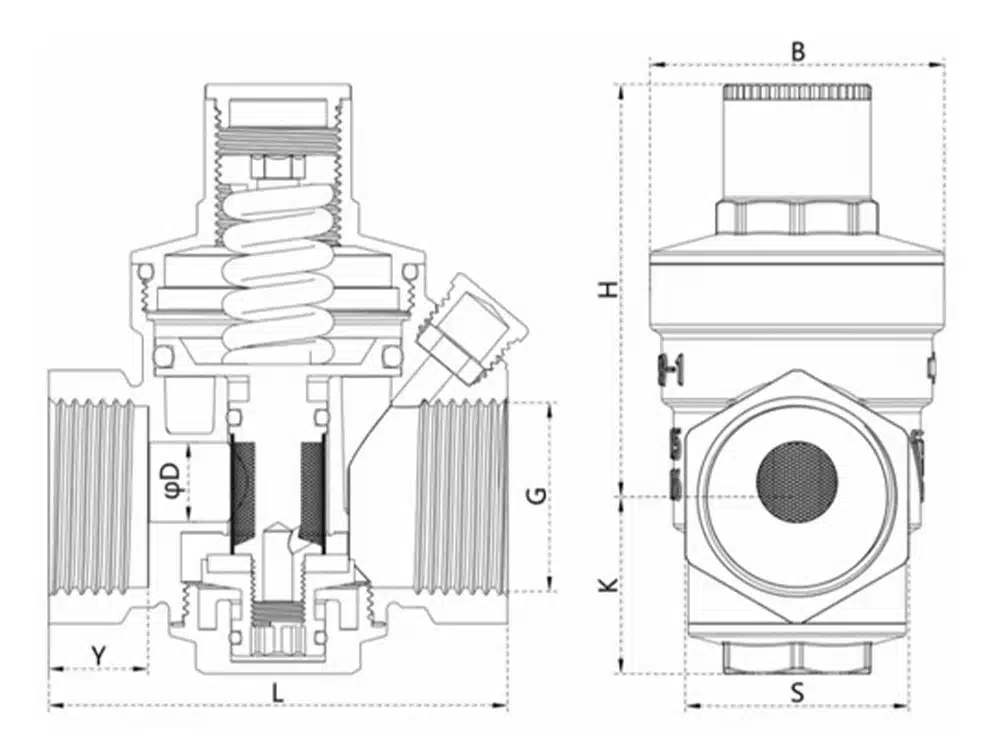

Product Size Reference
G | L | H+K | S | D |
DN15 | 64 | 85 | 26 | 12 |
DN20 | 64 | 85 | 32 | 12 |
DN25 | 75 | 100 | 38 | 13.5 |
DN32 | 79 | 103 | 48 | 13.5 |
DN40 | 87 | 122 | 55 | 19 |
DN50 | 98 | 133 | 68 | 19 |
DN65 | 100 | 160 | / | / |
