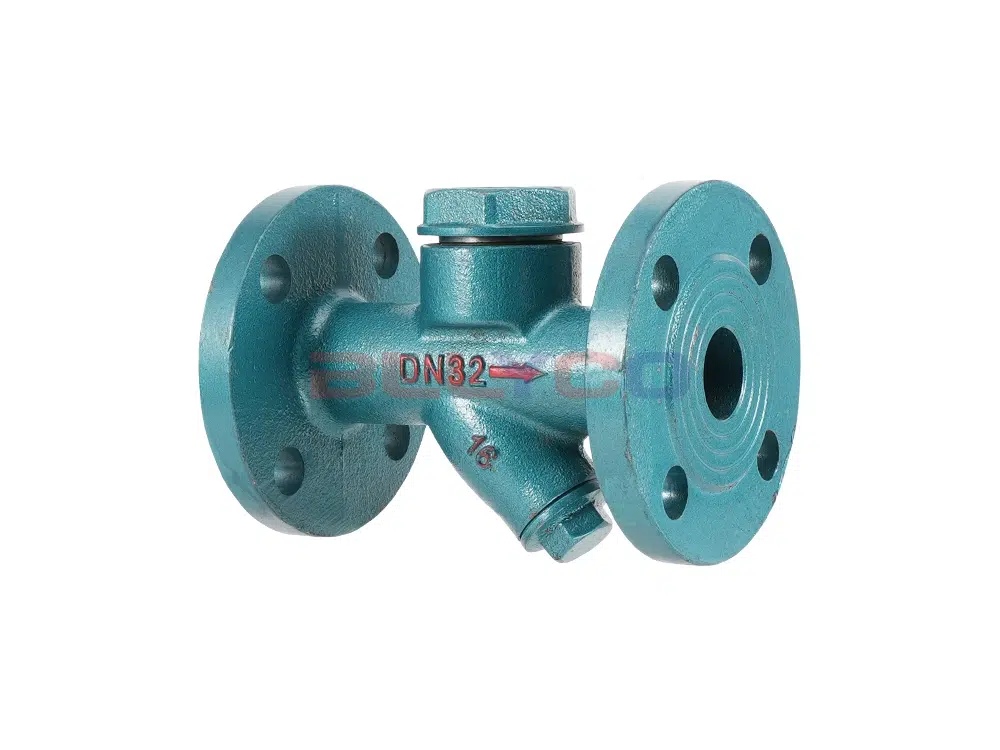

CS49H-16 disc traps are used to automatically discharge condensate generated in steam pipelines and heat-using equipment to ensure smooth piping and improve thermal efficiency. Widely used in petroleum, chemical, food, printing and dyeing, textile and pharmaceutical fields.
Product Features
- Simple structure, small size and light weight.
- Wide range of operating pressures.
- Easy to install and not limited by location.
Product Parameters
Product Model | CS49H-16 |
Valve body material | Foundry Iron |
Nominal pressure | ≤1.6Mpa |
Applicable medium | Steam, Condensate, etc. |
Applicable temperature | ≤200℃ |
Product Size Reference
Nominal Diameter | L | H |
DN15 | 150 | 125 |
DN20 | 150 | 128 |
DN25 | 160 | 132 |
DN32 | 180 | 153 |
DN40 | 230 | 165 |
DN50 | 230 | 170 |
DN65 | 230 | 180 |
Continuous Condensate Discharge Meter Unit：Kilograms Per Hour (kg/h)
Working differential pressure (Mpa) | 0.03 | 0.06 | 0.1 | 0.2 | 0.4 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 |
DN15 | 183 | 220 | 253 | 300 | 385 | 450 | 510 | 570 | 630 | 690 | 740 |
DN 20/25 | 250 | 300 | 380 | 500 | 600 | 710 | 770 | 830 | 890 | 950 | 1000 |
DN32/40/50 | 300 | 350 | 500 | 600 | 780 | 900 | 1000 | 1080 | 1120 | 1160 | 1200 |
DN32/40/50 | 450 | 580 | 690 | 870 | 1100 | 1270 | 1400 | 1500 | 1600 | 1760 | 1800 |
DN65/80/100 | 570 | 680 | 750 | 950 | 1300 | 1470 | 1600 | 1700 | 1800 | 1900 | 2000 |
