Brass Electric 2-Way Valves VA7010 Series

VA7010 SeriesElectric 2-way valveConsisting of the VA7010 series valve actuator and coppertwo-way valveComposition. It is used to control the opening or closing of cold water or hot water air-conditioning series pipeline to achieve the purpose of controlling room temperature. The driver is driven by a one-way magnetic belt synchronous motor and the valve is spring reset. Valve does not work in a normally closed state, when the need to work, the thermostat to provide an open signal, so that the electric two-way valve connected to the AC power supply and action, open the valve, chilled water or hot water into the fan coiler, to provide cold air for the room or warm air; when the room temperature reaches the set value of the thermostat, thermostat makes the electric two-way valve disconnect, reset the spring to make the valve closed, thus cutting off the water flow into the fan coiler. By closing or opening the valve, the room temperature is always kept within the temperature range set by the thermostat.

Product Features

VA7010 series electric two-way valve driver and valve body adopts screw connection, can be installed after the installation of the valve, and then install the driver, on-site assembly, wiring flexibility and convenience. The flat design of the driver can be installed close to the wall, taking up little space. The product is reliable and durable, with low working noise, and can work reliably in the high temperature environment that often occurs in the hidden fan coil device.

Product Parameters

Product Size Reference

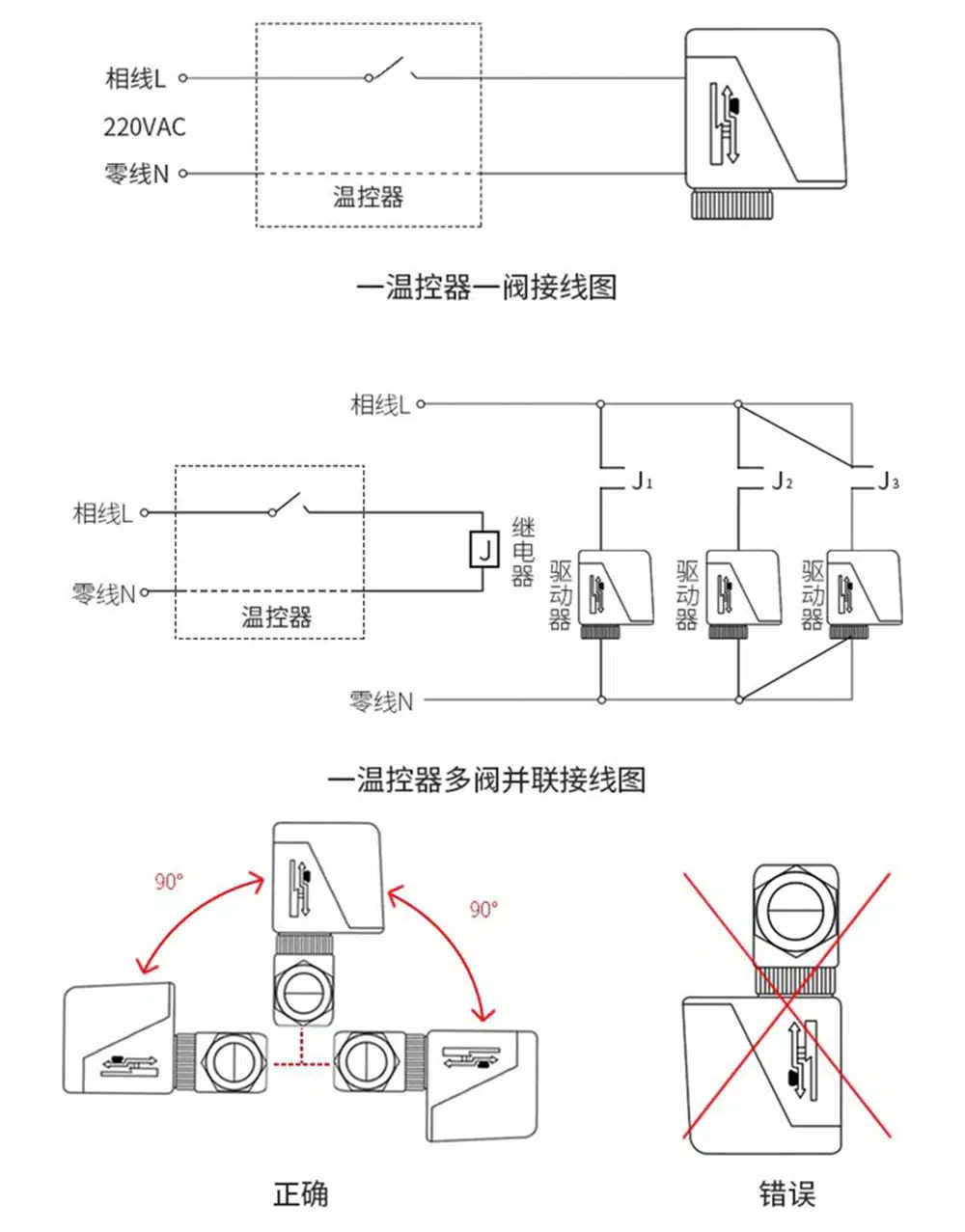

产品接线参考
