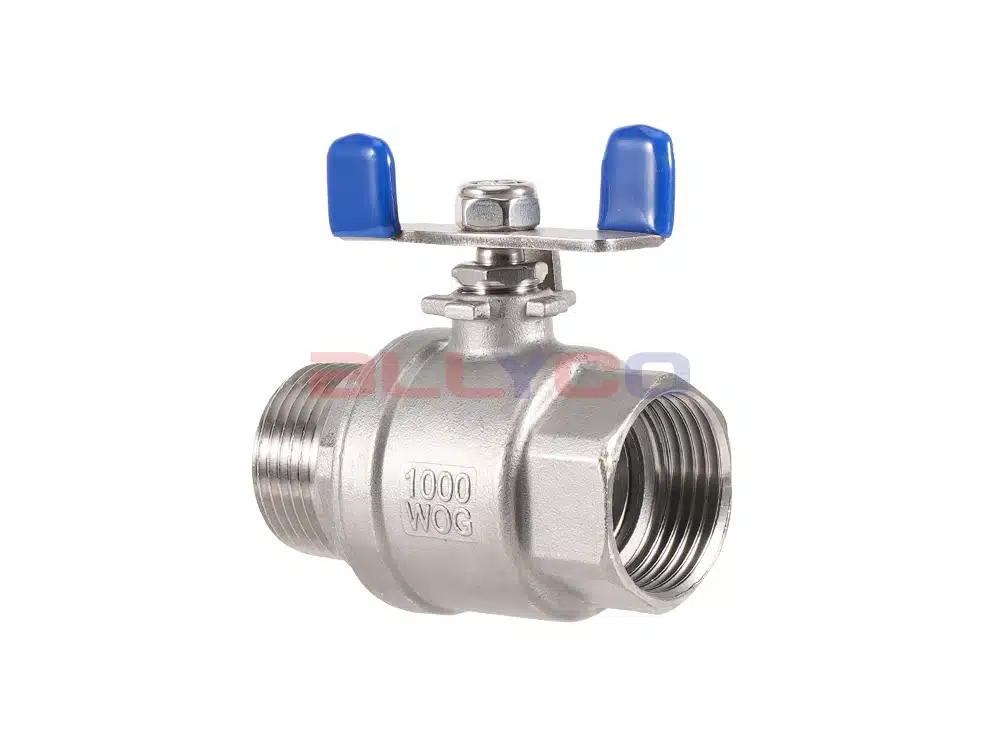

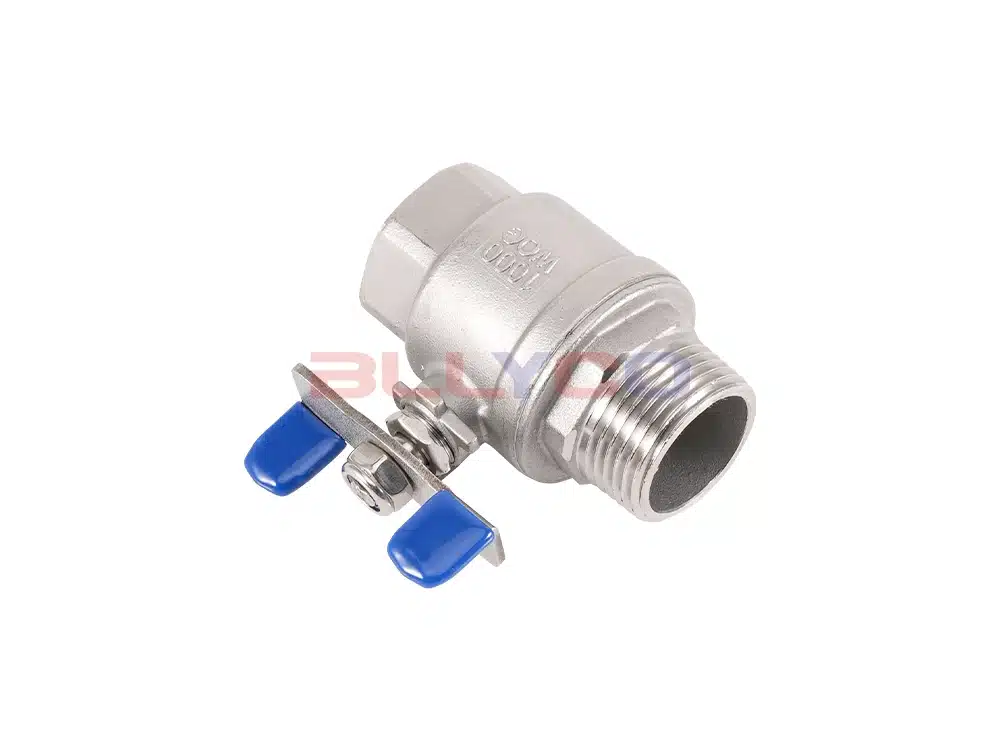

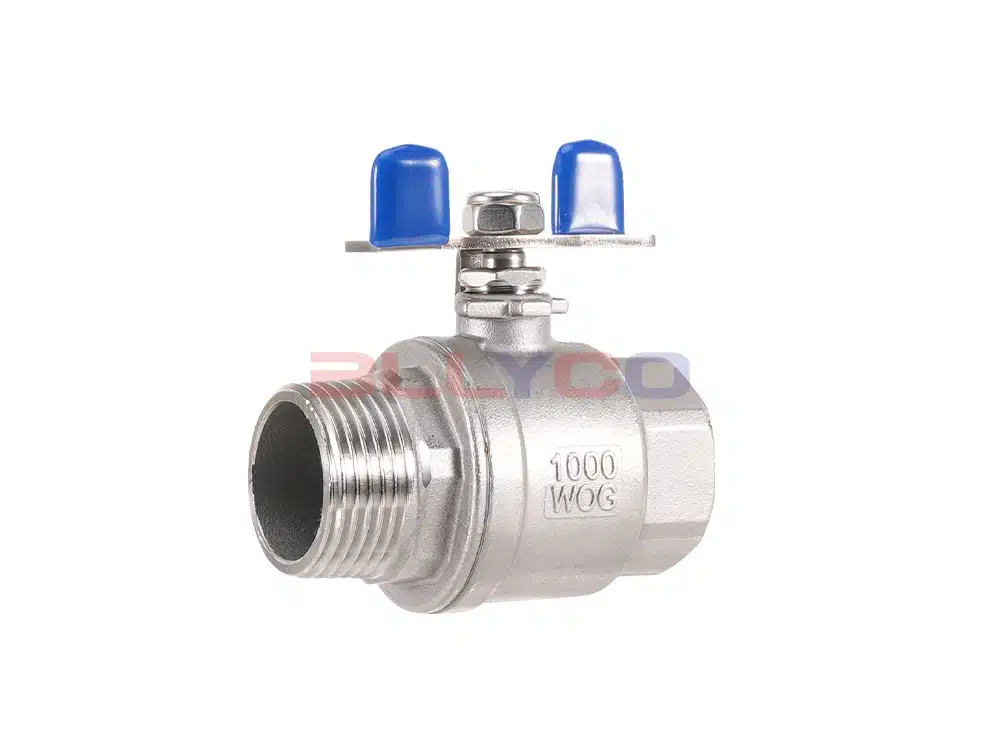

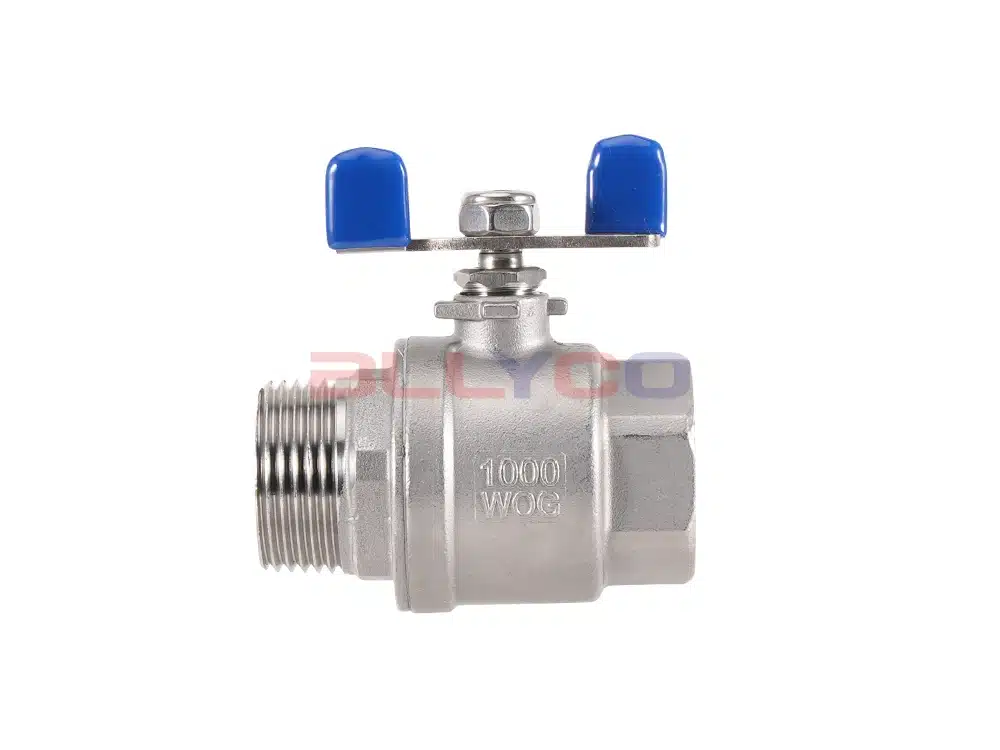

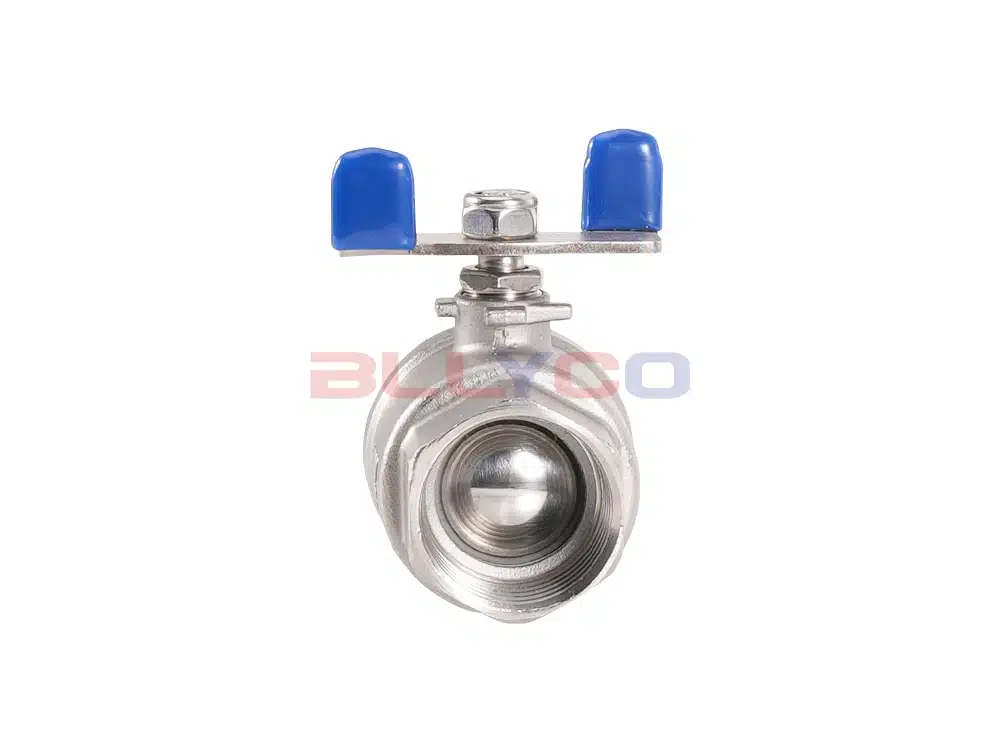

Q31F-16P internal and external wireTwo-piece ball valve is also called two-piece ball valve, whose body is composed of two parts: main body and sub-body. Reasonable structure, beautiful modeling. The valve seat adopts elastic sealing structure, easy opening and closing, reliable sealing. The valve stem adopts the down-loading structure with inverted sealing When the valve cavity is abnormally pressurized, the valve stem will not be impacted. 90°switch positioning mechanism can be set up, and locks can be added as needed to prevent misoperation. Widely used in petroleum, chemical industry, metallurgy, electric power, urban construction and other fields, such as transporting oil, natural gas, chemicals, steam and other high-temperature, high-pressure fluids, as well as controlling various fluids and urban water supply, drainage and so on.
Product Features
- Fluid resistance is small, and its resistance coefficient is equal to that of a pipe section of the same length.
- Simple structure, small size and light weight.
- Tight and reliable, the current ball valve sealing surface materials are widely used in plastic, good sealing, in the vacuum system has also been widely used.
- Easy to operate, open and close quickly, from full open to full close just rotate, easy to control from a distance.
- Convenient maintenance, the ball valve structure is simple, the seal ring is generally movable, disassembly and replacement are more convenient.
Product Parameters
Product Model | Q31F-16P |
Valve Body Material | 304 Stainless Steel |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Operating Temperature | ≤120°C |

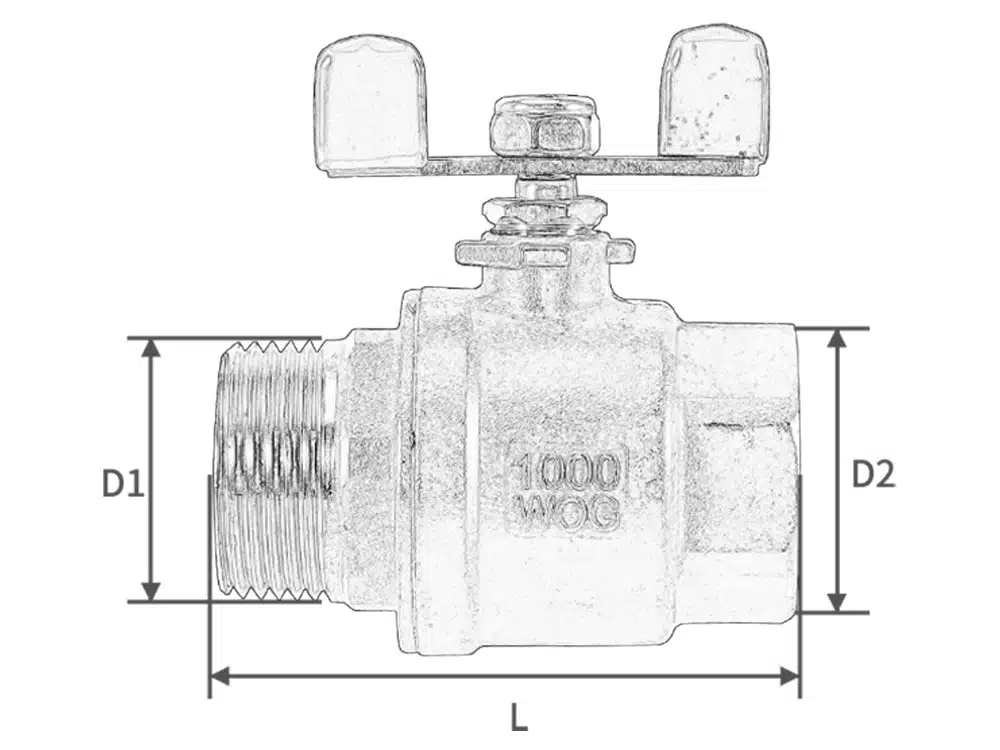

Product Size Reference
Nominal Diameter | L | D1 | D2 |
DN8 | 61 | 13 | 11.5 |
DN10 | 64 | 16 | 15 |
DN15 | 64 | 20.5 | 19 |
DN20 | 75 | 26 | 24 |
DN25 | 82 | 33 | 30 |
