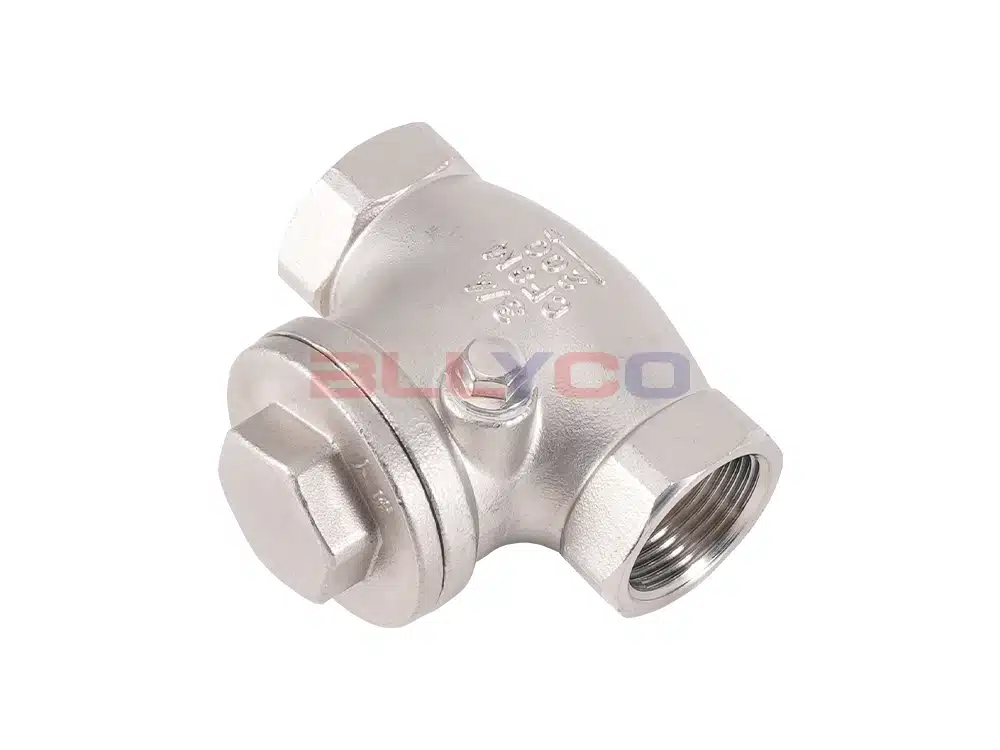

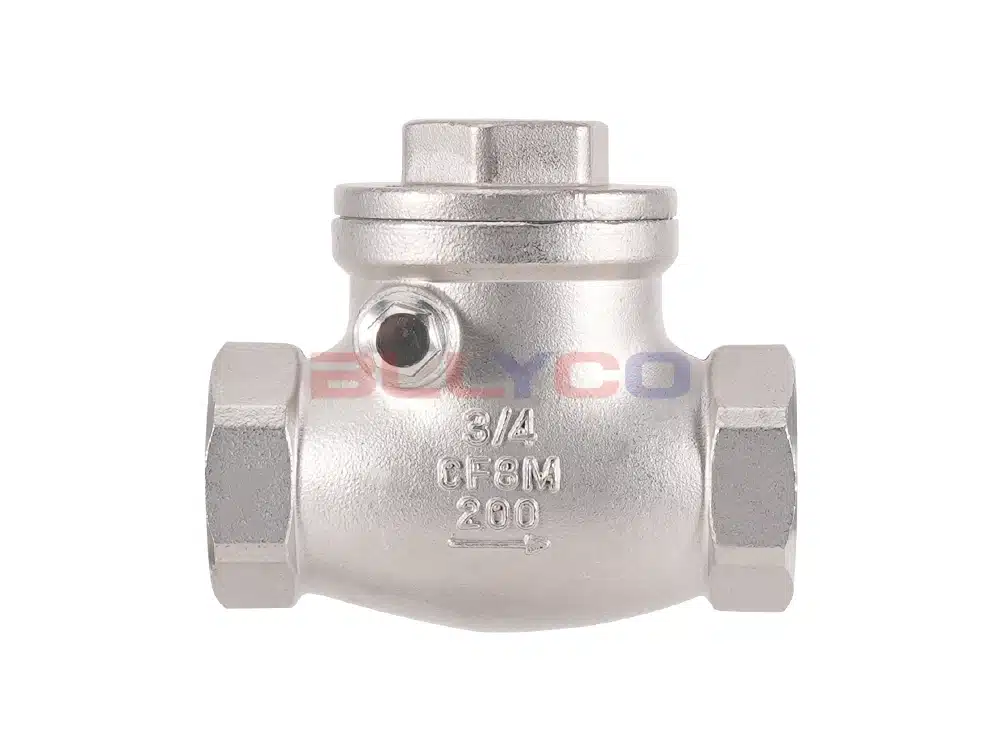

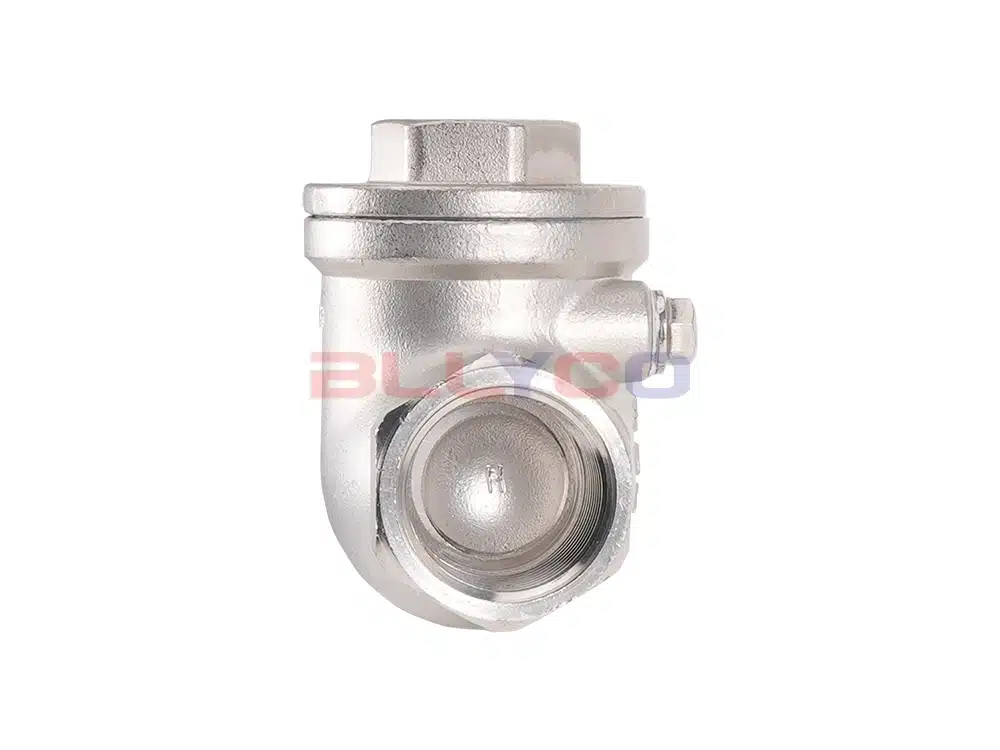

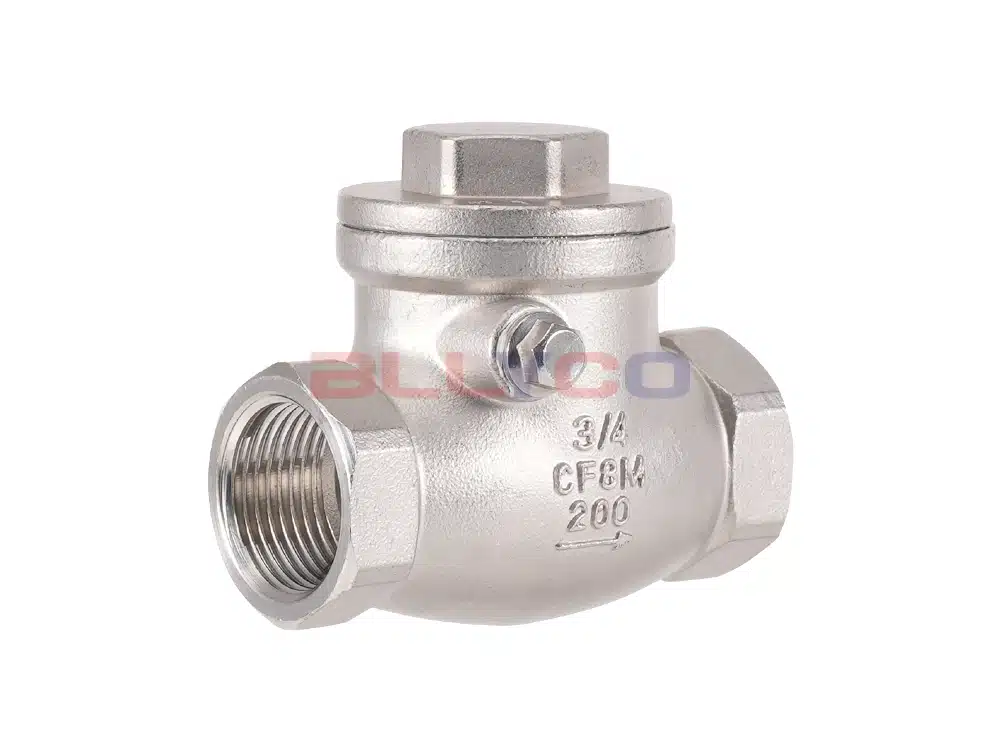

H14W-16P stainless steel swing check valve belongs to the automatic valve category, the opening and closing parts by the force of the flowing medium to open or close. Check valve is only used for one-way flow of media on the pipeline, to prevent the media backflow, in order to prevent accidents. Stainless steel swing check valve nominal pressure of PN16, applicable temperature ≤ 150 ℃ water, gas, oil and other media.
Product Features
- Simple structure, relatively easy to manufacture and maintain.
- Small working stroke, short opening and closing time.
- Good sealing, low friction between sealing surfaces, long life.
Product Parameters
Product Model | H14W-16P |
Valve Body Material | 304 Stainless Steel |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Operating Temperature | ≤150°C |

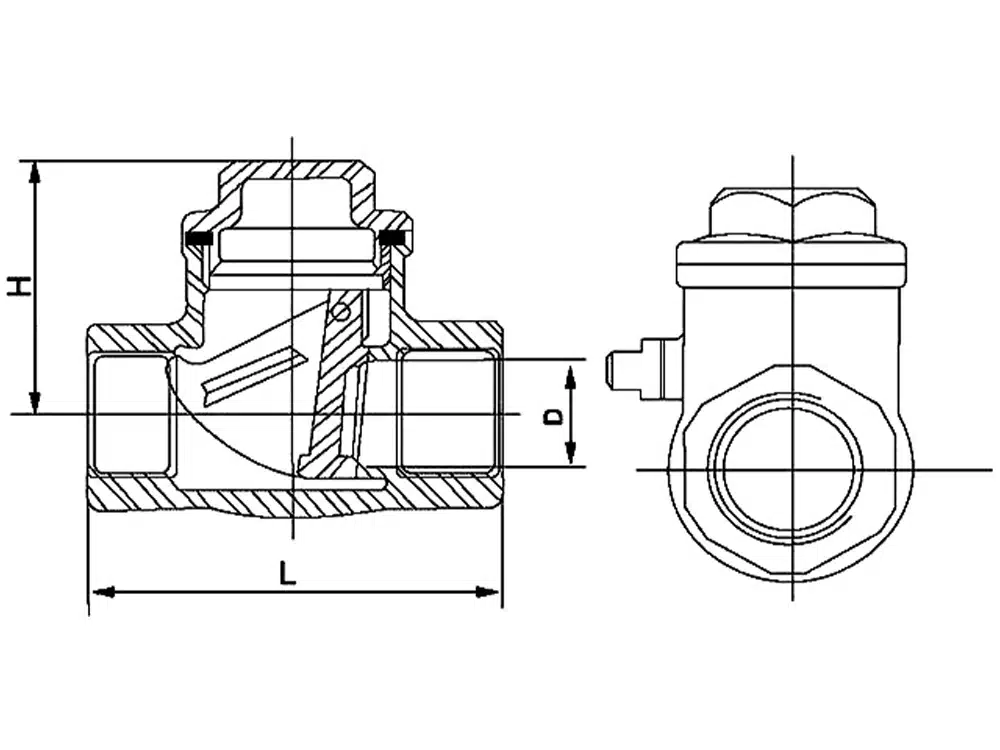

Product Size Reference
Nominal Diameter | Inch | L | D | H |
DN15 | 1/2 | 62.5 | 18 | 43 |
DN20 | 3/4 | 75 | 24 | 47 |
DN25 | 1 | 84 | 30 | 49 |
DN32 | 1-1/4 | 100 | 38 | 58 |
DN40 | 1-1/2 | 114 | 44 | 65 |
DN50 | 2 | 134 | 56 | 73 |
DN65 | 2-1/2 | 164 | 72 | 90 |
DN80 | 3 | 190 | 85 | 105 |
