200X Adjustable Pressure Reducing ValveIt is a kind of function type that utilizes the medium's own energy to regulate and control the pipeline pressure.Water Control Valve200X adjustable pressure reducing valve is used for life water supply, fire water supply and other industrial water supply systems, by adjusting the pressure reducing pilot valve, the outlet pressure of the main valve can be adjusted. The outlet pressure does not change due to the change of inlet pressure and inlet flow, and the outlet pressure can be maintained at the set value safely and reliably, and the set value can be adjusted according to the need to achieve the purpose of pressure reduction. The valve is precise in pressure reduction, stable in performance, safe and reliable, easy to install, and has a long service life.

Structural features and applications

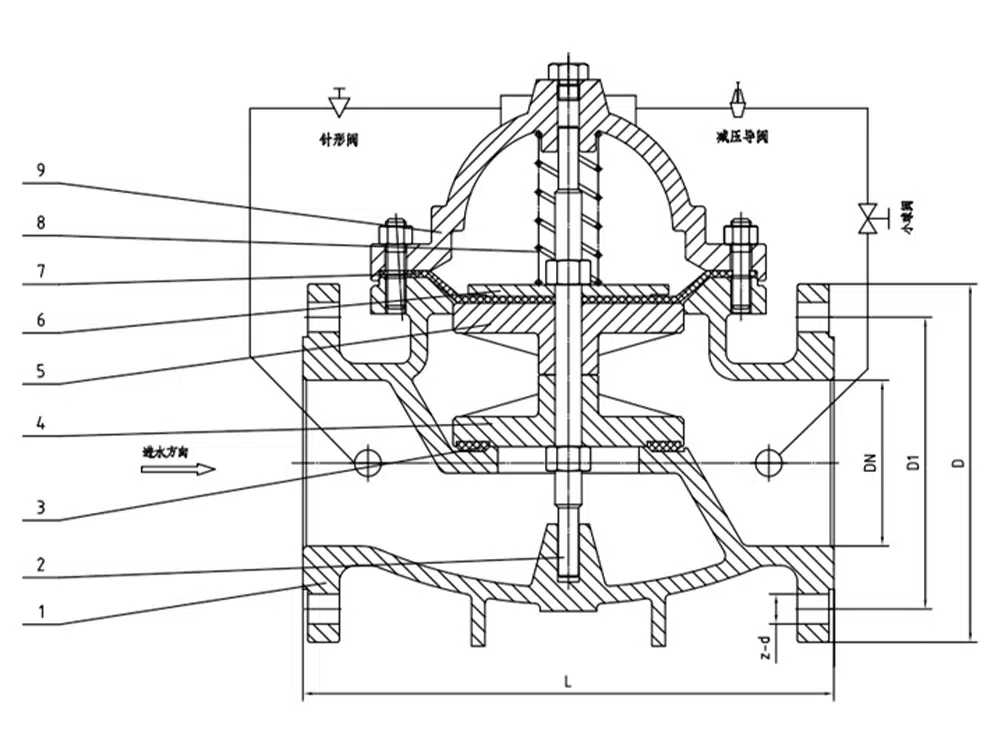

200X adjustable pressure reducing valve consists of main valve, pilot valve,needle valve,ball valvesMicro, Micro, Microfilterand pressure gauge to form a hydraulic control receiver system. When used, it can automatically maintain stable outlet pressure after adjusting the outlet pressure. This product uses the pilot valve self control, no other devices and energy, easy maintenance, high accuracy of pressure control, by the import pressure and flow of small impact, pressure stabilization and reliable. This series of valves are widely used in high-rise buildings, living quarters and other water supply network systems and urban water supply projects.

Working Principle

When the valve is fed from the inlet side, water flows through the needle valve into the main valve control chamber and outlet pressure is applied to the pilot valve through the conduit. When the outlet pressure is higher than the spring setting of the pilot valve, the pilot valve closes. The control chamber stops draining, at which time the pressure in the main valve control chamber rises and closes the main valve, and the outlet pressure no longer rises. When the valve outlet pressure drops to the pilot valve spring setting pressure, the pilot valve opens and the control chamber drains downstream. As the pilot valve system drains more water than the needle valve inlet, the pressure in the main valve control chamber drops. The inlet pressure causes the main valve to open. In the steady state, the control chamber inlet and discharge are the same, the main valve opening is constant, and the outlet pressure is stable. The outlet pressure can be set by adjusting the pilot valve spring.
