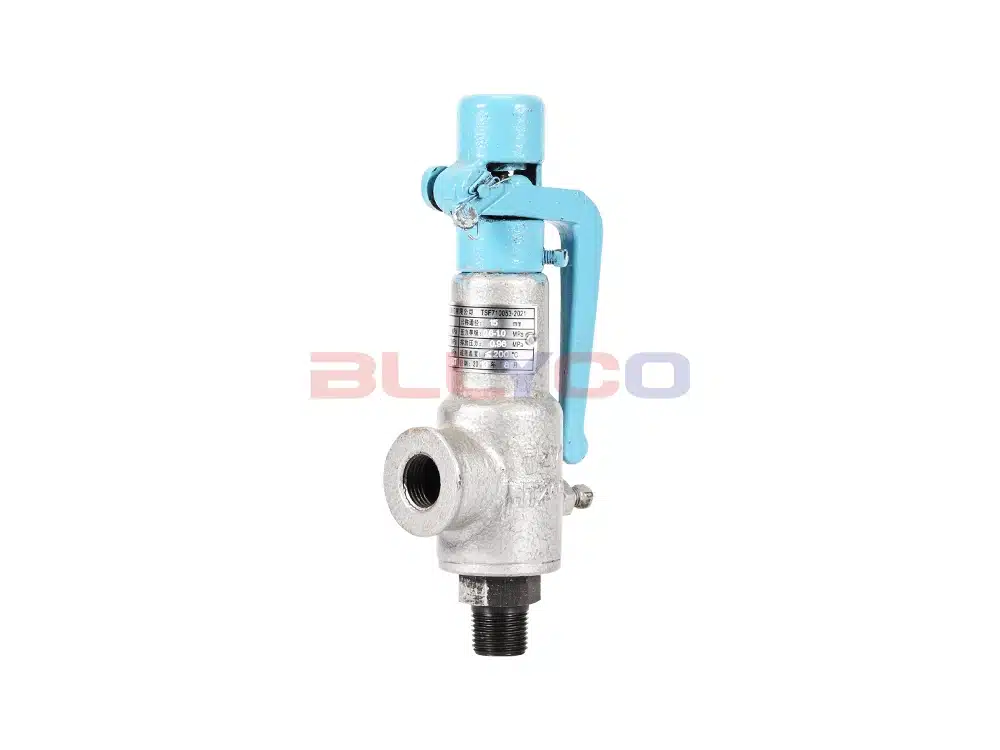

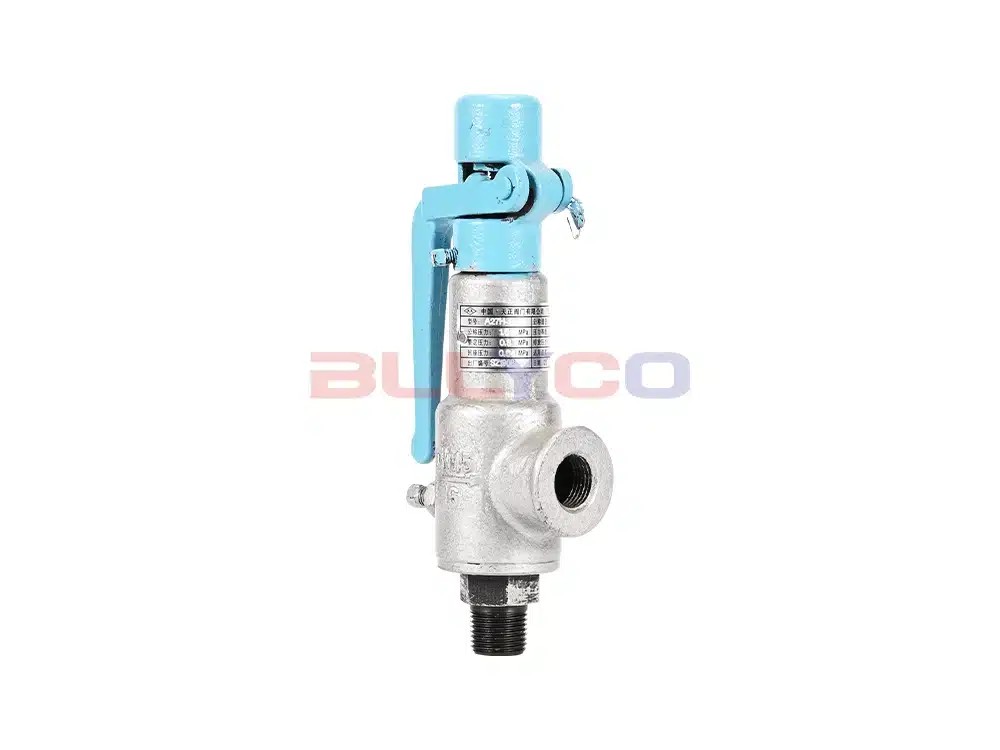

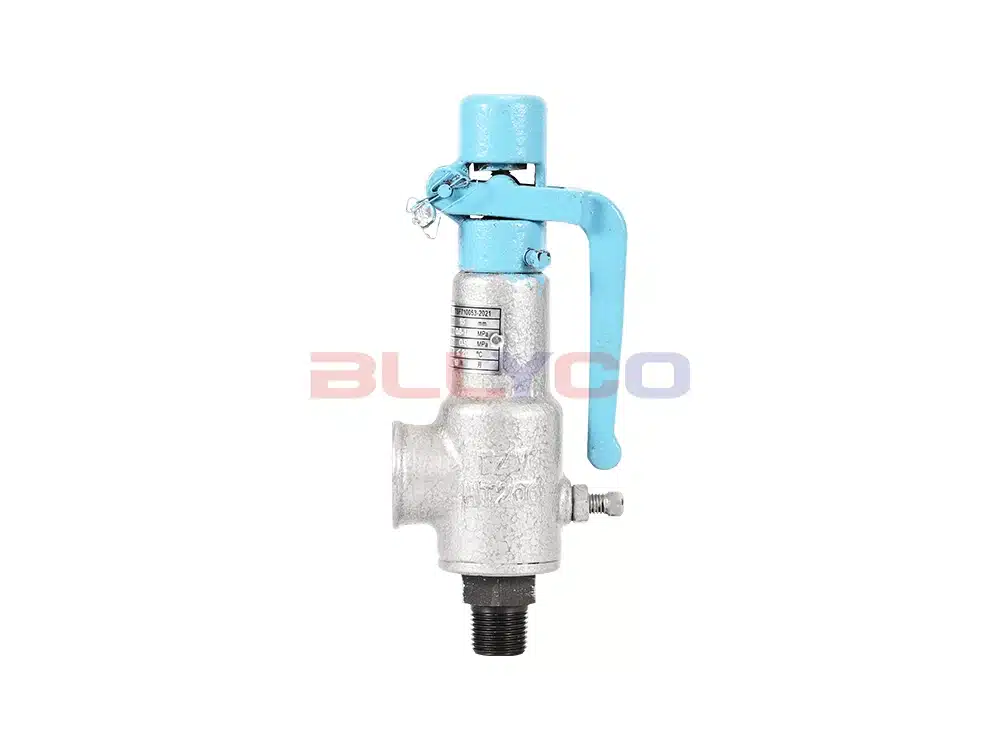

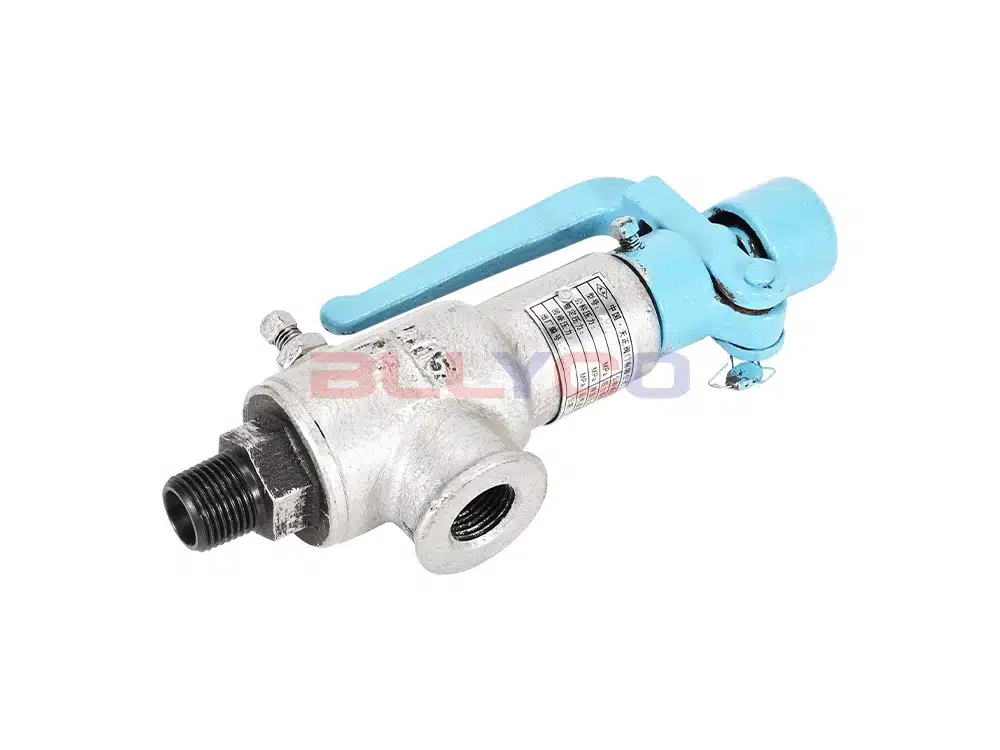

A27HSpring-loaded micro-start safety valvesSuitable for working temperature ≤ 200 ℃ water, air, steam and other media equipment or pipeline.

Working Principle

When the pressure in the equipment and pipeline exceeds the permissible value, the valve automatically opens and then discharges the full amount; when the pressure drops to the specified value, the valve automatically closes to ensure the safe operation of the equipment and pipeline.

Product Parameters

产品型号

A27H-16

阀体材质

灰铸铁

公称压力

≤1.6Mpa

适用介质

水、蒸汽、空气等

适用温度

≤200℃

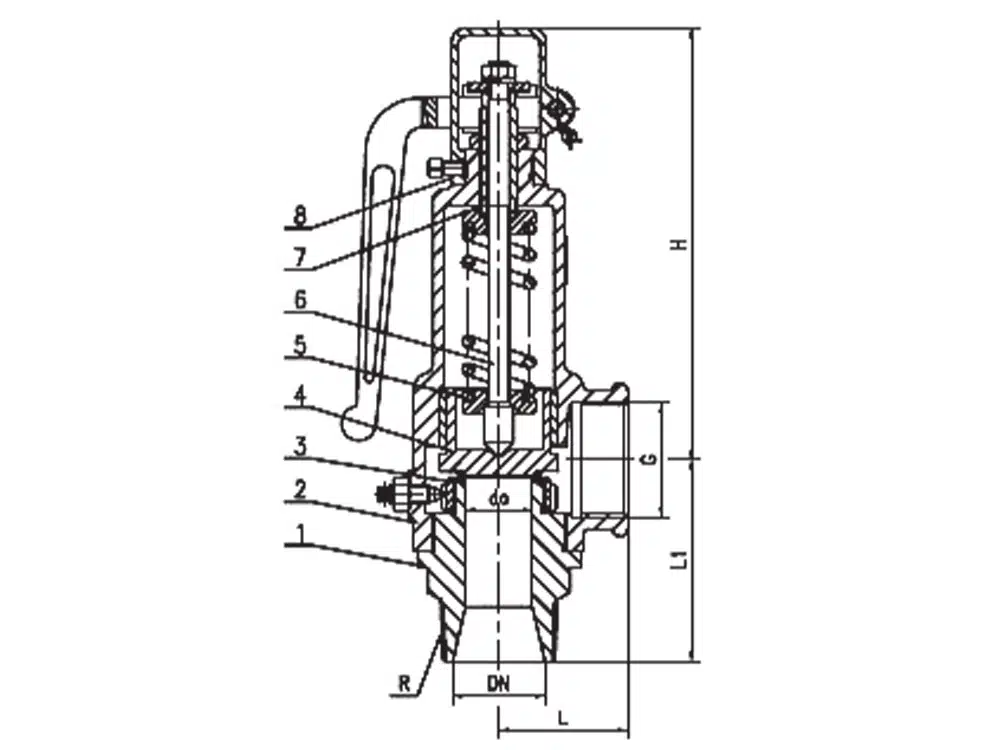

Product Size Reference

通径

do

R

L

L1

G

≈H

DN15

10

1/2

40

65

1/2

135

DN20

15

3/4

45

65

3/4

140

DN25

20

1

45

70

1

155

DN32

25

1-1/4

55

85

1-1/4

170

DN40

32

1-1/2

60

90

1-1/2

310

DN50

40

2

67

105

2

322

DN65

50

2-1/2

76

128

2-1/2

344

DN80

65

3

110

145

3

395
