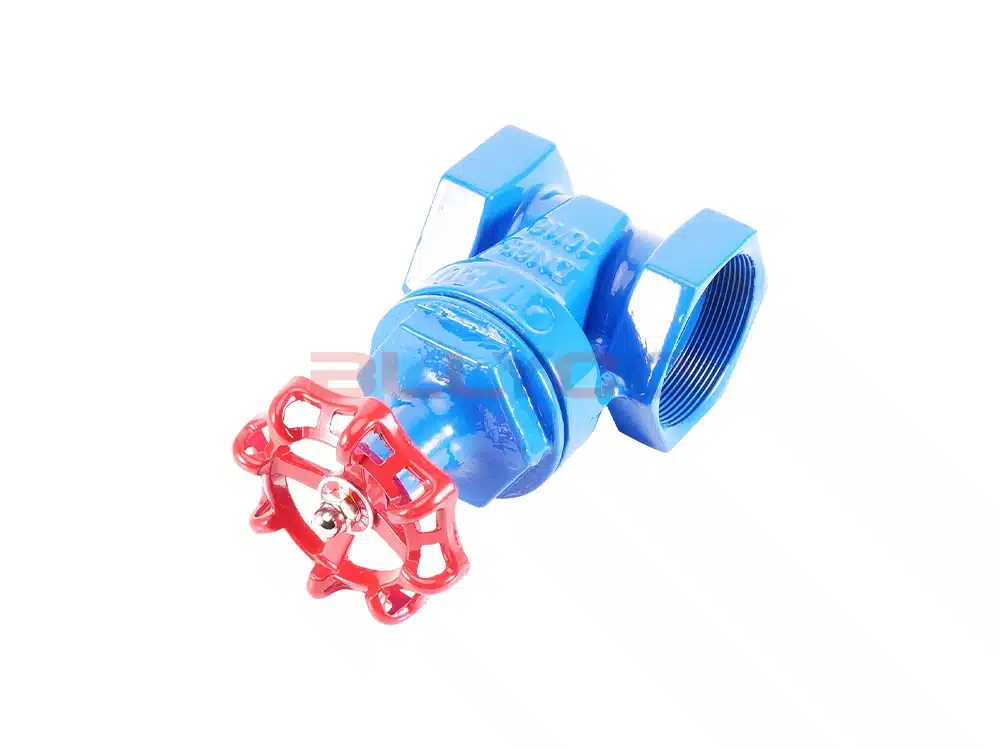

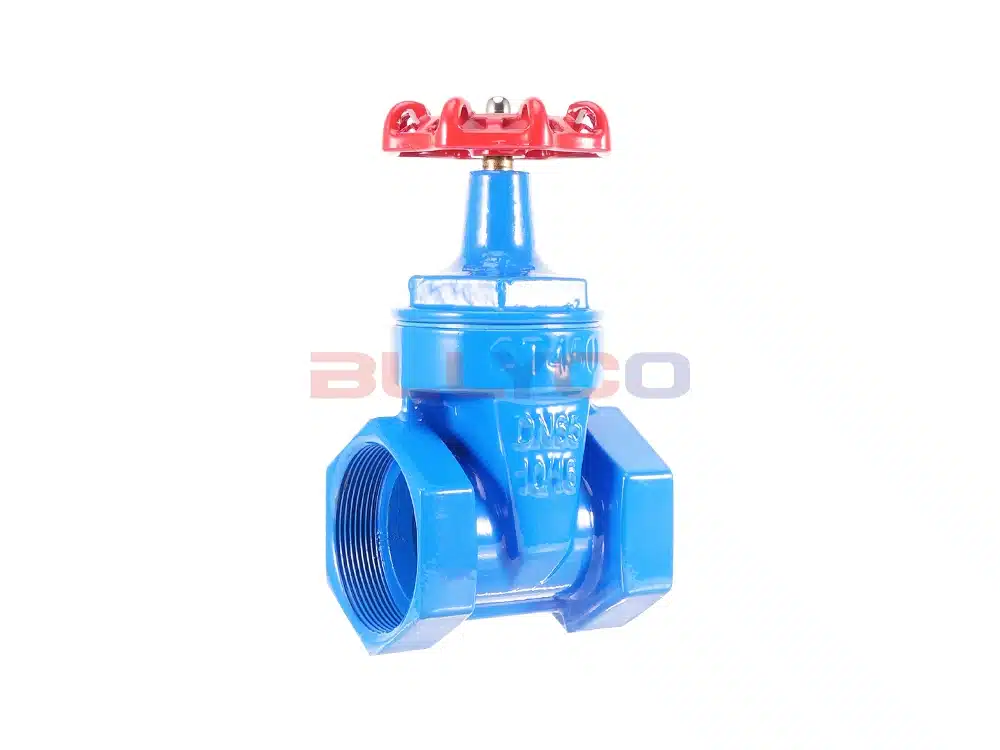

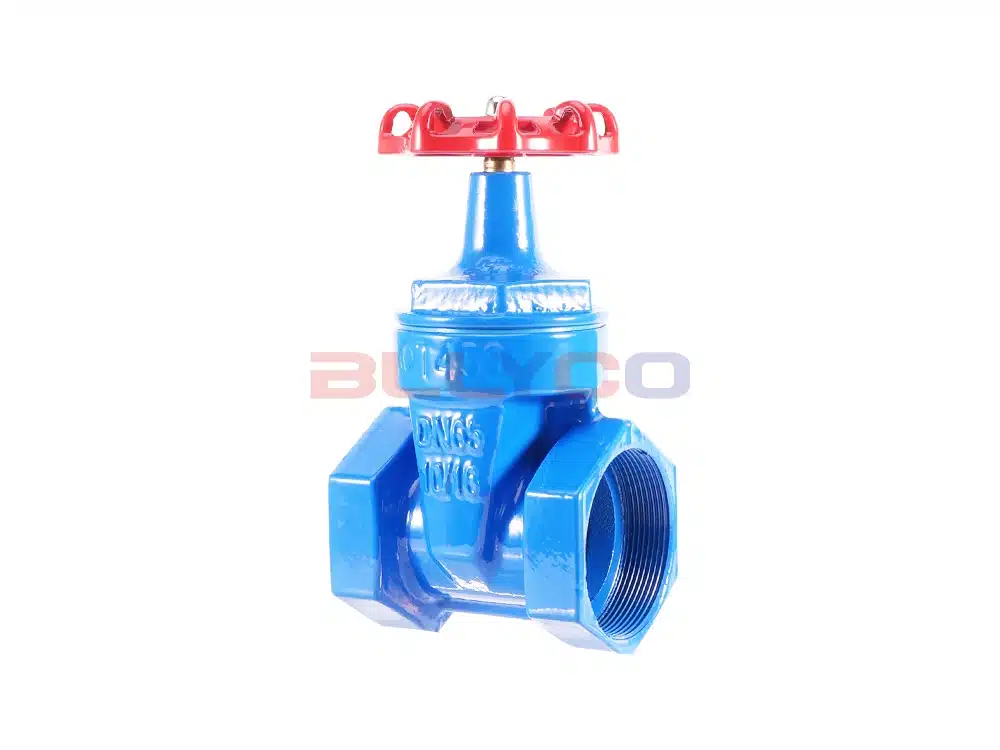

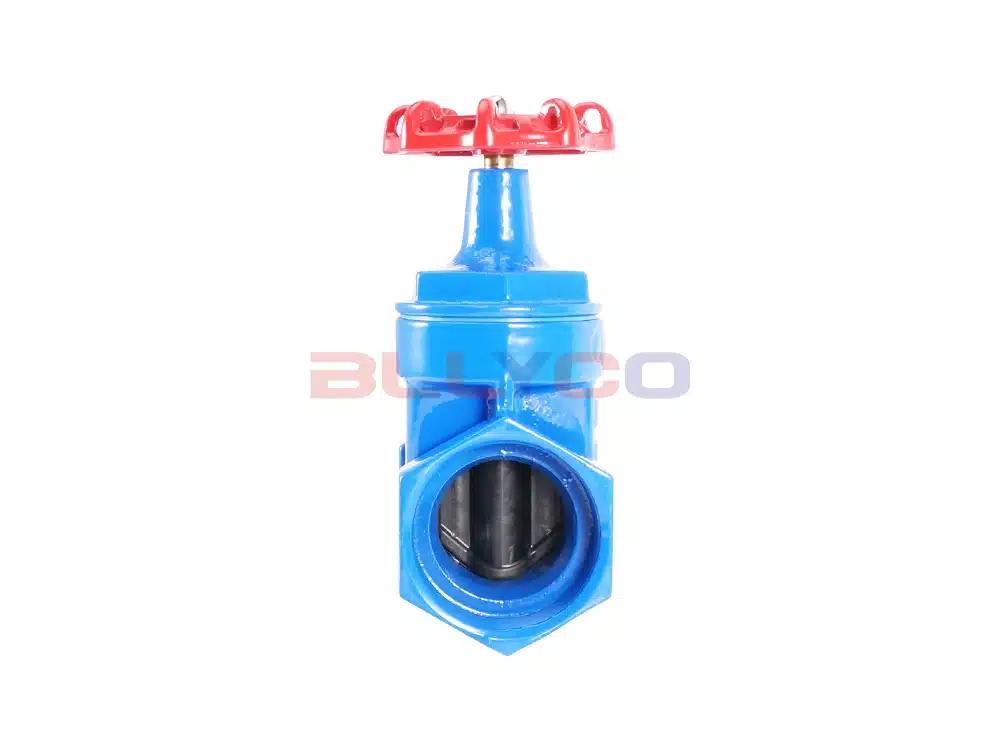

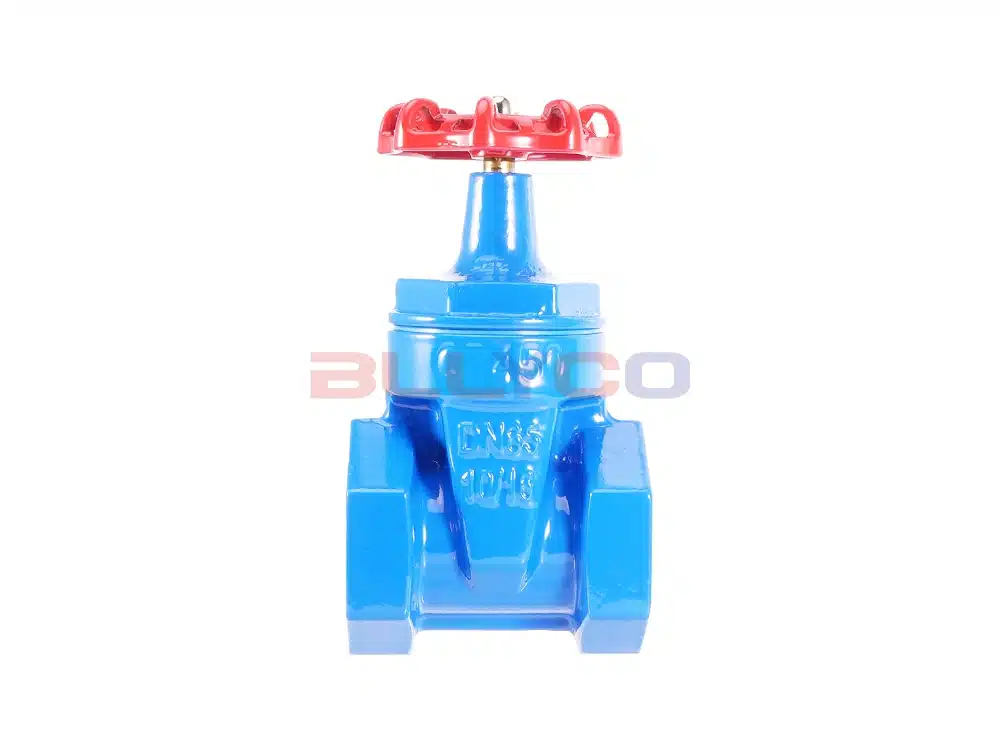

Z15X-16QSoft Seal Silk Button Gate ValveWidely used in water, sewage, construction, petroleum, chemical, food, medicine, textile, electric power, ship, metallurgy, energy system and other fluid pipeline as a regulator and interceptor.

Product Features

  • Flat-bottomed seat for no dirt buildup;
  • Nitrile rubber covered valve flap as a whole;
  • 阀杆采用黄铜材料，可用于污水系统适应较恶劣的工作环境；
  • Small size and light weight for easy installation and maintenance;
  • The valve stem is sealed with three O-rings, which greatly reduces the friction resistance during switching.

Product Parameters

产品型号

Z15X-16Q

阀体材质

球墨铸铁

阀瓣材质

Ductile iron + NBR

公称压力

≤1.6Mpa

适用介质

水等

适用温度

≤80°C

Product Size Reference

通径

G

L

S

H

DN15

1/2

62

30

85

DN20

3/4

62

36

104

DN25

1

69

42

108

DN32

1-1/4

82

54

130

DN40

1-1/2

89

60

155

DN50

2

96

72

178

DN65

2-1/2

110

88

220

DN80

3

128

105

240

DN100

4

147

135

285
