UPVC Double Router Ball ValveA new material developed to meet the needs of various corrosive piping fluids.ball valvesProducts. The valve body is made of UPVC (polyvinyl chloride), which has the advantages of strong corrosion resistance, light weight, easy installation, etc. UPVC double-ringing ball valves are suitable for a wide range of corrosive pipeline fluid media, widely used in pure water and raw drinking water, drainage and sewage piping systems, acid, alkali and chemical solution systems, and many other industries.

Product Features

UPVC Double Router Ball Valve has a compact and beautiful structure, light weight and easy to install. Its sealing material is EPDM, which is characterized by wear resistance, easy disassembly and simple maintenance. The valve is operated by 90 degree rotary switching, and the action time is usually between 4-30 seconds.

Product Parameters

产品型号

Q61F-10S

阀体材质

UPVC

公称压力

≤1.0Mpa

适用介质

水等

适用温度

≤55°C

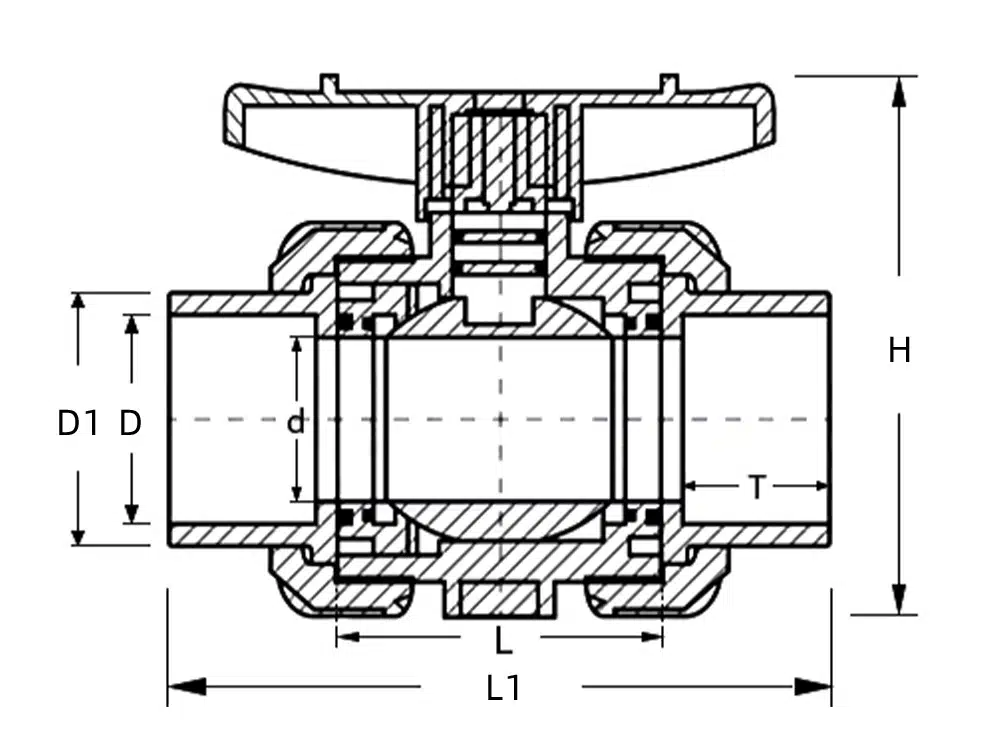

Product Size Reference

通径

D

D1

L1

H

d

T

L

DN15

20

28

97

79.8

13.8

17.8

53.2

DN20

25

33

109

85

18.8

21.9

57.2

DN25

32

42

120

100

23.8

24.6

62.2

DN32

40

51

138

118

30.9

27.9

70.5

DN40

50

61

160

136

37.7

32.5

80.3

DN50

63

75

174

161

43.7

37.8

86

DN65

75

89

233

207

61.6

48.8

121.8

DN80

90

109

290

233

73.7

61.3

147.6

DN100

110

130

314

264

89.8

69.9

155.9
