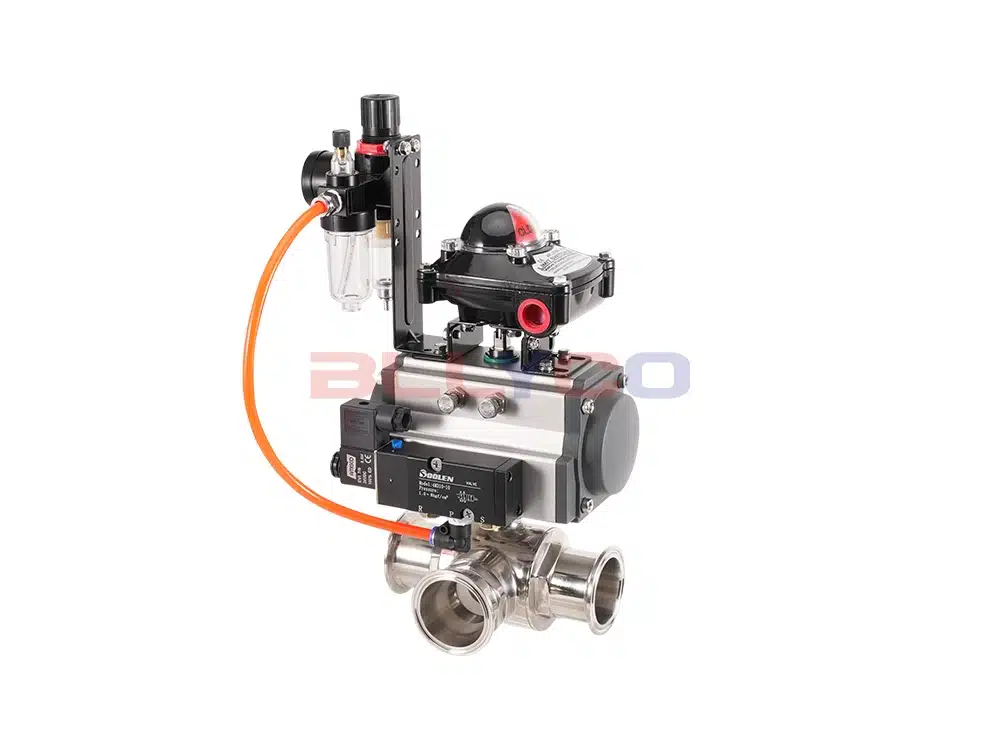

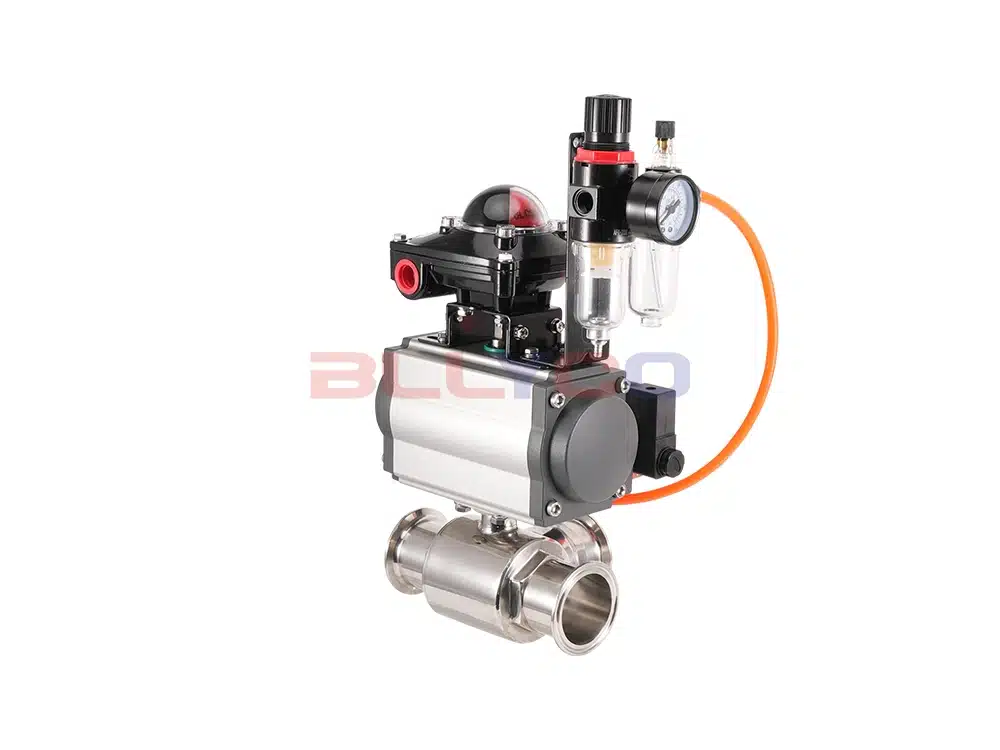

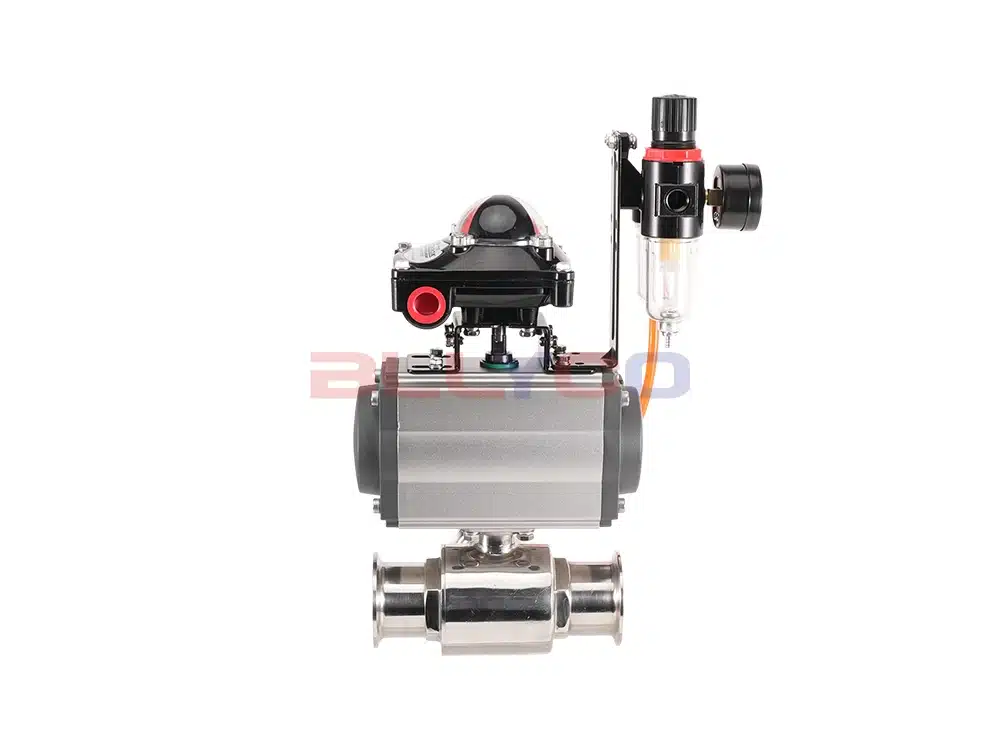

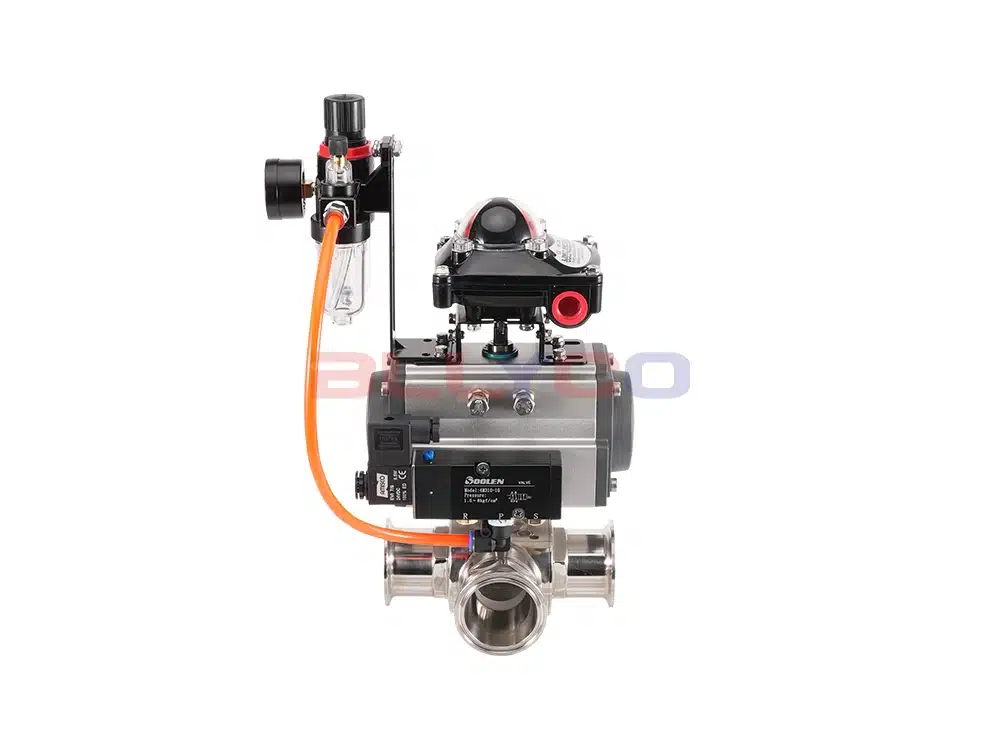

Q685F-10P pneumatic quick-fit three-way ball valve is composed of pneumatic angle stroke actuator and sanitary ball valve assembly. Pneumatic quick-fit three-way ball valve body is made of stainless steel refined, flow channel inner wall 0.5um (240Grit) electronic polishing, to keep the fluid unobstructed. The sealing surface adopted by the full package PTFE no dead space, no dead space and easy to clean, to ensure hygiene. Pneumatic quick-fit 3-way ball valves are widely used in beer engineering, food engineering, chemical engineering, pharmaceutical engineering, biological engineering and water treatment engineering and other fields.
Product Features
- Simple structure, small size and light weight.
- The pore size is comparable to that of the pipe and is less likely to produce sediments.
- The inside of the runner is 240 Grit polished to ensure a smooth and unobstructed flow.
- Featuring a fully encapsulated PTFE seal with no dead space and easy to clean.
- Adopts clamp connection, easy and convenient to install and dismantle.
Product Parameters
Product Model | Q685F-10P |
Valve Body Material | 304 Stainless Steel |
Cylinder Material | Aluminum Alloy |
Cylinder Type | AT Double Acting |
Nominal Pressure | ≤1.0Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Operating Temperature | ≤120°C |

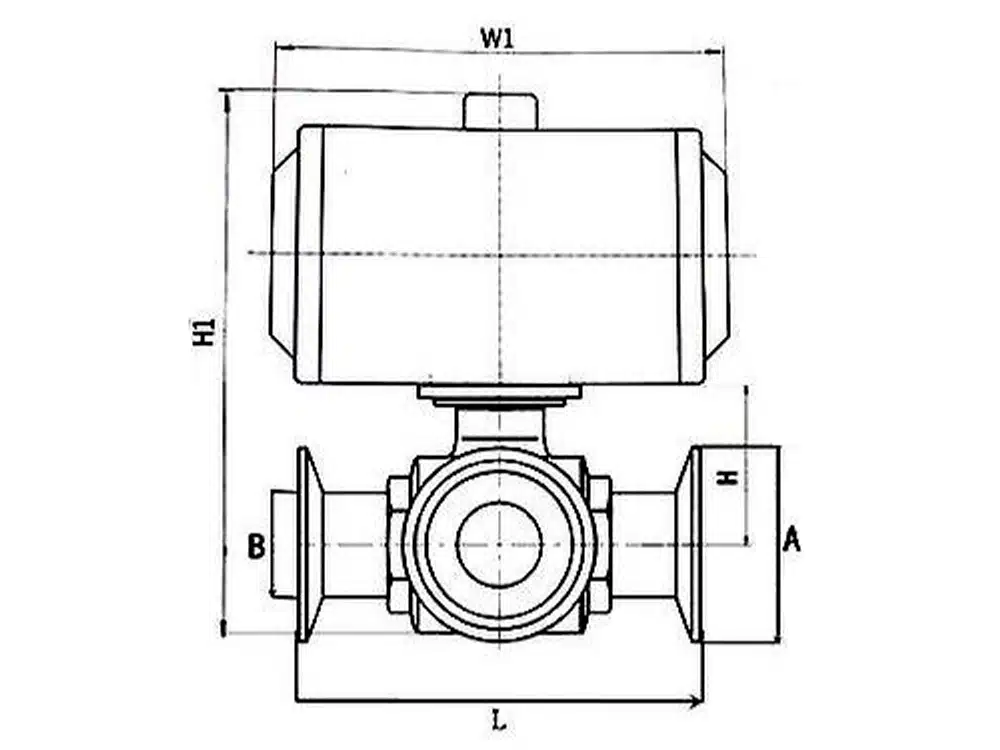

Product Size Reference
Tube Outer Diameter | A | B | H1 | W1 | L |
φ19 | 50.5 | 15 | 172 | 147 | 105 |
φ25 | 50.5 | 20 | 172 | 147 | 126 |
φ32 | 50.5 | 25 | 178 | 147 | 137 |
φ38 | 50.5 | 32 | 218 | 168 | 154 |
φ45 | 50.5 | 35 | 228 | 168 | 165 |
φ51 | 64 | 40 | 228 | 168 | 168 |
φ63 | 77 | 50 | 260 | 210 | 184 |
φ76 | 91 | 65 | 300 | 262 | 220 |
φ89 | 106 | 80 | 335 | 265 | 240 |
φ102 | 119 | 90 | 395 | 300 | 266 |
