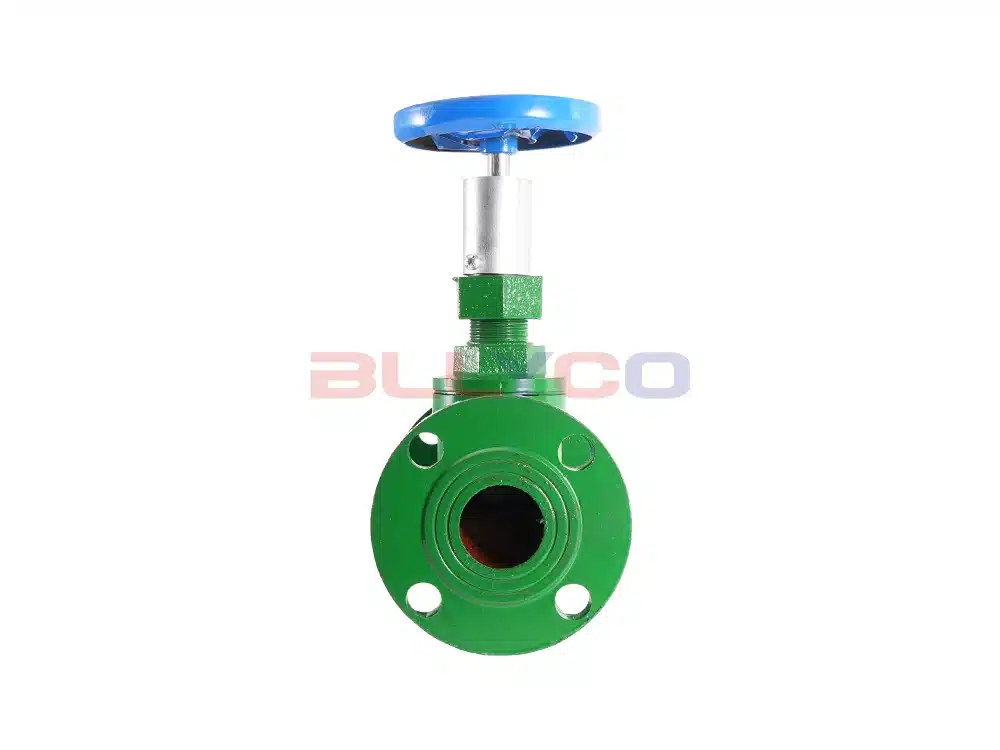

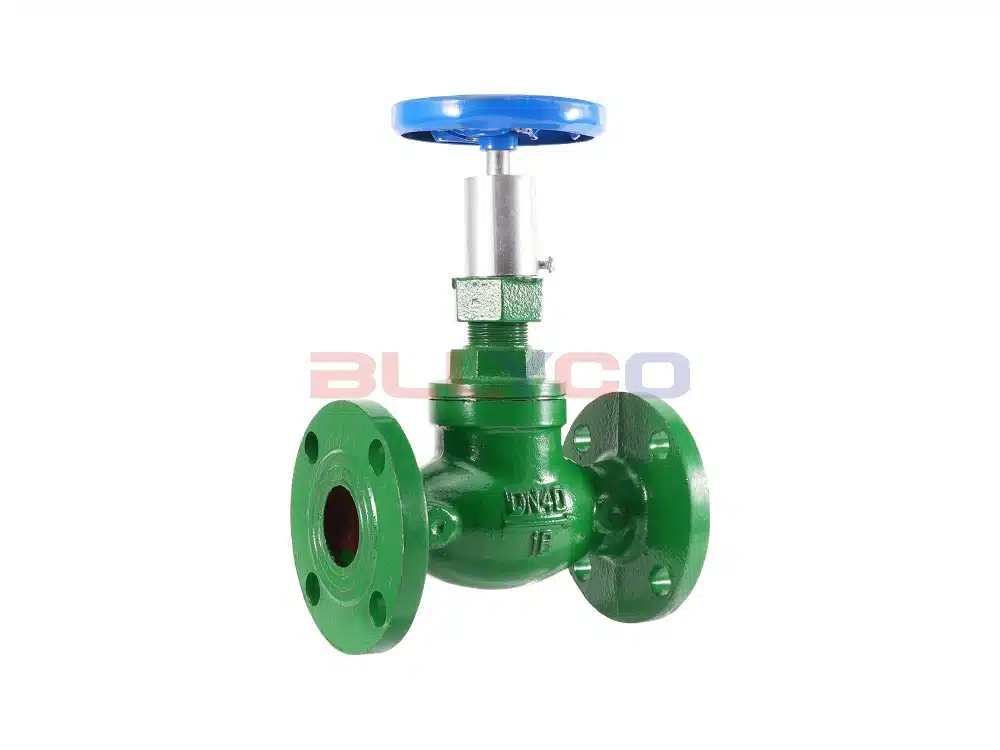

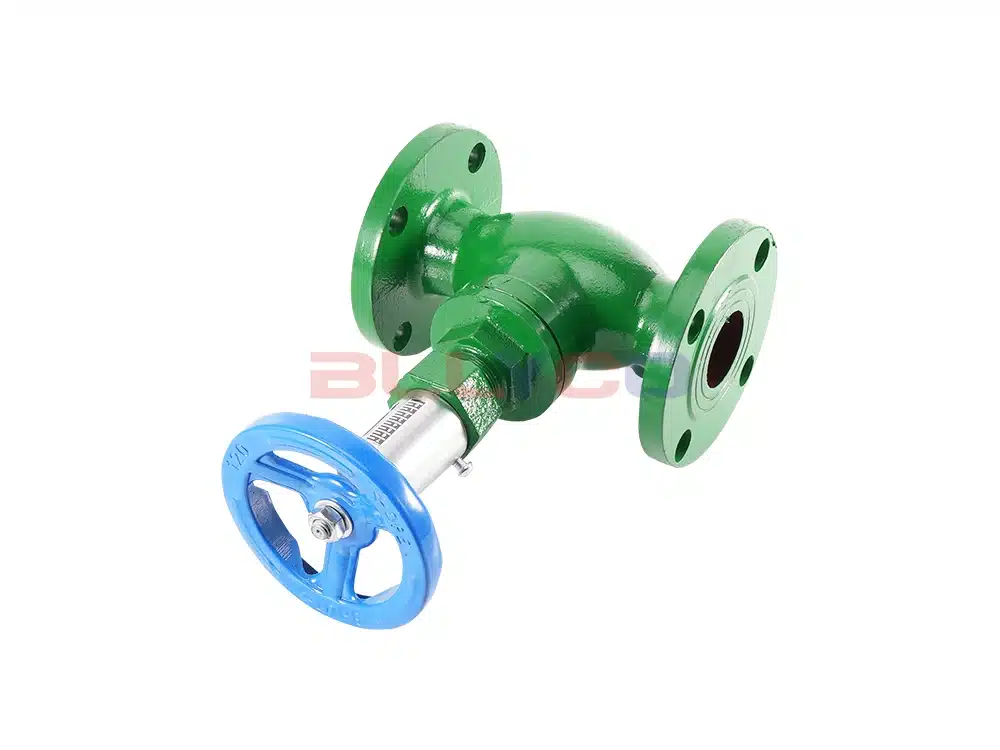

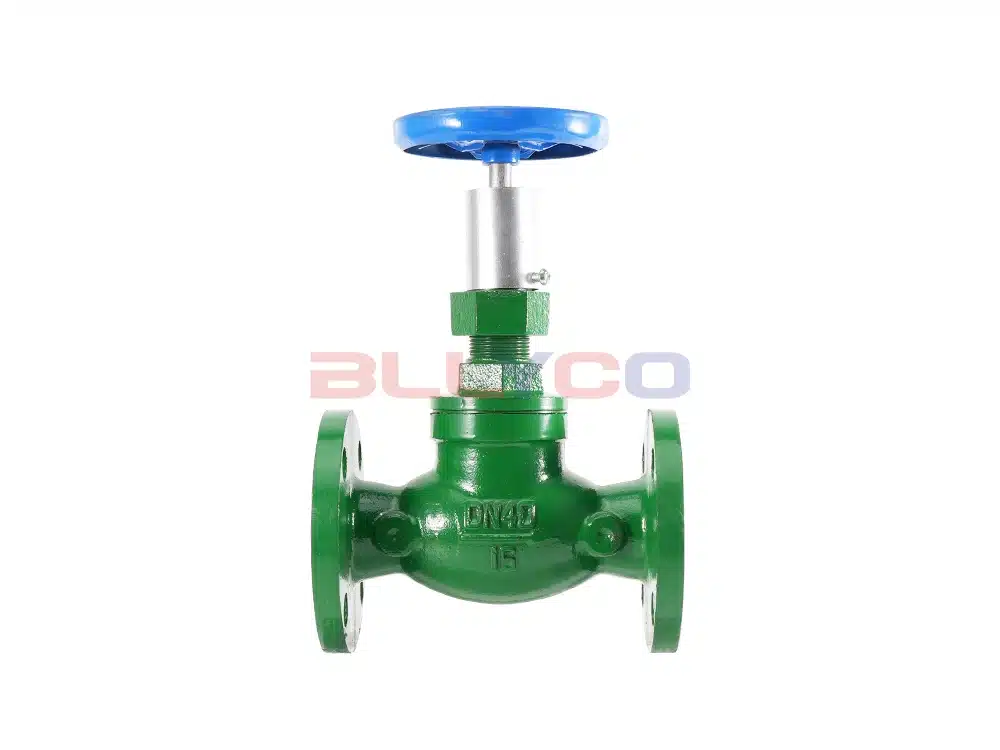

Cast iron manual control valve T40F-16

T40F-16Manual Control ValveIt is suitable for regulating the flow of water or hot water pipeline with working pressure ≤1.6MPa and medium temperature ≤100℃. Clockwise rotation of the handwheel to close the manual control valve, the valve stem drives the valve flap down, until the two conical sealing surface contact to reach a tight pipeline closure.

Product Features

• Improvement of heating supply condition: All branch lines and heat points using manual control valves can be adjusted according to the design conditions of the flow rate to achieve a good temperature condition, thecontrol valve(particle used for comparison and "-er than")gate valve,stop valveRegulating performance is good, it has approximate linear regulating performance. As a result, the unevenness of heat and cold in each heated building is strongly improved.

• Energy saving: The heat pipe network, due to temperature-pressure imbalance, causes excessive flow in some branches, making some buildings too hot and users have to open the windows, which achieves the purpose of saving energy.

• Improvement of network pipe hydraulic conditions: manual adjustment valve can be controlled in accordance with the rated flow rate, the network pipe overrun to reduce the flow rate, so that the original degree of deterioration of the water condition has been improved to a certain extent.

Product Parameters

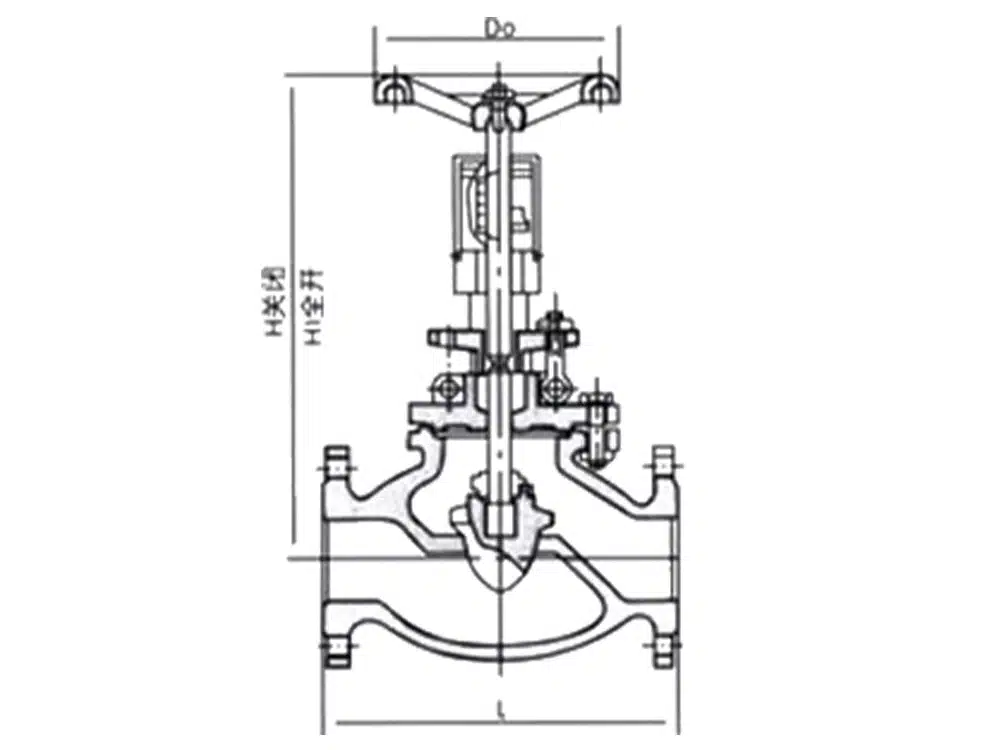

Product Size Reference
