UPVC double-reinforced ball valve is a new material ball valve developed according to the needs of various corrosive pipeline fluids. The valve body is made of UPVC (polyvinyl chloride), which has the advantages of strong corrosion resistance, light weight, easy installation, etc. UPVC double-reeding ball valves are suitable for a variety of corrosive pipeline fluids, widely used in pure water and raw drinking water, drainage and sewage piping systems, acid, alkali and chemical solution systems and other industries.
Product Features
UPVC Double Router Ball Valve has a compact and beautiful structure, light weight and easy to install. Its sealing material is EPDM, which is characterized by wear resistance, easy disassembly and simple maintenance. The valve is operated by 90 degree rotary switching, and the action time is usually between 4-30 seconds.
Product Parameters
Product Model | Q11F-10S |
Valve body material | UPVC |
Nominal pressure | ≤1.0Mpa |
Applicable medium | Clear Water, Sewage, Seawater, Acid and Alkali Liquids, etc. |
Applicable temperature | ≤55°C |

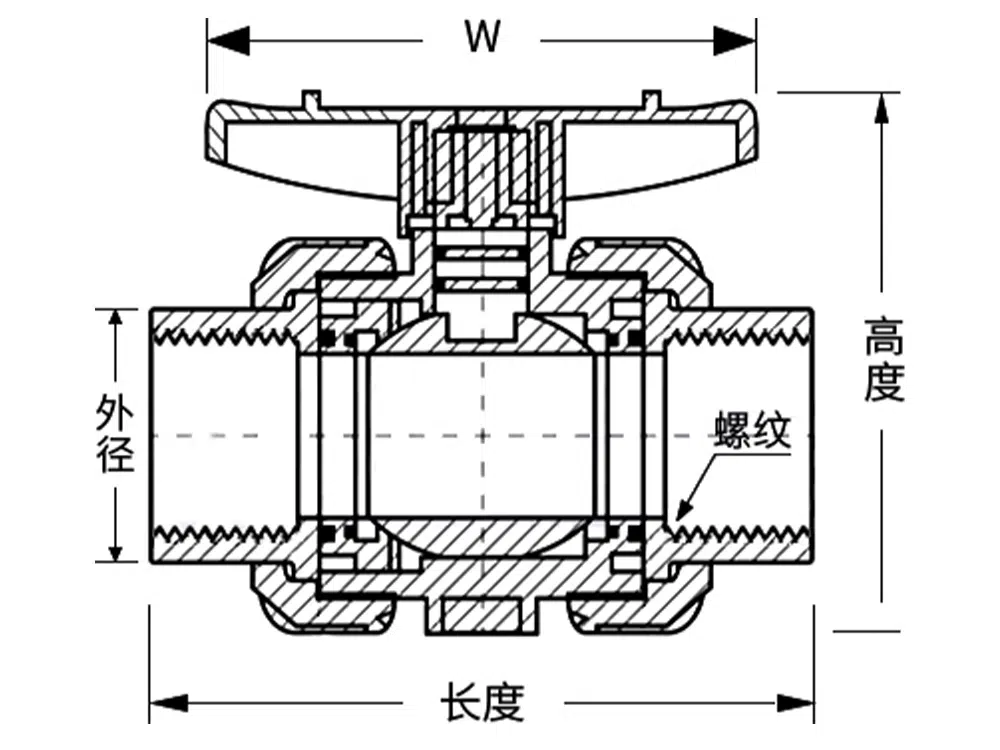

Product Size Reference
Nominal Diameter | whorl of fingerprint | inside diameter | lengths | high degree | W |
DN15 | 1/2 | 20 | 107 | 79 | 85 |
DN20 | 3/4 | 25 | 118 | 85 | 90 |
DN25 | 1 | 32 | 129 | 100 | 100 |
DN32 | 1-1/4 | 40 | 145 | 118 | 115 |
DN40 | 1-1/2 | 50 | 162 | 136 | 125 |
DN50 | 2 | 63 | 174 | 161 | 140 |
