Cast Steel Electric Flange Ball Valve Q941PPL-16C

Electric flange ball valve is a kind of rotary 90 ° rotary class ball valves, with excellent sealing performance, large flow capacity, flow resistance coefficient is small, simple structure, easy maintenance, long service life and so on. Its valve body channel and connecting pipe diameter is equal and into a diameter, the medium can flow through almost no loss, with electric actuators, the product is usually used for sealing the strict requirements of the occasion, in addition to the control of gases, liquids, steam media, but also suitable for controlling water containing fiber impurities in the medium. Widely used in petroleum, chemical industry, metallurgy, light industry, papermaking, power station, refrigeration and other fields of work.

Product Characteristics

• Fluid resistance is small, ball valves are one of the smaller fluid resistance of all valve types. Even the reduced diameter ball valve, its fluid resistance is quite small.
• Thrust shaft bearings reduce stem friction torque, allowing the stem to operate in a balanced and flexible manner for long periods of time.
• Good sealing performance of the valve seat, using PPL para-polyphenol and other materials made of seals, can withstand high temperatures of 200 ℃, the structure is easy to seal.
• Valve stem sealing is reliable, because the valve stem only rotates without lifting movement, the packing seal of the valve stem is not easy to destroy, and the sealing capacity increases with the pressure of the medium.
• Due to the good self-lubrication of materials such as PPL para-polyphenol, the friction loss with the ball is small, and the service life of the ball valve is longer.
• The downward-mounted stem and stem head boss prevent stem blowout, and if a fire destroys the stem seal, the boss forms a metal contact with the valve body to ensure stem sealing.

Product Parameters

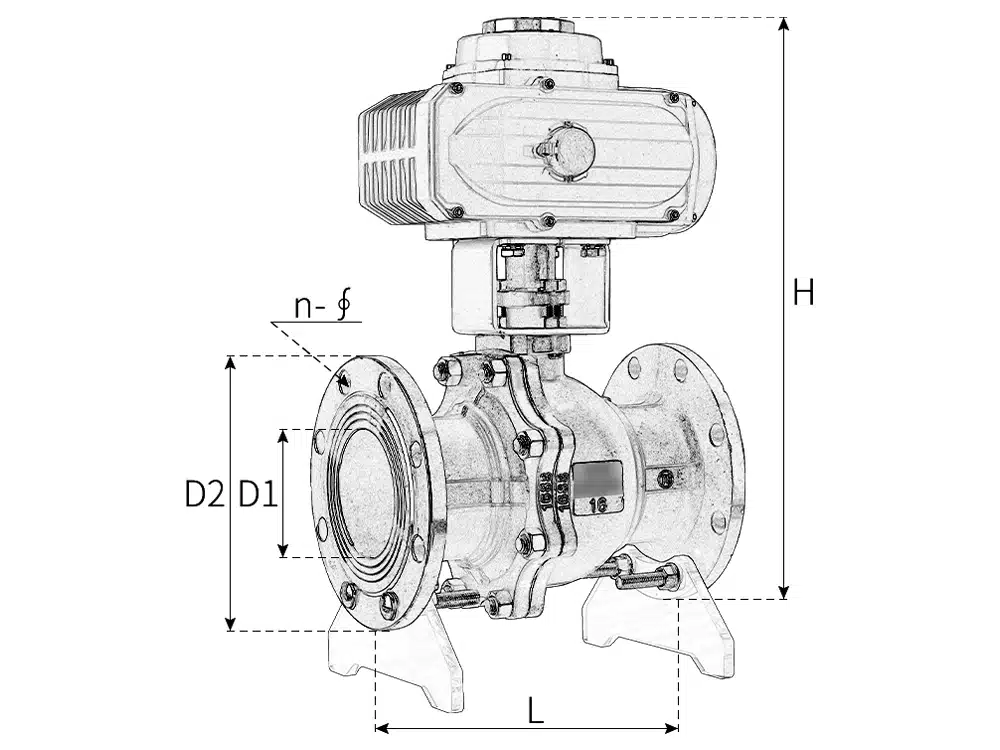

Product Size Reference
