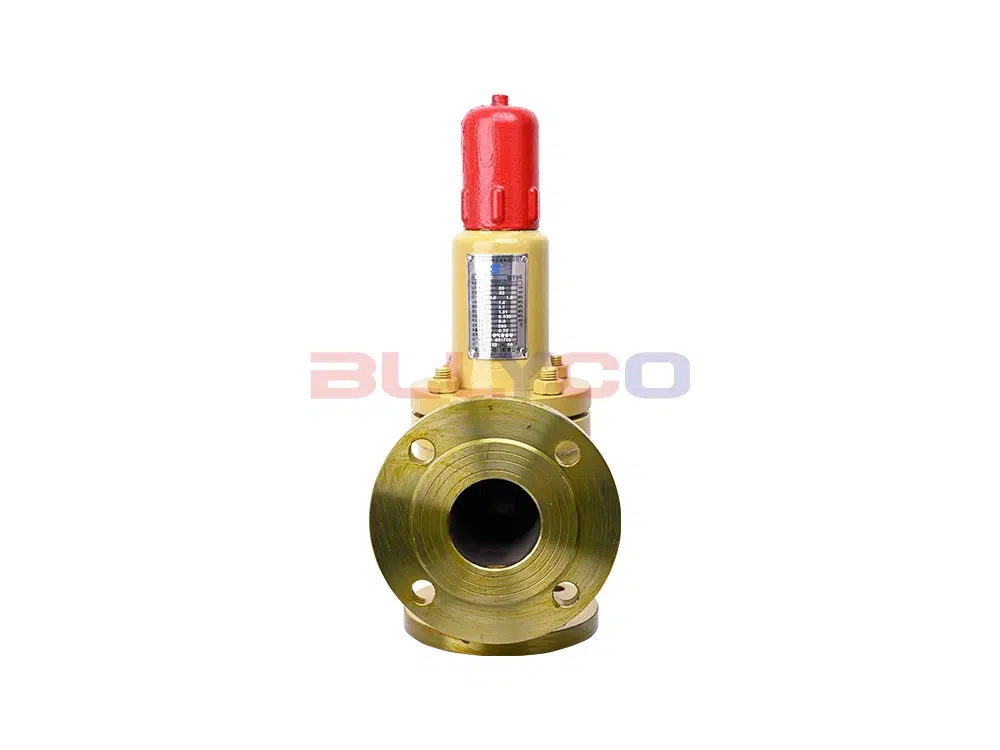

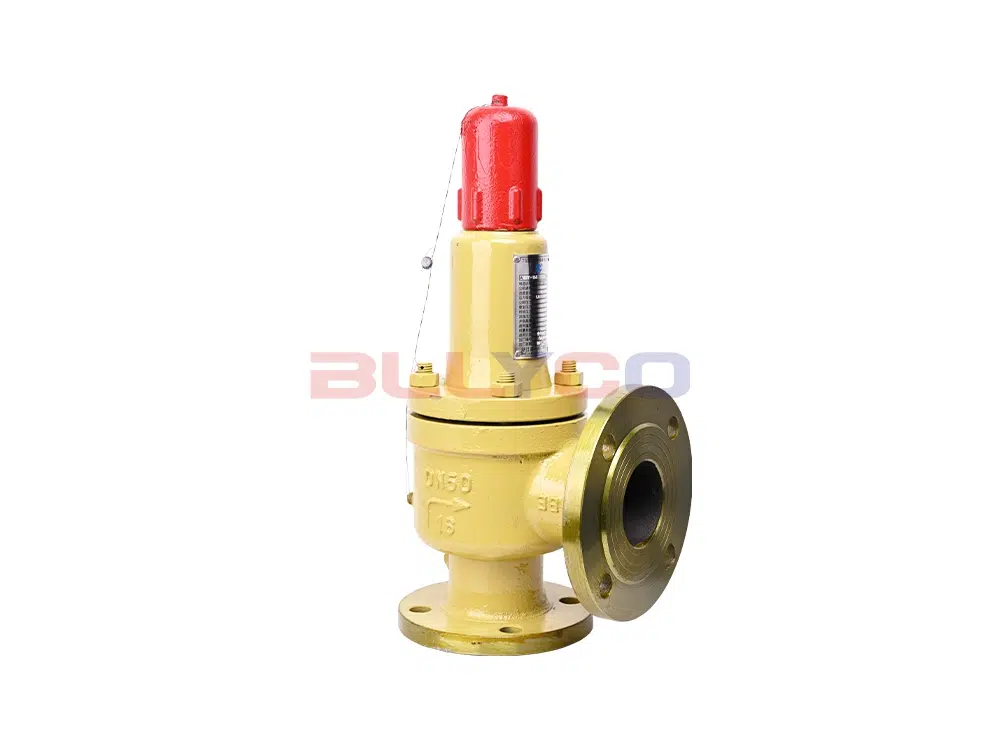

The AH42F Angle-Type Safety Return Valve is suitable for installation on the liquid phase return line at the outlet of liquefied petroleum gas tank pumps operating within a temperature range of -29 to 80°C. It is designed for the safe return of overpressurized media.
Working Principle
When the standard return pressure difference is more than 0.5MPa, the liquefied petroleum gas can be automatically returned to the tank.AH42F Angle liquid-phase safety return valve can be adjusted to the return pressure difference of 0.3~0.8MPa, or according to the requirements of the user to determine, when the pressure in front of the pump exceeds the specified value, the valve automatically opens and plays a role in the safety of the return to ensure the safety of the equipment and pipeline operation.
Product Parameters
Product Model | AH42F-16C |
Valve body material | Cast Steel |
Nominal pressure | ≤1.6Mpa |
Applicable medium | Liquefied Petroleum Gas and Similar Non-Corrosive Media |
Applicable temperature | -29 to 80°C |

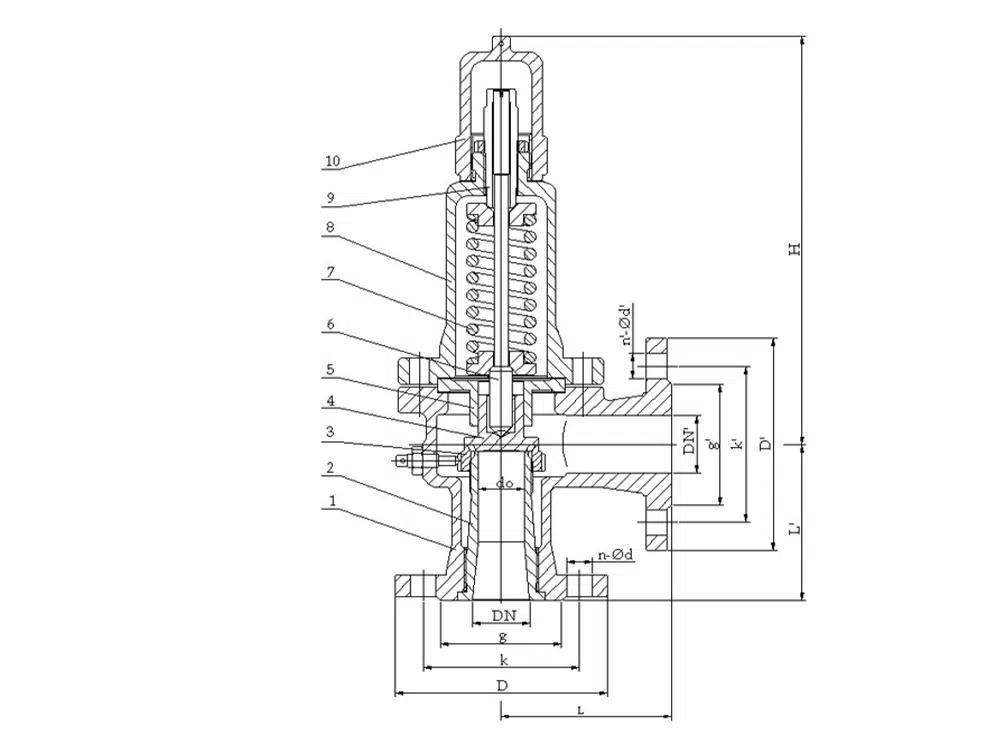

Product Size Reference
Nominal Diameter | do | DN | L | L1 | ≈H |
DN20 | 15 | 25 | 110 | 95 | 281 |
DN25 | 16 | 32 | 110 | 95 | 281 |
DN32 | 20 | 40 | 115 | 100 | 285 |
DN40 | 25 | 50 | 120 | 110 | 295 |
DN50 | 32 | 65 | 135 | 120 | 305 |
DN65 | 40 | 80 | 160 | 140 | 394 |
DN80 | 50 | 100 | 170 | 135 | 406 |
DN100 | 65 | 125 | 205 | 160 | 511 |
DN125 | 80 | 150 | 210 | 190 | 586 |
DN150 | 100 | 175 | 255 | 230 | 601 |
DN200 | 125 | 250 | 305 | 260 | 734 |
DN250 | 150 | 300 | 350 | 320 | 928 |
DN300 | 220 | 400 | 370 | 350 | 1159 |
DN350 | 250 | 500 | 500 | 450 | 1520 |
