D71F-16P handle clamped PTFE butterfly valve can be applied to food, medicine, chemical and other net pipeline and industrial environmental protection, water treatment, high-rise buildings, water supply and drainage pipelines for opening and closing or regulating the flow of media. The butterfly plate of PTFE butterfly valve is installed in the diameter direction of the pipeline. In the cylindrical channel of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis, the angle of rotation between 0 ° and 90 °, when rotated to 90 °, the valve is fully open.
Product Features
- Small and lightweight, easy to dismantle and maintain, and can be installed in any position.
- Simple and compact structure, quick opening and closing with 90° rotation.
- Low operating torque, labor-saving and lightweight.
- Flow characteristics tend to be straight, good regulation performance.
- The number of opening and closing tests is up to tens of thousands of times, with a long service life.
- Achieve complete sealing with zero gas test leakage.
Product Parameters
Product Model | D71F-16P |
Valve Body Material | 304 Stainless Steel |
Valve Plate Material | 304 Stainless Steel |
Rubber Lined Material | PTFE Polytetrafluoroethylene |
Nominal Pressure | ≤1.6Mpa |
Applicable Media | Water, Gas, Oil, etc. |
Operating Temperature | ≤150°C |

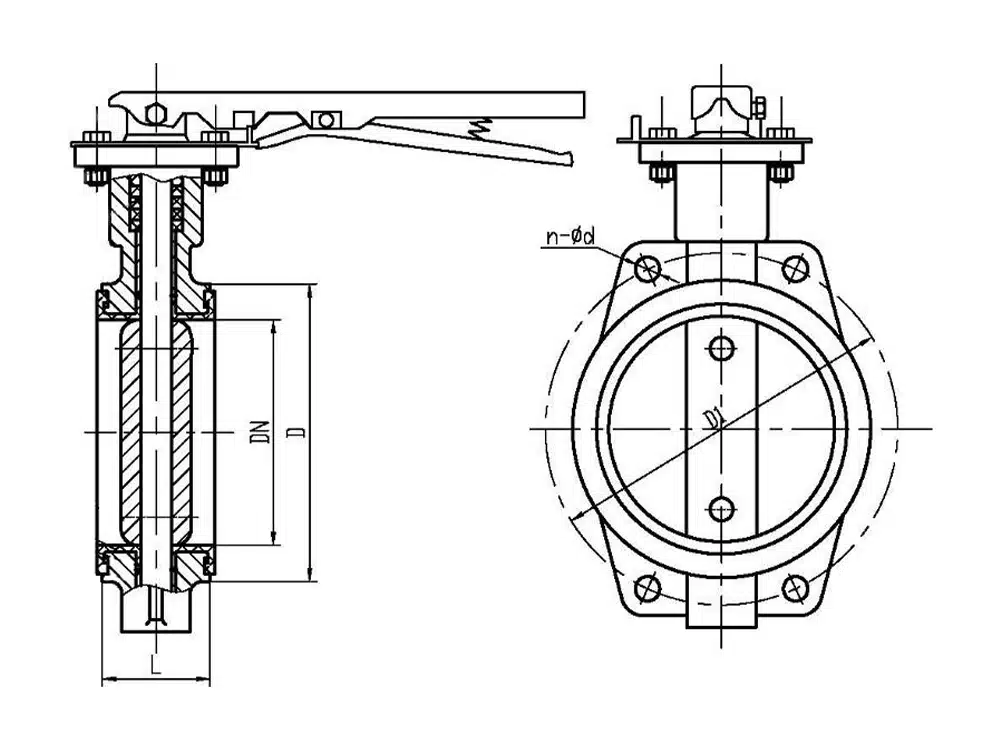

Product Size Reference
Nominal Diameter | L | D | D1 | n-Фd |
DN40 | 42 | 86 | 110 | 4-23 |
DN50 | 42 | 86 | 125 | 4-23 |
DN65 | 44.7 | 86 | 145 | 4-26.5 |
DN80 | 45.2 | 86 | 160 | 8-18 |
DN100 | 52.1 | 100 | 180 | 4-24.5 |
DN125 | 54.4 | 100 | 210 | 4-23 |
DN150 | 55.8 | 100 | 240 | 4-25 |
DN200 | 60.6 | 152 | 295 | 4-25 |
DN250 | 65.6 | 152 | 355 | 4-29 |
DN300 | 76.9 | 152 | 410 | 4-29 |
