2Q series vacuum air control valve is a kind of pneumatic valve, mainly used in industrial equipment to control the flow of gas or liquid. The valve body is made of 304 stainless steel and the oil seal is made of PTFE, which has good corrosion resistance and sealing. Its working medium includes air, water, oil and gas, and the action mode is direct-acting, which has simple structure, fast response speed and high reliability, and is suitable for working under vacuum, negative pressure, zero pressure and other environments. Widely used in various industrial automation control systems, especially in the need to control fluid flow.
Product Parameters
Product Model | 2Q Series |
Valve body material | 304 Stainless Steel |
Forms of control | Normally Open/Normally Closed |
Nominal pressure | ≤1.0Mpa |
Applicable medium | Water, Gas, Oil, etc. |
Applicable temperature | ≤80°C |

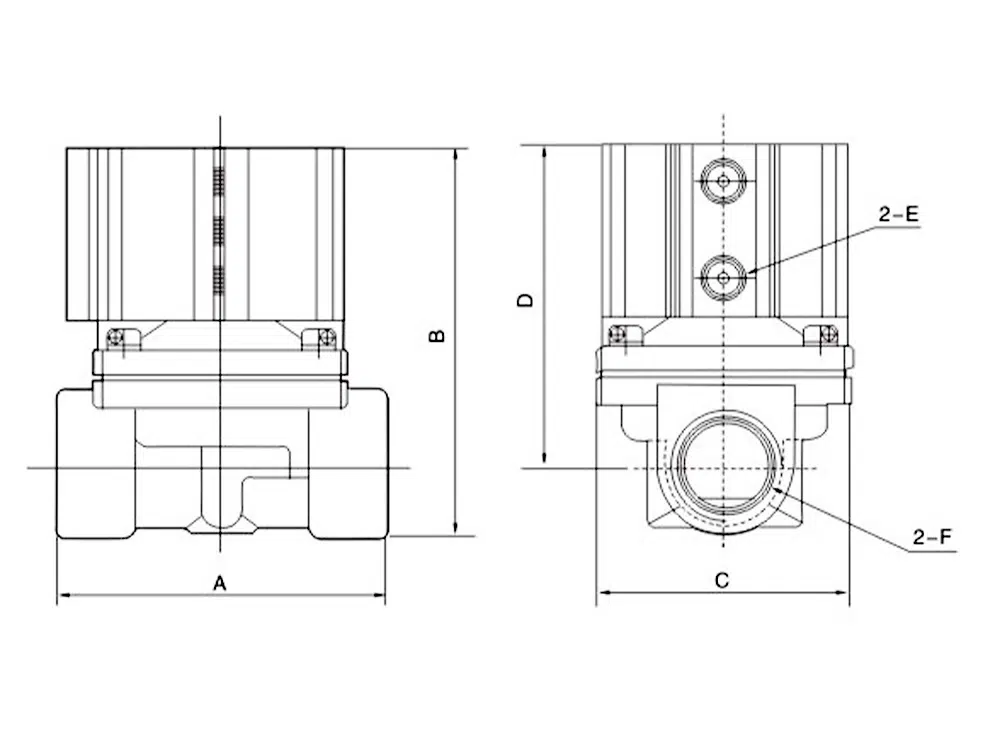

Product Size Reference
model number | A | B | C | D | E | F |
2Q160-15 | 63.5 | 84 | 54.5 | 75 | M5 | G1/2 |
2Q200-20 | 67 | 88.5 | 56 | 95 | G1/8 | G3/4 |
2Q250-25 | 88 | 96.5 | 76.5 | 95 | G1/8 | G1 |
2Q320-32 | 113 | 118 | 88 | 97 | G1/4 | G1-4 |
2Q400-40 | 112 | 128.5 | 92 | 116 | G1/4 | G1-1/2 |
2Q500-50 | 135 | 145 | 92 | 114 | G1/4 | G2 |
